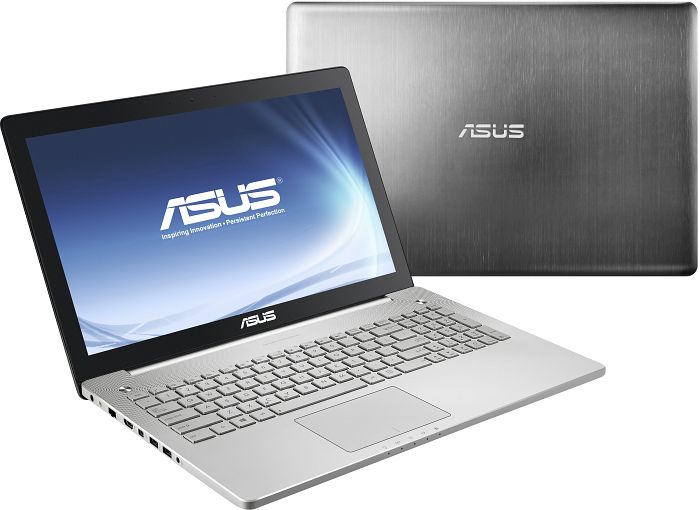

ASUS N550JK

Technické parametry

IPS LCD FullHD

8GB memory

Intel(R) Core(TM) i7-4700HQ CPU @ 2.40GHz

1TB hardisk

Identifikace pod Linuxem

BIOS Information
	Vendor: American Megatrends Inc.
	Version: N550JK.204
	Release Date: 01/23/2014
	Address: 0xF0000
	Runtime Size: 64 kB
	ROM Size: 6144 kB
	Characteristics:
		PCI is supported
		BIOS is upgradeable
		BIOS shadowing is allowed
		Boot from CD is supported
		Selectable boot is supported
		BIOS ROM is socketed
		EDD is supported
		5.25"/1.2 MB floppy services are supported (int 13h)
		3.5"/720 kB floppy services are supported (int 13h)
		3.5"/2.88 MB floppy services are supported (int 13h)
		Print screen service is supported (int 5h)
		8042 keyboard services are supported (int 9h)
		Serial services are supported (int 14h)
		Printer services are supported (int 17h)
		ACPI is supported
		USB legacy is supported
		Smart battery is supported
		BIOS boot specification is supported
		Targeted content distribution is supported
		UEFI is supported
	BIOS Revision: 4.6

Handle 0x0001, DMI type 1, 27 bytes
System Information
	Manufacturer: ASUSTeK COMPUTER INC.
	Product Name: N550JK
	Version: 1.0
	Serial Number: XXXXXXXXX
	UUID: XXXXX
	Wake-up Type: Power Switch
	SKU Number: ASUS-NotebookSKU
	Family: N


00:00.0 Host bridge: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor DRAM Controller (rev 06)
00:01.0 PCI bridge: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor PCI Express x16 Controller (rev 06)
00:02.0 VGA compatible controller: Intel Corporation 4th Gen Core Processor Integrated Graphics Controller (rev 06)
00:03.0 Audio device: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor HD Audio Controller (rev 06)
00:14.0 USB controller: Intel Corporation 8 Series/C220 Series Chipset Family USB xHCI (rev 05)
00:16.0 Communication controller: Intel Corporation 8 Series/C220 Series Chipset Family MEI Controller #1 (rev 04)
00:1a.0 USB controller: Intel Corporation 8 Series/C220 Series Chipset Family USB EHCI #2 (rev 05)
00:1b.0 Audio device: Intel Corporation 8 Series/C220 Series Chipset High Definition Audio Controller (rev 05)
00:1c.0 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #1 (rev d5)
00:1c.1 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #2 (rev d5)
00:1c.2 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #3 (rev d5)
00:1c.3 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #4 (rev d5)
00:1d.0 USB controller: Intel Corporation 8 Series/C220 Series Chipset Family USB EHCI #1 (rev 05)
00:1f.0 ISA bridge: Intel Corporation HM86 Express LPC Controller (rev 05)
00:1f.2 SATA controller: Intel Corporation 8 Series/C220 Series Chipset Family 6-port SATA Controller 1 [AHCI mode] (rev 05)
00:1f.3 SMBus: Intel Corporation 8 Series/C220 Series Chipset Family SMBus Controller (rev 05)
01:00.0 3D controller: NVIDIA Corporation Device 1391 (rev ff)
04:00.0 Network controller: Intel Corporation Wireless 7260 (rev 6b)
05:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 0c)

Postup zprovoznění pod Linuxem

V grub.cfg pridat do kernel parameters acpi_osi=""

Bumblebee na Fedora20 odskusane a funguje OK.

Inak vsetko funguje outofthebox, vratane suspendu a vsetkych multimedialnych klaves a podsvietenim klavesnice.

Poznámka

Najprv som myslel, ze vymenim interny disk za SSD z druheho laptopu, ale pouzity disk je tak rychly, ze to asi ani nebude potreba. (EDIT: tak disk som nakoniec vymenil (torx T5) a zistil som, ze stary disk bol hlavnym generatorom hluku, ktory vychadzal z laptopu. Myslel som si, ze je to chladic, ale ten je vcelku tichy ak je pocitac v klude.)

Paradny laptop co sa tyka HW, len skoda, ze nema 16:10 LCD, to by bol uplny ideal.

Klavesnica je v porovnani s ostatnymi modernymi klavesnicami nadpriemer (jednooky medzi slepymi kralom) clickpad je priemer, ale da sa to pouzivat

Pri normalnom zatazeni (web, hudba a pod) je laptop krasne chladny aj od spodku, takze nieje problem ho mat polozeny na nohach. Tento laptop odporucam vsetkym, co hladaju relativne tenky a lahky 15.6" stroj, ktory bude zaroven vykonny a ma kvalitny IPS displej.

Obrázky
