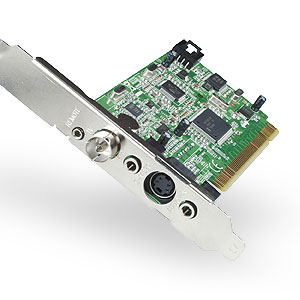

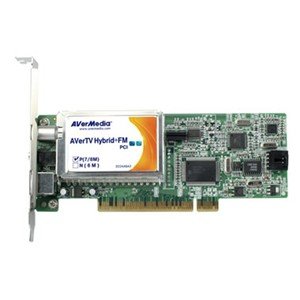

AverTV Hybrid+FM PCI A16D

Technické parametry

Hybridní tuner

Vstupy:

• TV anténa (75Ω)
• S-Video
• Kompozitní video (RCA) (přes dodávanou redukci na S-Video
• Sterero jack
• Senszor dálkového ovládání (mini-jack)
• FM anténa (mini-jack)

Chipset: Philips SAA7135HL
Analogový a FM tuner: Xceive XC3018

Digitální tuner: Zarlink MT352

Identifikace pod Linuxem

lspci -vvnn

03:07.0 Multimedia controller [0480]: Philips Semiconductors SAA7131/SAA7133/SAA7135 Video Broadcast Decoder [1131:7133] (rev d1)
	Subsystem: Avermedia Technologies Inc Hybrid+FM PCI (rev A16D) [1461:f936]
	Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
	Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium
	Latency: 32
	Interrupt: pin A routed to IRQ 21
	Region 0: Memory at fddff000 (32-bit, non-prefetchable) [size=2K]
	Capabilities: [40] Power Management version 2
		Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
		Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
	Kernel driver in use: saa7134
	Kernel modules: saa7134

dmesg

[   10.363428] saa7134 0000:03:07.0: PCI INT A -> GSI 21 (level, low) -> IRQ 21
[   10.363434] saa7133[0]: found at 0000:03:07.0, rev: 209, irq: 21, latency: 32, mmio: 0xfddff000
[   10.363439] saa7133[0]: subsystem: 1461:f936, board: AVerMedia Hybrid TV/Radio (A16D) [card=137,autodetected]
[   10.363477] saa7133[0]: board init: gpio is 2f200
[   10.364064] lirc_dev: IR Remote Control driver registered, major 249
[   10.365830] IR LIRC bridge handler initialized
[   10.379524] HDA Intel 0000:00:14.2: PCI INT A -> GSI 16 (level, low) -> IRQ 16
[   10.406127] usblp0: USB Bidirectional printer dev 2 if 1 alt 0 proto 2 vid 0x04A9 pid 0x1724
[   10.406141] usbcore: registered new interface driver usblp
[   10.430100] lp0: using parport0 (interrupt-driven).
[   10.440020] Registered IR keymap rc-avermedia-a16d
[   10.440082] input: saa7134 IR (AVerMedia Hybrid TV as /devices/pci0000:00/0000:00:14.4/0000:03:07.0/rc/rc0/input4
[   10.440112] rc0: saa7134 IR (AVerMedia Hybrid TV as /devices/pci0000:00/0000:00:14.4/0000:03:07.0/rc/rc0
[   10.468316] hda_codec: ALC889A: BIOS auto-probing.
[   10.480956] HDA Intel 0000:01:00.1: PCI INT B -> GSI 19 (level, low) -> IRQ 19
[   10.481012]   alloc irq_desc for 43 on node 0
[   10.481013]   alloc kstat_irqs on node 0
[   10.481022] HDA Intel 0000:01:00.1: irq 43 for MSI/MSI-X
[   10.481040] HDA Intel 0000:01:00.1: setting latency timer to 64
[   10.516845] fglrx: module license 'Proprietary. (C) 2002 - ATI Technologies, Starnberg, GERMANY' taints kernel.
[   10.516848] Disabling lock debugging due to kernel taint
[   10.545496] [fglrx] Maximum main memory to use for locked dma buffers: 3799 MBytes.
[   10.545648] [fglrx]   vendor: 1002 device: 9440 count: 1
[   10.545915] [fglrx] ioport: bar 4, base 0xee00, size: 0x100
[   10.545927] pci 0000:01:00.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[   10.545931] pci 0000:01:00.0: setting latency timer to 64
[   10.546115] [fglrx] Kernel PAT support is enabled
[   10.546131] [fglrx] module loaded - fglrx 8.82.8 [Jan 26 2011] with 1 minors
[   10.630019] saa7133[0]: i2c eeprom 00: 61 14 36 f9 00 00 00 00 00 00 00 00 00 00 00 00
[   10.630025] saa7133[0]: i2c eeprom 10: ff ff ff ff ff 20 ff ff ff ff ff ff ff ff ff ff
[   10.630029] saa7133[0]: i2c eeprom 20: 01 40 01 02 02 01 01 00 08 ff 00 0e ff ff ff ff
[   10.630034] saa7133[0]: i2c eeprom 30: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630038] saa7133[0]: i2c eeprom 40: ff 65 00 ff c2 1e ff ff ff ff ff ff ff ff ff ff
[   10.630042] saa7133[0]: i2c eeprom 50: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630046] saa7133[0]: i2c eeprom 60: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630050] saa7133[0]: i2c eeprom 70: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630055] saa7133[0]: i2c eeprom 80: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630059] saa7133[0]: i2c eeprom 90: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630063] saa7133[0]: i2c eeprom a0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630067] saa7133[0]: i2c eeprom b0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630071] saa7133[0]: i2c eeprom c0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630075] saa7133[0]: i2c eeprom d0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630080] saa7133[0]: i2c eeprom e0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.630084] saa7133[0]: i2c eeprom f0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
[   10.650051] tuner 0-0061: chip found @ 0xc2 (saa7133[0])
[   10.651144] xc2028 0-0061: creating new instance
[   10.651146] xc2028 0-0061: type set to XCeive xc2028/xc3028 tuner
[   10.701229] xc2028 0-0061: Error: firmware xc3028-v27.fw not found.
[   10.702027] xc2028 0-0061: Error: firmware xc3028-v27.fw not found.
[   10.702384] saa7133[0]: dsp access error
[   10.720069] saa7133[0]: registered device video0 [v4l2]
[   10.720087] saa7133[0]: registered device vbi0
[   10.720103] saa7133[0]: registered device radio0
[   10.723053] saa7134 ALSA driver for DMA sound loaded
[   10.723073] saa7133[0]/alsa: saa7133[0] at 0xfddff000 irq 21 registered as card -2
[   10.725943] xc2028 0-0061: Error: firmware xc3028-v27.fw not found.
[   10.726152] xc2028 0-0061: Error on line 1198: -5
[   10.727230] xc2028 0-0061: Error: firmware xc3028-v27.fw not found.
[   10.728204] xc2028 0-0061: Error: firmware xc3028-v27.fw not found.
[   10.728529] xc2028 0-0061: Error on line 1198: -5
[   10.757814] EXT4-fs (sda5): re-mounted. Opts: errors=remount-ro
[   10.809614] dvb_init() allocating 1 frontend
[   10.823826] xc2028 0-0061: attaching existing instance
[   10.823833] xc2028 0-0061: type set to XCeive xc2028/xc3028 tuner
[   10.823835] DVB: registering new adapter (saa7133[0])
[   10.823837] DVB: registering adapter 0 frontend 0 (Zarlink MT352 DVB-T)...

Postup zprovoznění pod Linuxem

Této karty jsou dva druhy:

• A16AR - měla by fungovat bez problému, má i oficiální binární ovladače, má stíněný tuner, dnes už se asi ani nedá sehnat
• A16D - v současné verzi kernelu je plně funkční, ale potřebuje firmware

Firmware

K získání firmware je potřeba skript extract_xc3028.pl, který je ve složce Documentation/video4linux zdrojáků jádra. Doporučuji stáhnout z GITu.

1. Označit extract_xc3028.pl jako spustitelný
   chmod +x extract_xc3028.pl
2. Stáhnout HVR-12x0-14x0-17x0_1_25_25271_WHQL.zip
   wget http://www.steventoth.net/linux/xc5000/HVR-12x0-14x0-17x0_1_25_25271_WHQL.zip
3. Rozbalit soubor Driver85/hcw85bda.sys ze staženého zipu
   unzip -j HVR-12x0-14x0-17x0_1_25_25271_WHQL.zip Driver85/hcw85bda.sys
4. Spustit skript extract_xc3028.pl
   ./extract_xc3028.pl
5. Zkopírovat vygenerovaný firmware do /lib/firmware (pod rootem)
   cp xc3028-v27.fw /lib/firmware



Digitální TV

Lze naladit například přes MPlayer následujícím způsobem :

• Nainstalujte balíky dvb-apps a mplayer.
• Pomocí následujícího příkazu vygenerujte konfigurační soubor pro mplayer, který následně nakopírujte do ~/.mplayer
  scan /usr/share/dvb/dvb-t/cz-All | tee channels.conf
• TV lze jednoduše sledovat přes příkaz
  mplayer "dvb://nazev_kanalu"

Analogová TV

Funguje analogová TV, FM rádio a dálkové ovládání.

Zvuk je potřeba prohánět přes sox
sox -c 2 -s -w -r 32000 -t alsa hw:1,0 -t alsa -w -r 32000 default



pouze MPlayer to umí i bez něj:
mplayer tv:// -vf pp=fd -tv driver=v4l2:alsa:adevice=hw.1,0:amode=1:audiorate=32000:forceaudio:volume=100:immediatemode=0



Poznámka
