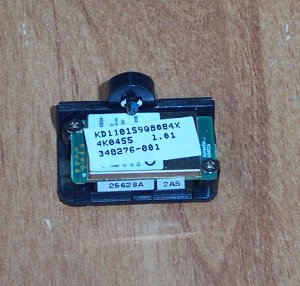

HP Compaq nc6000 Series Bluetooth Module

Podpora:	kompletní
Ovladač:	v jádře
Adresa ovladače:	Bluez

Technické parametry

 Zdroj: http://h18000.www1.hp.com/products/quickspecs/11794_na/11794_na.HTML  Bluetooth by HP

`Name`	`HP Integrated module with Bluetooth wireless technology`
`Bluetooth Specification`	`1.2 Compliant`
`Dimensions`	`1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm)`
`Frequency Band`	`2402 to 2480 MHz`
`Number of available channels`	`79 (1 MHz) available channels`
`Data Rates and throughput`	`1 Mbps data rate; throughput up to 720 Kbps`
	`Synchronous Connection Oriented links up to 3, 64 kbps, voice channels`
	`Asynchronous Connection Less links 723.2 kbps/57.6 kbps asymmetric or 433.9 kbps symmetric`
`Transmit Power`	`-6 dBm to 4 dBm (Bluetooth Class II)`
`Receiver Sensitivity`	`Better than -80 dBM at 0.1 % raw bit error rate`
`Power Consumption`	`Peak (Tx) 264 mW`
	`Peak (Rx) 231 mW`
	`Sleep <1 mW`
`Antenna`	`Internally integrated within module`
`Range`	`Up 33 ft (10 m)`
`Electrical Interface`	`USB 1.1 compliant`
	`Microsoft Windows Plug and Play compliant`
`OS Support`	`Microsoft Windows XP Professional and Home`
	`Microsoft Windows 2000`
`Bluetooth Software Supported`	`Widcomm Bluetooth for Windows`
	`Microsoft Windows XP Bluetooth Software`
`Link Topology`	`Point to Point, Multipoint Pico Nets up to 7 slaves`
`Security`	`Full support of Bluetooth Security Provisions`
`Power Management`	`Microsoft Windows ACPI, and USB Bus Support`
	`Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff`
`Certifications`	`All necessary regulatory approvals for supported countries, including:`
	`FCC (47 CFR) Part 15C, Section 15.247 & 15.249`
	`ETS 300 328, ETS 300 826`
	`Low Voltage Directive IEC950`
	`UL, CSA, and CE Mark`
`Temperature`	`Operating`	`-4° to 158° F (-20° to 70° C)`
	`Non-operating`	`-40° to 176° F (-40° to 80° C)`
`Humidity`	`Operating`	`10% to 90%`
	`Non-operating`	`5% to 95%`
`Altitude`	`Operating`	`15,000 ft (4,572 m)`
	`Non-operating`	`40,000 ft (12,192 m)`
`Bluetooth Profiles Supported`	`(with Bluetooth for Windows 4.0 software)`
	`Serial Port Profile (SPP)*`
	`Dial-Up Networking (DUN)*`
	`Generic Object Exchange Profile (GOEP)`
	`Object Push Profile (OPP)*`
	`File Transfer Profile (FTP)`
	`Synchronization Profile (SYNC)`
	`Hard Copy Cable Replacement (HCRP)*`
	`Personal Area Networking Profile (PAN)*`
	`Human Interface Device Profile (HID)*`
	`FAX Profile (FAX)`
	`Basic Imaging Profile (BIP)`
	`Headset Profile (HSP)`
	`Hands Free Profile (HFP)`
	`Advanced Audio Distribution Profile (A2DP)`

Identifikace pod Linuxem

root# hciconfig -a hci0
hci0:   Type: USB
        BD Address: 00:20:E0:46:56:1F ACL MTU: 192:8 SCO MTU: 64:8
        UP RUNNING
        RX bytes:625 acl:0 sco:0 events:14 errors:0
        TX bytes:44 acl:0 sco:0 commands:13 errors:0
        Features: 0xff 0xff 0x0f 0x00 0x00 0x00 0x00 0x00
        Packet type: DM1 DM3 DM5 DH1 DH3 DH5 HV1 HV2 HV3
        Link policy:
        Link mode: SLAVE ACCEPT
        Name: 'TEST'
        Class: 0x000000
        Service Classes: Unspecified
        Device Class: Miscellaneous,
        HCI Ver: 1.1 (0x1) HCI Rev: 0x322 LMP Ver: 1.1 (0x1) LMP Subver: 0x322
        Manufacturer: Cambridge Silicon Radio (10)

root# hciconfig hci0 revision
hci0:   Type: USB
        BD Address: 00:20:E0:46:56:1F ACL MTU: 192:8 SCO MTU: 64:8
        Build 802
        Chip version: BlueCore02-External
        Max key size: 128 bit
        SCO mapping: HCI

root# lsusb -c 049f:0086
Bus 004 Device 006: ID 049f:0086 Compaq Computer Corp. Bluetooth Device
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               1.10
  bDeviceClass          224 Wireless
  bDeviceSubClass         1 Radio Frequency
  bDeviceProtocol         1 Bluetooth
  bMaxPacketSize0        64
  idVendor           0x049f Compaq Computer Corp.
  idProduct          0x0086 Bluetooth Device
  bcdDevice            8.02
  iManufacturer           1 ACTIONTEC
  iProduct                2 Bluetooth by hp
  iSerial                 0
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength          193
    bNumInterfaces          3
    bConfigurationValue     1
    iConfiguration          0
    bmAttributes         0xe0
      Self Powered
      Remote Wakeup
    MaxPower               90mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           3
      bInterfaceClass       224 Wireless
      bInterfaceSubClass      1 Radio Frequency
      bInterfaceProtocol      1 Bluetooth
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0010  1x 16 bytes
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x02  EP 2 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x82  EP 2 IN
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       0
      bNumEndpoints           2
      bInterfaceClass       224 Wireless
      bInterfaceSubClass      1 Radio Frequency
      bInterfaceProtocol      1 Bluetooth
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0000  1x 0 bytes
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0000  1x 0 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       1
      bNumEndpoints           2
      bInterfaceClass       224 Wireless
      bInterfaceSubClass      1 Radio Frequency
      bInterfaceProtocol      1 Bluetooth
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0009  1x 9 bytes
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0009  1x 9 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       2
      bNumEndpoints           2
      bInterfaceClass       224 Wireless
      bInterfaceSubClass      1 Radio Frequency
      bInterfaceProtocol      1 Bluetooth
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0011  1x 17 bytes
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0011  1x 17 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       3
      bNumEndpoints           2
      bInterfaceClass       224 Wireless
      bInterfaceSubClass      1 Radio Frequency
      bInterfaceProtocol      1 Bluetooth
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0019  1x 25 bytes

        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0019  1x 25 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       4
      bNumEndpoints           2
      bInterfaceClass       224 Wireless
      bInterfaceSubClass      1 Radio Frequency
      bInterfaceProtocol      1 Bluetooth
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0021  1x 33 bytes
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0021  1x 33 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       5
      bNumEndpoints           2
      bInterfaceClass       224 Wireless
      bInterfaceSubClass      1 Radio Frequency
      bInterfaceProtocol      1 Bluetooth
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0031  1x 49 bytes
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0031  1x 49 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        2
      bAlternateSetting       0
      bNumEndpoints           0
      bInterfaceClass       254 Application Specific Interface
      bInterfaceSubClass      1 Device Firmware Update
      bInterfaceProtocol      0
      iInterface              0
      ** UNRECOGNIZED:  07 21 07 88 13 ff 03
Device Status:     0x0001
  Self Powered

Postup zprovoznění pod Linuxem

bluez

Poznámka

Pomoci bccmd lze USB Vendor Id lze zmenit na 0a12 a karta stale funguje.
Zmena zpet na 049f pravdepodobne neni mozna.

Obrázky

Dokument vytvořil: Michal Ambroz, 20.3.2009 01:44 | Poslední úprava: Michal Ambroz, 27.2.2011 15:09 | Historie změn | Zobrazeno: 1893×

Tiskni Sdílej:
