MSI BToes (MS-6970)

Podpora:	kompletní
Ovladač:	v jádře

Technické parametry

USB 1.1, GFSK, BT=0.5, FHSS, 79 kanalu, BlueTooth dosah cca 30m (Bluetooth Power Class 2, max +6dBm). Bluetooth HCI 1.1, Bluetooth LMP 1.1

Velmi maly USB adapter s modrou LED. Uvnitr chip CSR (Cambridge Silicon Radio)

http://www.msi.com.tw/program/products/communication/cmu/pro_cmu_detail.php?UID=449

Identifikace pod Linuxem

/dev/proc/bus/usb/devices:
T:  Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  2 Spd=12  MxCh= 0
D:  Ver= 1.10 Cls=e0(unk. ) Sub=01 Prot=01 MxPS=64 #Cfgs=  1
P:  Vendor=0db0 ProdID=6970 Rev= 5.25
C:* #Ifs= 3 Cfg#= 1 Atr=80 MxPwr=100mA
I:  If#= 0 Alt= 0 #EPs= 3 Cls=e0(unk. ) Sub=01 Prot=01 Driver=hci_usb
E:  Ad=81(I) Atr=03(Int.) MxPS=  16 Ivl=1ms
E:  Ad=02(O) Atr=02(Bulk) MxPS=  64 Ivl=0ms
E:  Ad=82(I) Atr=02(Bulk) MxPS=  64 Ivl=0ms
I:  If#= 1 Alt= 0 #EPs= 2 Cls=e0(unk. ) Sub=01 Prot=01 Driver=hci_usb
E:  Ad=03(O) Atr=01(Isoc) MxPS=   0 Ivl=1ms
E:  Ad=83(I) Atr=01(Isoc) MxPS=   0 Ivl=1ms
I:  If#= 1 Alt= 1 #EPs= 2 Cls=e0(unk. ) Sub=01 Prot=01 Driver=hci_usb
E:  Ad=03(O) Atr=01(Isoc) MxPS=   9 Ivl=1ms
E:  Ad=83(I) Atr=01(Isoc) MxPS=   9 Ivl=1ms
I:  If#= 1 Alt= 2 #EPs= 2 Cls=e0(unk. ) Sub=01 Prot=01 Driver=hci_usb
E:  Ad=03(O) Atr=01(Isoc) MxPS=  17 Ivl=1ms
E:  Ad=83(I) Atr=01(Isoc) MxPS=  17 Ivl=1ms
I:  If#= 1 Alt= 3 #EPs= 2 Cls=e0(unk. ) Sub=01 Prot=01 Driver=hci_usb
E:  Ad=03(O) Atr=01(Isoc) MxPS=  25 Ivl=1ms
E:  Ad=83(I) Atr=01(Isoc) MxPS=  25 Ivl=1ms
I:  If#= 1 Alt= 4 #EPs= 2 Cls=e0(unk. ) Sub=01 Prot=01 Driver=hci_usb
E:  Ad=03(O) Atr=01(Isoc) MxPS=  33 Ivl=1ms
E:  Ad=83(I) Atr=01(Isoc) MxPS=  33 Ivl=1ms
I:  If#= 1 Alt= 5 #EPs= 2 Cls=e0(unk. ) Sub=01 Prot=01 Driver=hci_usb
E:  Ad=03(O) Atr=01(Isoc) MxPS=  49 Ivl=1ms
E:  Ad=83(I) Atr=01(Isoc) MxPS=  49 Ivl=1ms
I:  If#= 2 Alt= 0 #EPs= 0 Cls=fe(app. ) Sub=01 Prot=00 Driver=(none)

#lsusb:
Bus 001 Device 002: ID 0db0:6970 Micro Star International
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               1.10
  bDeviceClass          224
  bDeviceSubClass         1
  bDeviceProtocol         1
  bMaxPacketSize0        64
  idVendor           0x0db0 Micro Star International
  idProduct          0x6970
  bcdDevice            5.25
  iManufacturer           0
  iProduct                0
  iSerial                 0
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength          193
    bNumInterfaces          3
    bConfigurationValue     1
    iConfiguration          0
    bmAttributes         0x80
    MaxPower              100mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           3
      bInterfaceClass       224
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               none
        wMaxPacketSize         16
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x02  EP 2 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               none
        wMaxPacketSize         64
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x82  EP 2 IN
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               none
        wMaxPacketSize         64
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       0
      bNumEndpoints           2
      bInterfaceClass       224
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize          0
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize          0
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       1
      bNumEndpoints           2
      bInterfaceClass       224
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize          9
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize          9
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       2
      bNumEndpoints           2
      bInterfaceClass       224
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize         17
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize         17
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       3
      bNumEndpoints           2
      bInterfaceClass       224
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize         25
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize         25
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       4
      bNumEndpoints           2
      bInterfaceClass       224
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize         33
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize         33
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       5
      bNumEndpoints           2
      bInterfaceClass       224
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x03  EP 3 OUT
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize         49
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               none
        wMaxPacketSize         49
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        2
      bAlternateSetting       0
      bNumEndpoints           0
      bInterfaceClass       254
      bInterfaceSubClass      1
      bInterfaceProtocol      0
      iInterface              0
  unknown descriptor type: 07 21 07 88 13 ff 03
  Language IDs: (length=4)
     0409 English(US)

Postup zprovoznění pod Linuxem

Pouzil jsem BlueZ BlueTooth stack. Kernel 2.4.23 jej jiz obsahuje. Dale je treba BlueZ utility (hciconfig, rfcomm, hcitool, hcid, atd).

Moduly: bluez, hci_usb, rfcomm, l2cap

spustit daemon hcid (/etc/init.d/bluetooth start v MDK)

#hciconfig - vypise BT konfiguraci HW, analogie ifconfig
#l2ping  BD - ping na BT zarizeni s adresou BD
#hcitool inq - hledani jinych BT zarizeni
#hcitool scan - trosku jine hledani
#hcitool info - vypis informaci o BT zarizeni
#rfcomm bind 0 BD - vytvori BT seriovy port se zarizenim s adresou BD.
BT seriovy port se pak v MDK naleza na /dev/bluetooth/rfcomm/0
konfigurace je v adresari /etc/bluetooth

Pokud chcete mit BT mobil jako /dev/modem, provedete: ln -s /dev/bluetooth/rfcomm/0 /dev/modem

Vice o BT v Linuxu zde: http://www.bluez.org/

Poznámka

Testovano s MDK 9.1, kernel 2.4.21mdk. Z contrib jsem stahnul potrebne BlueZ utility (rpm balicky). Bohuzel, skripty jsou spatne, musel jsem je modifikovat aby jsem adapter rozchodil. MDK9.2 je snad jiz funkcni bez uprav.

Testovano s Nokia 6310i. (http://www.hut.fi/u/kehannin/bluetooth/bluetooth.html)

PS: Mozna ze jsem mel jen smulu, ale na dodanem CD nebyl manual ani ovladace pro windows, musel jsem je stahnout z internetu (bluetooth.exe). CD melo spravny potisk ale naprosto nepatricny obsah. To je jedina vytka kterou proti tomuto hw zatim mam.

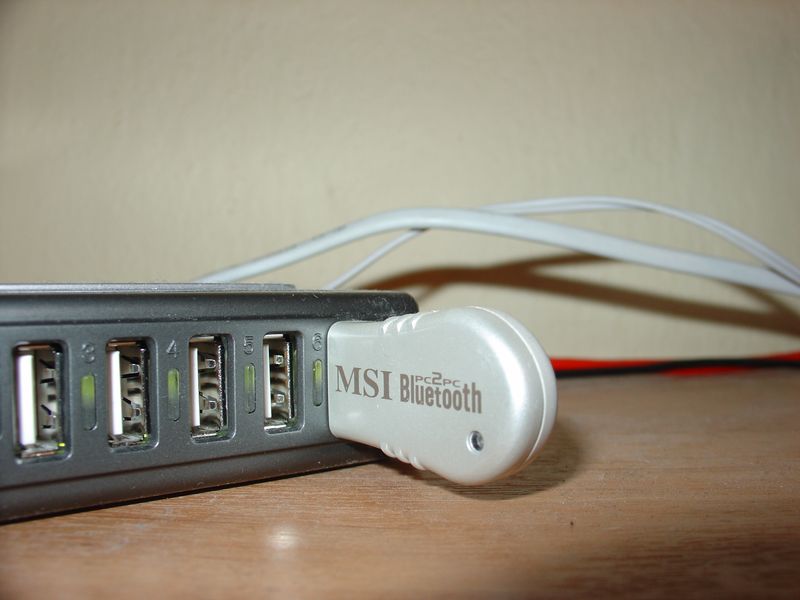

Obrázky

Dokument vytvořil: Petr Slansky, 3.12.2003 19:49 | Poslední úprava: jose17, 27.2.2011 15:09 | Další přispěvatelé: Jirka | Historie změn | Zobrazeno: 3298×
