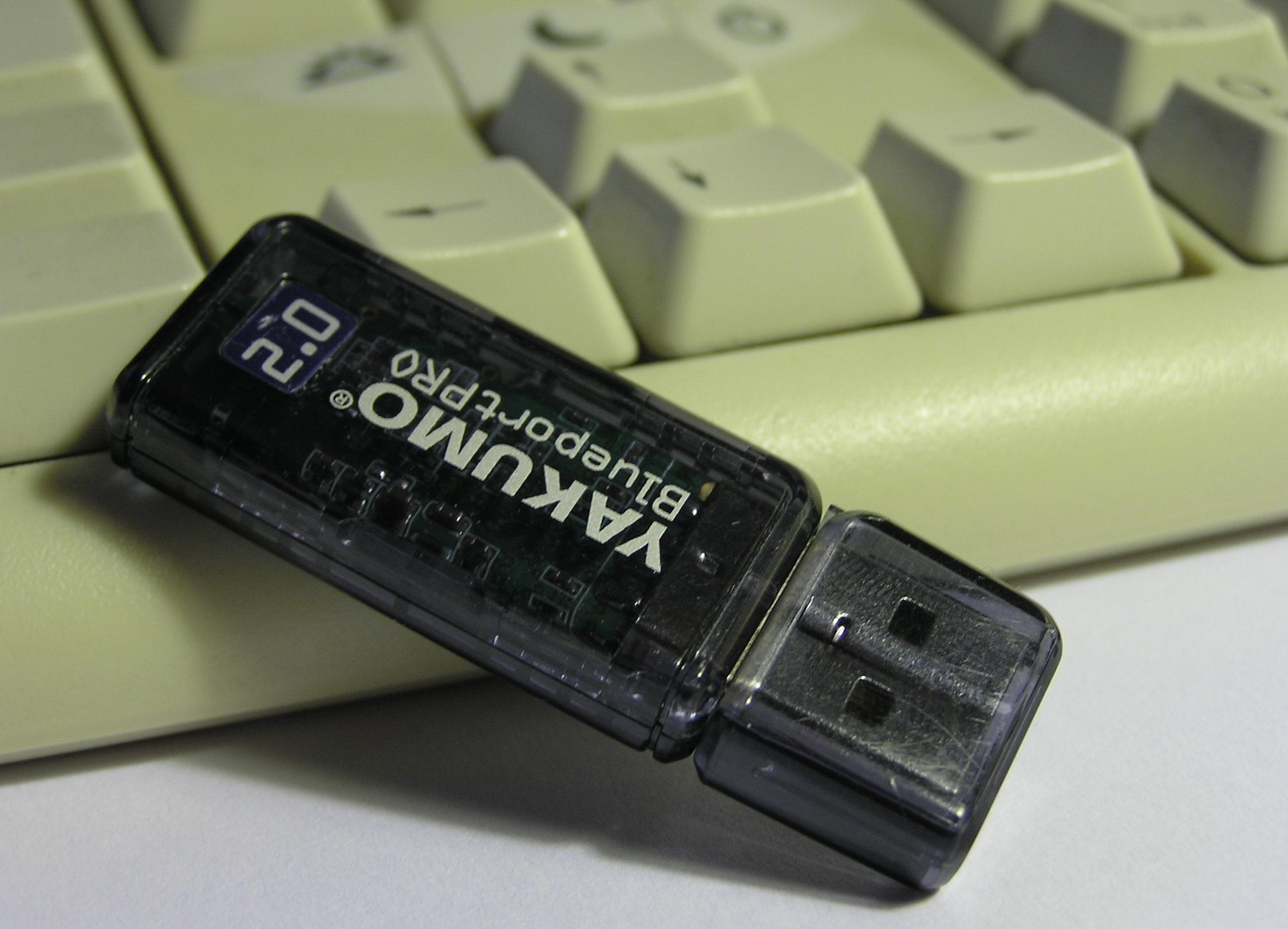

Yakumo Blueport Class 1

Podpora:	kompletní
Ovladač:	v jádře

Technické parametry

BCM92045DG Non-UHE
Výrobce:Broadcom Corp
Třída 224 (Wireless)
Verze USB 2.00
ID dodavatele 0xa5c (Broadcom Corp.)
ID produktu 0x2101
Rychlost 12 Mbit/s

Identifikace pod Linuxem

hciconfig -a

hci0:   Type: USB
        BD Address: 00:02:72:CB:F9:11 ACL MTU: 1017:8 SCO MTU: 64:0
        UP RUNNING PSCAN ISCAN
        RX bytes:124065 acl:581 sco:0 events:503 errors:0
        TX bytes:24649 acl:413 sco:0 commands:319 errors:0
        Features: 0xff 0xff 0x8d 0xfe 0x9b 0xf9 0x00 0x80
        Packet type: DM1 DM3 DM5 DH1 DH3 DH5 HV1 HV2 HV3
        Link policy:
        Link mode: SLAVE ACCEPT
        Name: 'BCM92045DG_Class1'
        Class: 0x000000
        Service Classes: Unspecified
        Device Class: Miscellaneous,
        HCI Ver: 2.0 (0x3) HCI Rev: 0x200a LMP Ver: 2.0 (0x3) LMP Subver: 0x4127
        Manufacturer: Broadcom Corporation (15)

lsusb -v

Bus 001 Device 002: ID 0a5c:2101 Broadcom Corp.
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               2.00
  bDeviceClass          224 Wireless
  bDeviceSubClass         1 Radio Frequency
  bDeviceProtocol         1 Bluetooth
  bMaxPacketSize0        64
  idVendor           0x0a5c Broadcom Corp.
  idProduct          0x2101
  bcdDevice            0.00
  iManufacturer           1 Broadcom Corp
  iProduct                2 BCM92045DG Non-UHE
  iSerial                 0
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength          216
    bNumInterfaces          4
    bConfigurationValue     1
    iConfiguration          0
    bmAttributes         0xa0
      Remote Wakeup
    MaxPower              100mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           3
      bInterfaceClass       224 Wireless
      bInterfaceSubClass      1 Radio Frequency
      bInterfaceProtocol      1 Bluetooth
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0010  1x 16 bytes
        bInterval               1
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x82  EP 2 IN
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               1
etc...

Postup zprovoznění pod Linuxem

Instalace balíčků: hci_usb, bluez-utils, bluez-pin, bluez-utils-cups, bluez-bluefw, l2ping
Jako root:modprobe hci_usb && hciconfig hci0 up
Integrace v KDE: kdebluetooth
Postup zprovoznení.

Poznámka

Universální Blue Tooth s dosahem až 100 metrů.

Obrázky
