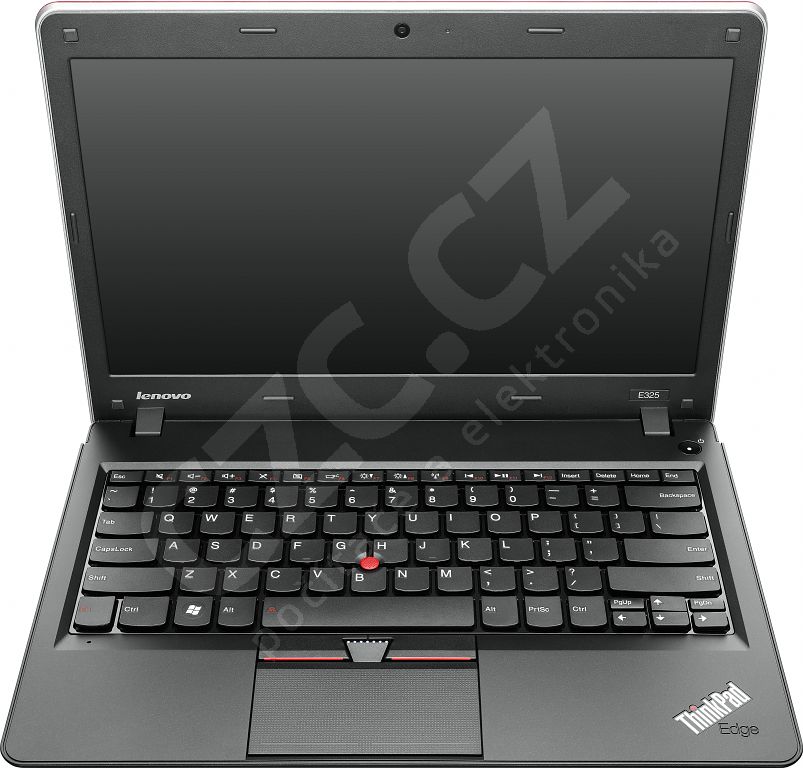

Lenovo ThinkPad Edge E325

Technické parametry

• LCD 13,3" 1366×768
• AMD E-450 (2×1.65 GHz)
• AMD Radeon HD 6320 (508/600MHz)
• 4GB DDR3
• 500GB HDD
• 2×USB (1× 3.0)
• 1×eSATA
• VGA, HDMI
• čtečka karet SD, MS
• WiFi, BT, kamera

Identifikace pod Linuxem

00:00.0 Host bridge: Advanced Micro Devices [AMD] Family 14h Processor Root Complex
00:01.0 VGA compatible controller: ATI Technologies Inc Device 9806
00:01.1 Audio device: ATI Technologies Inc Wrestler HDMI Audio [Radeon HD 6250/6310]
00:05.0 PCI bridge: Advanced Micro Devices [AMD] Family 14h Processor Root Port
00:06.0 PCI bridge: Advanced Micro Devices [AMD] Family 14h Processor Root Port
00:07.0 PCI bridge: Advanced Micro Devices [AMD] Family 14h Processor Root Port
00:11.0 SATA controller: ATI Technologies Inc SB7x0/SB8x0/SB9x0 SATA Controller [AHCI mode]
00:12.0 USB Controller: ATI Technologies Inc SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
00:12.2 USB Controller: ATI Technologies Inc SB7x0/SB8x0/SB9x0 USB EHCI Controller
00:13.0 USB Controller: ATI Technologies Inc SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
00:13.2 USB Controller: ATI Technologies Inc SB7x0/SB8x0/SB9x0 USB EHCI Controller
00:14.0 SMBus: ATI Technologies Inc SBx00 SMBus Controller (rev 42)
00:14.2 Audio device: ATI Technologies Inc SBx00 Azalia (Intel HDA) (rev 40)
00:14.3 ISA bridge: ATI Technologies Inc SB7x0/SB8x0/SB9x0 LPC host controller (rev 40)
00:14.4 PCI bridge: ATI Technologies Inc SBx00 PCI to PCI Bridge (rev 40)
00:18.0 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 0 (rev 43)
00:18.1 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 1
00:18.2 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 2
00:18.3 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 3
00:18.4 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 4
00:18.5 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 6
00:18.6 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 5
00:18.7 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 7
01:00.0 Network controller: Realtek Semiconductor Co., Ltd. RTL8188CE 802.11b/g/n WiFi Adapter (rev 01)
02:00.0 Ethernet controller: Atheros Communications AR8151 v2.0 Gigabit Ethernet (rev c0)
03:00.0 Unassigned class [ff00]: Realtek Semiconductor Co., Ltd. RTS5116 PCI Express Card Reader (rev 01)

linux-nh4p.site
 description: Notebook
 product: 12973GG ()
 vendor: LENOVO
 version: ThinkPad Edge E325
 serial: LR6CFP5
 width: 64 bits
 capabilities: smbios-2.6 dmi-2.6 vsyscall32
 configuration: boot=normal chassis=notebook family=ThinkPad Edge E325 uuid=01572D33-7B50-CB11-A0BB-C018A4FE9AC4
 *-core
 description: Motherboard
 product: 12973GG
 vendor: LENOVO
 physical id: 0
 version: Not Available
 serial: 1ZK9U1BJ0CF
 slot: Not Available
 *-firmware
 description: BIOS
 vendor: LENOVO
 physical id: 0
 version: 8SET32WW (1.14 )
 date: 09/26/2011
 size: 128KiB
 capacity: 1984KiB
 capabilities: pci pnp upgrade shadowing cdboot bootselect edd int13floppy720 int5printscreen int9keyboard int14serial int17printer int10video acpi usb biosbootspecification
 *-cpu
 description: CPU
 product: AMD E-450 APU with Radeon(tm) HD Graphics
 vendor: Advanced Micro Devices [AMD]
 physical id: 2e
 bus info: cpu@0
 version: AMD E-450 APU with Radeon(tm) HD Graphics
 slot: Socket FT1
 size: 1650MHz
 capacity: 1650MHz
 width: 64 bits
 clock: 100MHz
 capabilities: x86-64 fpu fpu_exception wp vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp constant_tsc rep_good nopl nonstop_tsc extd_apicid aperfmperf pni monitor ssse3 cx16 popcnt lahf_lm cmp_legacy svm extapic cr8_legacy abm sse4a misalignsse 3dnowprefetch ibs skinit wdt arat npt lbrv svm_lock nrip_save pausefilter cpufreq
 configuration: cores=2 enabledcores=2 threads=2
 *-cache:0
 description: L1 cache
 physical id: 2f
 slot: L1 Cache
 size: 128KiB
 capacity: 128KiB
 clock: 1GHz (1.0ns)
 capabilities: pipeline-burst internal write-back unified
 *-cache:1
 description: L2 cache
 physical id: 30
 slot: L2 Cache
 size: 1MiB
 capacity: 1MiB
 clock: 1GHz (1.0ns)
 capabilities: pipeline-burst internal write-back unified
 *-memory
 description: System Memory
 physical id: 31
 slot: System board or motherboard
 size: 4GiB
 *-bank
 description: SODIMM DDR3 Synchronous 1333 MHz (0,8 ns)
 product: 4D34373142353237
 vendor: Samsung
 physical id: 0
 serial: B23D65BD
 slot: J400
 size: 4GiB
 width: 64 bits
 clock: 1333MHz (0.8ns)
 *-pci:0
 description: Host bridge
 product: Family 14h Processor Root Complex
 vendor: Advanced Micro Devices [AMD]
 physical id: 100
 bus info: pci@0000:00:00.0
 version: 00
 width: 32 bits
 clock: 66MHz
 configuration: latency=64
 *-display
 description: VGA compatible controller
 product: Wrestler [Radeon HD 6320]
 vendor: ATI Technologies Inc
 physical id: 1
 bus info: pci@0000:00:01.0
 version: 00
 width: 32 bits
 clock: 33MHz
 capabilities: pm pciexpress msi vga_controller bus_master cap_list rom
 configuration: driver=radeon latency=0
 resources: irq:43 memory:e0000000-efffffff ioport:4000(size=256) memory:f0300000-f033ffff
 *-multimedia:0
 description: Audio device
 product: Wrestler HDMI Audio [Radeon HD 6250/6310]
 vendor: ATI Technologies Inc
 physical id: 1.1
 bus info: pci@0000:00:01.1
 version: 00
 width: 32 bits
 clock: 33MHz
 capabilities: pm pciexpress msi bus_master cap_list
 configuration: driver=snd_hda_intel latency=0
 resources: irq:44 memory:f0344000-f0347fff
 *-pci:0
 description: PCI bridge
 product: Family 14h Processor Root Port
 vendor: Advanced Micro Devices [AMD]
 physical id: 5
 bus info: pci@0000:00:05.0
 version: 00
 width: 32 bits
 clock: 33MHz
 capabilities: pci pm pciexpress msi ht normal_decode bus_master cap_list
 configuration: driver=pcieport
 resources: irq:40 ioport:3000(size=4096) memory:f0200000-f02fffff
 *-network
 description: Wireless interface
 product: RTL8188CE 802.11b/g/n WiFi Adapter
 vendor: Realtek Semiconductor Co., Ltd.
 physical id: 0
 bus info: pci@0000:01:00.0
 logical name: wlan0
 version: 01
 serial: 60:d8:19:c6:45:b2
 width: 64 bits
 clock: 33MHz
 capabilities: pm msi pciexpress bus_master cap_list ethernet physical wireless
 configuration: broadcast=yes driver=rtl8192ce driverversion=3.1.9-1.4-desktop firmware=N/A ip=10.0.0.91 latency=0 link=yes multicast=yes wireless=IEEE 802.11bgn
 resources: irq:17 ioport:3000(size=256) memory:f0200000-f0203fff
 *-pci:1
 description: PCI bridge
 product: Family 14h Processor Root Port
 vendor: Advanced Micro Devices [AMD]
 physical id: 6
 bus info: pci@0000:00:06.0
 version: 00
 width: 32 bits
 clock: 33MHz
 capabilities: pci pm pciexpress msi ht normal_decode bus_master cap_list
 configuration: driver=pcieport
 resources: irq:41 ioport:2000(size=4096) memory:f0100000-f01fffff
 *-network
 description: Ethernet interface
 product: AR8151 v2.0 Gigabit Ethernet
 vendor: Atheros Communications
 physical id: 0
 bus info: pci@0000:02:00.0
 logical name: eth0
 version: c0
 serial: 04:7d:7b:18:15:18
 size: 10Mbit/s
 capacity: 1Gbit/s
 width: 64 bits
 clock: 33MHz
 capabilities: pm msi pciexpress vpd bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
 configuration: autonegotiation=on broadcast=yes driver=atl1c driverversion=1.0.1.0-NAPI duplex=half firmware=N/A latency=0 link=no multicast=yes port=twisted pair speed=10Mbit/s
 resources: irq:45 memory:f0100000-f013ffff ioport:2000(size=128)
 *-pci:2
 description: PCI bridge
 product: Family 14h Processor Root Port
 vendor: Advanced Micro Devices [AMD]
 physical id: 7
 bus info: pci@0000:00:07.0
 version: 00
 width: 32 bits
 clock: 33MHz
 capabilities: pci pm pciexpress msi ht normal_decode bus_master cap_list
 configuration: driver=pcieport
 resources: irq:42 ioport:1000(size=4096) memory:f0000000-f00fffff ioport:f0400000(size=3145728)
 *-generic
 description: Unassigned class
 product: RTS5116 PCI Express Card Reader
 vendor: Realtek Semiconductor Co., Ltd.
 physical id: 0
 bus info: pci@0000:03:00.0
 logical name: scsi3
 version: 01
 width: 32 bits
 clock: 33MHz
 capabilities: pm msi pciexpress bus_master cap_list rom emulated scsi-host
 configuration: driver=rts_pstor latency=0
 resources: irq:19 memory:f0000000-f0000fff memory:f0400000-f040ffff
 *-disk
 description: SCSI Disk
 product: xD/SD/M.S.
 vendor: Generic-
 physical id: 0.0.0
 bus info: scsi@3:0.0.0
 logical name: /dev/sdb
 version: 1.00
 serial: 3
 capabilities: removable
 configuration: sectorsize=512
 *-medium
 physical id: 0
 logical name: /dev/sdb
 *-storage
 description: SATA controller
 product: SB7x0/SB8x0/SB9x0 SATA Controller [AHCI mode]
 vendor: ATI Technologies Inc
 physical id: 11
 bus info: pci@0000:00:11.0
 logical name: scsi0
 version: 00
 width: 32 bits
 clock: 66MHz
 capabilities: storage ahci_1.0 bus_master cap_list emulated
 configuration: driver=ahci latency=64
 resources: irq:19 ioport:4118(size=8) ioport:4124(size=4) ioport:4110(size=8) ioport:4120(size=4) ioport:4100(size=16) memory:f034a000-f034a3ff
 *-disk
 description: ATA Disk
 product: HITACHI HTS54505
 vendor: Hitachi
 physical id: 0.0.0
 bus info: scsi@0:0.0.0
 logical name: /dev/sda
 version: GG2Z
 serial: TA9511GZHT7HNP
 size: 465GiB (500GB)
 capabilities: partitioned partitioned:dos
 configuration: ansiversion=5 sectorsize=4096 signature=5d579c8a
 *-volume:0
 description: Windows NTFS volume
 physical id: 1
 bus info: scsi@0:0.0.0,1
 logical name: /dev/sda1
 logical name: /windows/C
 version: 3.1
 serial: 9656-c98f
 size: 1498MiB
 capacity: 1500MiB
 capabilities: primary ntfs initialized
 configuration: clustersize=4096 created=2012-03-02 04:48:32 filesystem=ntfs label=SYSTEM_DRV mount.fstype=fuseblk mount.options=rw,nosuid,nodev,noexec,relatime,user_id=0,group_id=0,default_permissions,allow_other,blksize=4096 state=mounted
 *-volume:1
 description: Windows NTFS volume
 physical id: 2
 bus info: scsi@0:0.0.0,2
 logical name: /dev/sda2
 logical name: /windows/D
 version: 3.1
 serial: 7eed8453-0032-f041-9813-bc7fcfa86174
 size: 155GiB
 capacity: 155GiB
 capabilities: primary ntfs initialized
 configuration: clustersize=4096 created=2012-03-02 04:48:49 filesystem=ntfs label=Windows7_OS mount.fstype=fuseblk mount.options=rw,nosuid,nodev,noexec,relatime,user_id=0,group_id=0,default_permissions,allow_other,blksize=4096 state=mounted
 *-volume:2
 description: Windows NTFS volume
 physical id: 3
 bus info: scsi@0:0.0.0,3
 logical name: /dev/sda3
 logical name: /windows/E
 version: 3.1
 serial: b01a23c6-4612-d442-b985-b89cfd4f2f68
 size: 15GiB
 capacity: 15GiB
 capabilities: primary ntfs initialized
 configuration: clustersize=4096 created=2012-01-05 12:36:03 filesystem=ntfs label=Lenovo_Recovery mount.fstype=fuseblk mount.options=rw,nosuid,nodev,noexec,relatime,user_id=0,group_id=0,default_permissions,allow_other,blksize=4096 state=mounted
 *-volume:3
 description: Extended partition
 physical id: 4
 bus info: scsi@0:0.0.0,4
 logical name: /dev/sda4
 size: 292GiB
 capacity: 292GiB
 capabilities: primary extended partitioned partitioned:extended
 *-logicalvolume:0
 description: Linux swap / Solaris partition
 physical id: 5
 logical name: /dev/sda5
 capacity: 2053MiB
 capabilities: nofs
 *-logicalvolume:1
 description: Linux filesystem partition
 physical id: 6
 logical name: /dev/sda6
 logical name: /
 capacity: 90GiB
 configuration: mount.fstype=ext4 mount.options=rw,relatime,user_xattr,acl,commit=600,barrier=1,data=ordered state=mounted
 *-logicalvolume:2
 description: Linux filesystem partition
 physical id: 7
 logical name: /dev/sda7
 capacity: 200GiB
 *-usb:0
 description: USB Controller
 product: SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
 vendor: ATI Technologies Inc
 physical id: 12
 bus info: pci@0000:00:12.0
 version: 00
 width: 32 bits
 clock: 66MHz
 capabilities: ohci bus_master
 configuration: driver=ohci_hcd latency=64
 resources: irq:18 memory:f0349000-f0349fff
 *-usb:1
 description: USB Controller
 product: SB7x0/SB8x0/SB9x0 USB EHCI Controller
 vendor: ATI Technologies Inc
 physical id: 12.2
 bus info: pci@0000:00:12.2
 version: 00
 width: 32 bits
 clock: 66MHz
 capabilities: pm debug ehci bus_master cap_list
 configuration: driver=ehci_hcd latency=64
 resources: irq:17 memory:f034a500-f034a5ff
 *-usb:2
 description: USB Controller
 product: SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
 vendor: ATI Technologies Inc
 physical id: 13
 bus info: pci@0000:00:13.0
 version: 00
 width: 32 bits
 clock: 66MHz
 capabilities: ohci bus_master
 configuration: driver=ohci_hcd latency=64
 resources: irq:18 memory:f0348000-f0348fff
 *-usb:3
 description: USB Controller
 product: SB7x0/SB8x0/SB9x0 USB EHCI Controller
 vendor: ATI Technologies Inc
 physical id: 13.2
 bus info: pci@0000:00:13.2
 version: 00
 width: 32 bits
 clock: 66MHz
 capabilities: pm debug ehci bus_master cap_list
 configuration: driver=ehci_hcd latency=64
 resources: irq:17 memory:f034a400-f034a4ff
 *-serial
 description: SMBus
 product: SBx00 SMBus Controller
 vendor: ATI Technologies Inc
 physical id: 14
 bus info: pci@0000:00:14.0
 version: 42
 width: 32 bits
 clock: 66MHz
 configuration: driver=piix4_smbus latency=0
 resources: irq:0
 *-multimedia:1
 description: Audio device
 product: SBx00 Azalia (Intel HDA)
 vendor: ATI Technologies Inc
 physical id: 14.2
 bus info: pci@0000:00:14.2
 version: 40
 width: 64 bits
 clock: 33MHz
 capabilities: pm bus_master cap_list
 configuration: driver=snd_hda_intel latency=64
 resources: irq:16 memory:f0340000-f0343fff
 *-isa
 description: ISA bridge
 product: SB7x0/SB8x0/SB9x0 LPC host controller
 vendor: ATI Technologies Inc
 physical id: 14.3
 bus info: pci@0000:00:14.3
 version: 40
 width: 32 bits
 clock: 66MHz
 capabilities: isa bus_master
 configuration: latency=0
 *-pci:3
 description: PCI bridge
 product: SBx00 PCI to PCI Bridge
 vendor: ATI Technologies Inc
 physical id: 14.4
 bus info: pci@0000:00:14.4
 version: 40
 width: 32 bits
 clock: 66MHz
 capabilities: pci subtractive_decode bus_master
 *-pci:1
 description: Host bridge
 product: Family 12h/14h Processor Function 0
 vendor: Advanced Micro Devices [AMD]
 physical id: 101
 bus info: pci@0000:00:18.0
 version: 43
 width: 32 bits
 clock: 33MHz
 *-pci:2
 description: Host bridge
 product: Family 12h/14h Processor Function 1
 vendor: Advanced Micro Devices [AMD]
 physical id: 102
 bus info: pci@0000:00:18.1
 version: 00
 width: 32 bits
 clock: 33MHz
 *-pci:3
 description: Host bridge
 product: Family 12h/14h Processor Function 2
 vendor: Advanced Micro Devices [AMD]
 physical id: 103
 bus info: pci@0000:00:18.2
 version: 00
 width: 32 bits
 clock: 33MHz
 *-pci:4
 description: Host bridge
 product: Family 12h/14h Processor Function 3
 vendor: Advanced Micro Devices [AMD]
 physical id: 104
 bus info: pci@0000:00:18.3
 version: 00
 width: 32 bits
 clock: 33MHz
 configuration: driver=k10temp
 resources: irq:0
 *-pci:5
 description: Host bridge
 product: Family 12h/14h Processor Function 4
 vendor: Advanced Micro Devices [AMD]
 physical id: 105
 bus info: pci@0000:00:18.4
 version: 00
 width: 32 bits
 clock: 33MHz
 *-pci:6
 description: Host bridge
 product: Family 12h/14h Processor Function 6
 vendor: Advanced Micro Devices [AMD]
 physical id: 106
 bus info: pci@0000:00:18.5
 version: 00
 width: 32 bits
 clock: 33MHz
 *-pci:7
 description: Host bridge
 product: Family 12h/14h Processor Function 5
 vendor: Advanced Micro Devices [AMD]
 physical id: 107
 bus info: pci@0000:00:18.6
 version: 00
 width: 32 bits
 clock: 33MHz
 *-pci:8
 description: Host bridge
 product: Family 12h/14h Processor Function 7
 vendor: Advanced Micro Devices [AMD]
 physical id: 108
 bus info: pci@0000:00:18.7
 version: 00
 width: 32 bits
 clock: 33MHz

Postup zprovoznění pod Linuxem

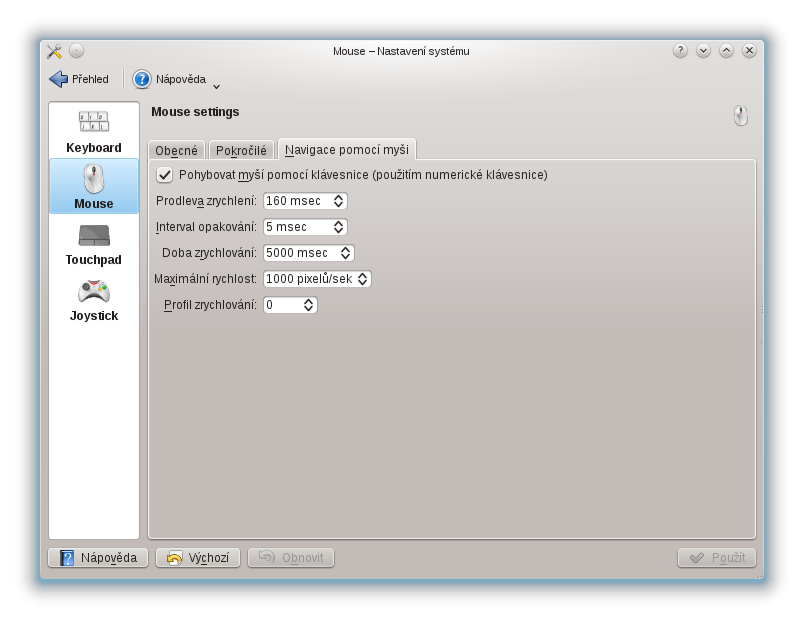

Vše jede po nainstalování openSuse 12.1 ihned, jen trackpoint se musí povolit v konfigurace-vstupní zařízení-myš-navigace pomocí myši - povolit Pohybovat myší pomocí klávesnice a musí se v konfiguraci-vstupní zařízení-klávesnice-Hardware zvolit klávesnice Lenovo/IBM ThinkPad 560Z/600/600E/A22E.
Jen doplním, že před provedením nastavení klávesnice na typ Lenovo nefungují gesta touchpadu, tj. ťuknutí na touchpad ani tlačítka Thinkpadu nejsou funkční, musíte použít hardwarová tlačítka pod touchpadem, tj. touchpad promačkávat až cvakne mikrospínač pod ním, jinak to nereaguje na žádné poklepy!! případně je možné použít myš.

HDMI zkoušeno na plasmě, stačí připojit a v nabídnutém menu zvolit způsob zobrazení (klon, vedle sebe,…). Video z Youtube běželo plynule na 720p, 1080p se mi zdálo trhané.

WiFi jede bez problému, dokonce ji pro Linux nedeaktivují W7HP tak, jako to dělaly MS Windows 7 na HP Mini 5103 byť jediném spuštění.

Bluetooth po doinstalování z repozitáře a spuštění jede, testováno Androidí G1 (možná stačilo jen spustit, já předtím doinstaloval komplet všechny služby bluez).

Uspávání do RAM a probouzení je také bezproblémové.

Poznámka

Po aktualizaci systému (i ovládačů GK) dne 8. 7. 2012 se objevilo na displeji logo AMD "Unsuported hardware". Grrrr.

Vyřešeno, měl jsem nainstalovány jak 32 tak 64 bit ovládače, po odstranění 32 a ponechání jen flgrx vodoznak zmizel.





Edit 5.8.2012 Grrr Proběhla aktualizace a opět mám logo AMD unsupported hardware, přitom zůstaly jen flgr ovládače 64 bit.



Občas se stane, že přestane preagovat plasma na stisk myši/touchpadu a musím se odhlásit-přihlásit. AMD/ATI je pěkná sračka, koupi tohoto NB ospravedlňuje jen jeho výdrž na baterii až 8hodin oproti verzi s Intelem s výdrží poloviční.



takže vyřešeno, nedovolit aktualizaci AMD/ATI Catalist fglrx na vyšší ver. než 8.961-5, verze 8.980-2 vyhazuje ten vodoznak o nepodporovaném HW.



fglrx64_xpic_SUSE121 - X Window display driver for the AMD graphics accelerators

Jiná verze   Instalovaná verze

Verze:

8.980-2    8.961-5

Čas sestavení:

Po 30. červenec 2012, 14:32:15 CEST Čt 31. květen 2012, 10:45:25 CEST

Licence: AMD: Advanced Micro Devices.

Instalovaná velikost: 235,2 MiB 237,5 MiB

Architektura: x86_64 x86_64

URL: http://ati.amd.com/support/driver.html http://ati.amd.com/support/driver.html

Zdrojový balíček: fglrx64_xpic_SUSE121-8.980-2 fglrx64_xpic_SUSE121-8.961-5

Vypadá to, že po upgrade na openSuse 12.2 problémy s neragováním objektů na plasmě zmizely a vše konečně funguje jak má:)

Obrázky

Dokument vytvořil: jsmach, 3.3.2012 12:58 | Poslední úprava: jsmach, 30.10.2012 18:35 | Další přispěvatelé: Fluttershy, yay!, jsmach | Historie změn | Zobrazeno: 1755×
