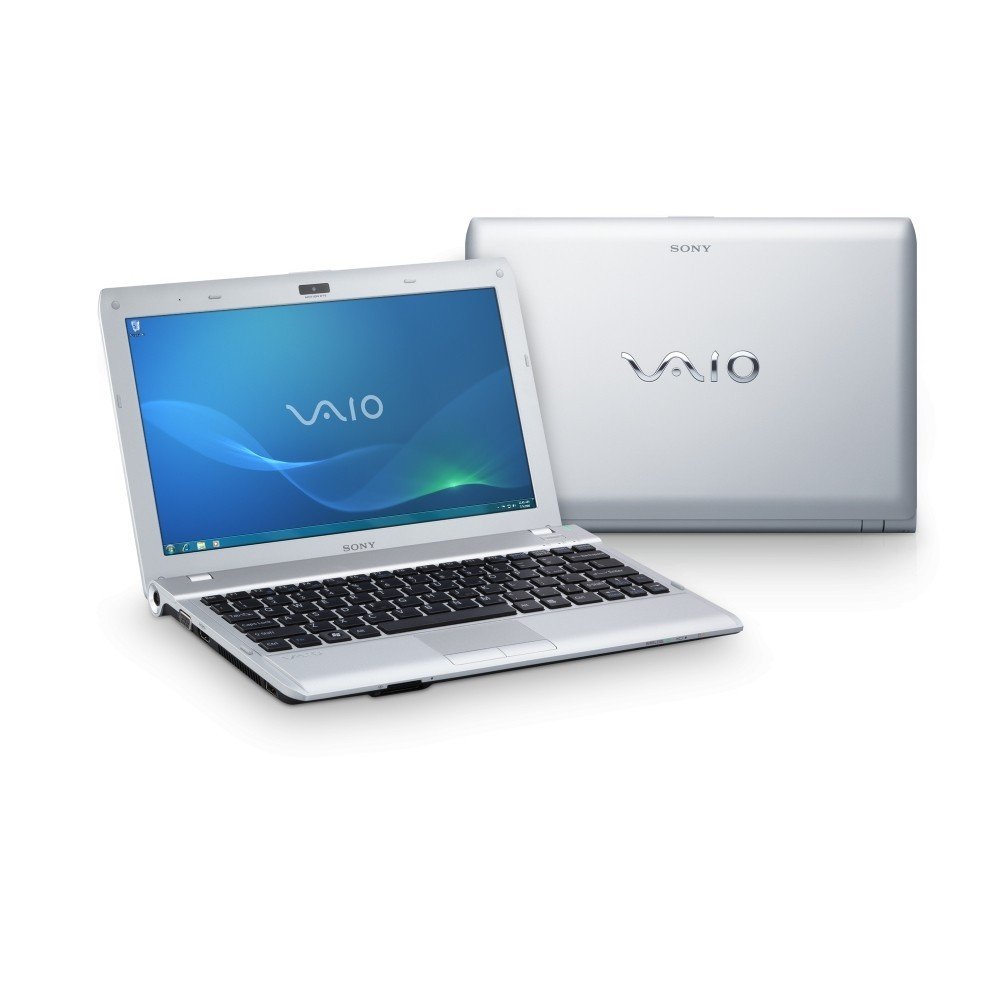

Sony VAIO YB3V1E/S

Technické parametry

AMD Zacate Dual-Core E-450 s frekvencí 1,65 GHz
Max TDP: 18 W
4 GB DDR3 1066 MHz
Pevný disk: 500 GB, 5400 RPM
11,6" LCD s LED podsvícením, 1366 x 768 bodů
AMD Radeon HD6320
WiFi 802.11b/g/n, Gigabit Ethernet, Bluetooth 2.1
290 x 202,8 x 25 mm, 1,46 kg

Identifikace pod Linuxem

lshw

vaio
    description: Notebook
    product: VPCYB3V1E (N/A)
    vendor: Sony Corporation
    version: C90284R4
    serial: 27551098-5003547
    width: 64 bits
    capabilities: smbios-2.7 dmi-2.7 vsyscall64 vsyscall32
    configuration: boot=normal chassis=notebook family=VAIO sku=N/A uuid=61D8A3AB-D30C-E111-86BB-E35ED679EC85
  *-core
       description: Motherboard
       product: VAIO
       vendor: Sony Corporation
       physical id: 0
       version: N/A
       serial: N/A
       slot: Base Board Chassis Location
     *-firmware
          description: BIOS
          vendor: Insyde Corp.
          physical id: 0
          version: R0190Z7
          date: 09/09/2011
          size: 1MiB
          capacity: 1984KiB
          capabilities: pci pnp upgrade shadowing cdboot bootselect edd int9keyboard int10video acpi usb smartbattery biosbootspecification netboot
     *-memory
          description: System Memory
          physical id: 6
          slot: System board or motherboard
          size: 8GiB
        *-bank:0
             description: SODIMM DDR3 1334 MHz (0,7 ns)
             product: M471B5273DH0-CH9
             vendor: Samsung
             physical id: 0
             serial: 003F5DB5
             slot: SODIMM1
             size: 4GiB
             width: 8 bits
             clock: 1334MHz (0.7ns)
        *-bank:1
             description: SODIMM DDR3 1334 MHz (0,7 ns)
             product: 99U5428-046.A00LF
             vendor: Kinston
             physical id: 1
             serial: 8A1A4AE8
             slot: SODIMM2
             size: 4GiB
             width: 8 bits
             clock: 1334MHz (0.7ns)
     *-cpu
          description: CPU
          product: AMD E-450 APU with Radeon(tm) HD Graphics
          vendor: Hynix Semiconductor (Hyundai Electronics)
          physical id: c
          bus info: cpu@0
          version: AMD E-450 APU with Radeon(tm) HD Graphics
          serial: N/A
          slot: N/A
          size: 825MHz
          capacity: 1650MHz
          width: 64 bits
          clock: 100MHz
          capabilities: x86-64 fpu fpu_exception wp vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp constant_tsc rep_good nopl nonstop_tsc extd_apicid aperfmperf pni monitor ssse3 cx16 popcnt lahf_lm cmp_legacy svm extapic cr8_legacy abm sse4a misalignsse 3dnowprefetch ibs skinit wdt arat npt lbrv svm_lock nrip_save pausefilter cpufreq
          configuration: cores=2 enabledcores=2 threads=2
        *-cache:0
             description: L1 cache
             physical id: d
             slot: L1 Cache
             size: 128KiB
             capacity: 128KiB
             capabilities: pipeline-burst internal write-back unified
        *-cache:1
             description: L2 cache
             physical id: e
             slot: L2 Cache
             size: 1MiB
             capacity: 1MiB
             capabilities: pipeline-burst internal write-back unified
     *-pci:0
          description: Host bridge
          product: Family 14h Processor Root Complex
          vendor: Hynix Semiconductor (Hyundai Electronics)
          physical id: 100
          bus info: pci@0000:00:00.0
          version: 00
          width: 32 bits
          clock: 66MHz
        *-display
             description: VGA compatible controller
             product: ATI Technologies Inc
             vendor: ATI Technologies Inc
             physical id: 1
             bus info: pci@0000:00:01.0
             version: 00
             width: 32 bits
             clock: 33MHz
             capabilities: pm pciexpress msi vga_controller bus_master cap_list rom
             configuration: driver=fglrx_pci latency=0
             resources: irq:44 memory:e0000000-efffffff ioport:3000(size=256) memory:f0200000-f023ffff
        *-multimedia:0
             description: Audio device
             product: Wrestler HDMI Audio [Radeon HD 6250/6310]
             vendor: ATI Technologies Inc
             physical id: 1.1
             bus info: pci@0000:00:01.1
             version: 00
             width: 32 bits
             clock: 33MHz
             capabilities: pm pciexpress msi bus_master cap_list
             configuration: driver=HDA Intel latency=0
             resources: irq:42 memory:f0244000-f0247fff
        *-pci:0
             description: PCI bridge
             product: Family 14h Processor Root Port
             vendor: Hynix Semiconductor (Hyundai Electronics)
             physical id: 4
             bus info: pci@0000:00:04.0
             version: 00
             width: 32 bits
             clock: 33MHz
             capabilities: pci pm pciexpress msi ht normal_decode bus_master cap_list
             configuration: driver=pcieport
             resources: irq:40 ioport:2000(size=4096) memory:f0100000-f01fffff
           *-network
                description: Ethernet interface
                product: AR8131 Gigabit Ethernet
                vendor: Atheros Communications
                physical id: 0
                bus info: pci@0000:01:00.0
                logical name: eth0
                version: c0
                serial: f0:bf:97:92:18:1d
                capacity: 1Gbit/s
                width: 64 bits
                clock: 33MHz
                capabilities: pm msi pciexpress vpd bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
                configuration: autonegotiation=on broadcast=yes driver=atl1c driverversion=1.0.1.0-NAPI firmware=N/A latency=0 link=no multicast=yes port=twisted pair
                resources: irq:43 memory:f0100000-f013ffff ioport:2000(size=128)
        *-pci:1
             description: PCI bridge
             product: Family 14h Processor Root Port
             vendor: Hynix Semiconductor (Hyundai Electronics)
             physical id: 6
             bus info: pci@0000:00:06.0
             version: 00
             width: 32 bits
             clock: 33MHz
             capabilities: pci pm pciexpress msi ht normal_decode bus_master cap_list
             configuration: driver=pcieport
             resources: irq:41 memory:f0000000-f00fffff
           *-network
                description: Wireless interface
                product: AR9285 Wireless Network Adapter (PCI-Express)
                vendor: Atheros Communications Inc.
                physical id: 0
                bus info: pci@0000:02:00.0
                logical name: wlan0
                version: 01
                serial: 94:39:e5:b6:b1:4a
                width: 64 bits
                clock: 33MHz
                capabilities: pm msi pciexpress bus_master cap_list ethernet physical wireless
                configuration: broadcast=yes driver=ath9k driverversion=3.0.0-16-generic firmware=N/A ip=192.168.3.51 latency=0 link=yes multicast=yes wireless=IEEE 802.11bgn
                resources: irq:18 memory:f0000000-f000ffff
        *-storage
             description: SATA controller
             product: SB7x0/SB8x0/SB9x0 SATA Controller [AHCI mode]
             vendor: ATI Technologies Inc
             physical id: 11
             bus info: pci@0000:00:11.0
             logical name: scsi0
             version: 40
             width: 32 bits
             clock: 66MHz
             capabilities: storage ahci_1.0 bus_master cap_list emulated
             configuration: driver=ahci latency=64
             resources: irq:19 ioport:3118(size=8) ioport:3124(size=4) ioport:3110(size=8) ioport:3120(size=4) ioport:3100(size=16) memory:f024c000-f024c3ff
           *-disk
                description: ATA Disk
                product: TOSHIBA MK5059GS
                vendor: Toshiba
                physical id: 0.0.0
                bus info: scsi@0:0.0.0
                logical name: /dev/sda
                version: GT00
                serial: 9124F47DS
                size: 465GiB (500GB)
                capabilities: partitioned partitioned:dos
                configuration: ansiversion=5 signature=a4ac3d4c
              *-volume:0
                   description: Windows NTFS volume
                   physical id: 1
                   bus info: scsi@0:0.0.0,1
                   logical name: /dev/sda1
                   version: 3.1
                   serial: c81f-782d
                   size: 13GiB
                   capacity: 13GiB
                   capabilities: primary ntfs initialized
                   configuration: clustersize=4096 created=2011-11-16 06:25:14 filesystem=ntfs label=Recovery state=clean
              *-volume:1
                   description: Windows NTFS volume
                   physical id: 2
                   bus info: scsi@0:0.0.0,2
                   logical name: /dev/sda2
                   version: 3.1
                   serial: ac2a-c45d
                   size: 73MiB
                   capacity: 100MiB
                   capabilities: primary bootable ntfs initialized
                   configuration: clustersize=4096 created=2011-11-16 06:54:12 filesystem=ntfs label=System Reserved state=clean
              *-volume:2
                   description: Windows NTFS volume
                   physical id: 3
                   bus info: scsi@0:0.0.0,3
                   logical name: /dev/sda3
                   version: 3.1
                   serial: 4e1fe88b-c86c-6843-a4c9-8f734de1a1cb
                   size: 179GiB
                   capacity: 179GiB
                   capabilities: primary ntfs initialized
                   configuration: clustersize=4096 created=2011-11-16 06:54:14 filesystem=ntfs state=clean
              *-volume:3
                   description: Extended partition
                   physical id: 4
                   bus info: scsi@0:0.0.0,4
                   logical name: /dev/sda4
                   size: 265GiB
                   capacity: 265GiB
                   capabilities: primary extended partitioned partitioned:extended
                 *-logicalvolume:0
                      description: Linux filesystem partition
                      physical id: 5
                      logical name: /dev/sda5
                      logical name: /
                      capacity: 255GiB
                      configuration: mount.fstype=ext4 mount.options=rw,relatime,errors=remount-ro,user_xattr,acl,barrier=1,data=ordered state=mounted
                 *-logicalvolume:1
                      description: Linux swap / Solaris partition
                      physical id: 6
                      logical name: /dev/sda6
                      capacity: 10GiB
                      capabilities: nofs
        *-usb:0
             description: USB Controller
             product: SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
             vendor: ATI Technologies Inc
             physical id: 12
             bus info: pci@0000:00:12.0
             version: 00
             width: 32 bits
             clock: 66MHz
             capabilities: ohci bus_master
             configuration: driver=ohci_hcd latency=64
             resources: irq:18 memory:f024b000-f024bfff
        *-usb:1
             description: USB Controller
             product: SB7x0/SB8x0/SB9x0 USB EHCI Controller
             vendor: ATI Technologies Inc
             physical id: 12.2
             bus info: pci@0000:00:12.2
             version: 00
             width: 32 bits
             clock: 66MHz
             capabilities: pm debug ehci bus_master cap_list
             configuration: driver=ehci_hcd latency=64
             resources: irq:17 memory:f024a000-f024a0ff
        *-usb:2
             description: USB Controller
             product: SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
             vendor: ATI Technologies Inc
             physical id: 13
             bus info: pci@0000:00:13.0
             version: 00
             width: 32 bits
             clock: 66MHz
             capabilities: ohci bus_master
             configuration: driver=ohci_hcd latency=64
             resources: irq:18 memory:f0249000-f0249fff
        *-usb:3
             description: USB Controller
             product: SB7x0/SB8x0/SB9x0 USB EHCI Controller
             vendor: ATI Technologies Inc
             physical id: 13.2
             bus info: pci@0000:00:13.2
             version: 00
             width: 32 bits
             clock: 66MHz
             capabilities: pm debug ehci bus_master cap_list
             configuration: driver=ehci_hcd latency=64
             resources: irq:17 memory:f0248000-f02480ff
        *-serial
             description: SMBus
             product: SBx00 SMBus Controller
             vendor: ATI Technologies Inc
             physical id: 14
             bus info: pci@0000:00:14.0
             version: 42
             width: 32 bits
             clock: 66MHz
             configuration: driver=piix4_smbus latency=0
             resources: irq:0
        *-multimedia:1
             description: Audio device
             product: SBx00 Azalia (Intel HDA)
             vendor: ATI Technologies Inc
             physical id: 14.2
             bus info: pci@0000:00:14.2
             version: 40
             width: 64 bits
             clock: 33MHz
             capabilities: pm bus_master cap_list
             configuration: driver=HDA Intel latency=64
             resources: irq:16 memory:f0240000-f0243fff
        *-isa
             description: ISA bridge
             product: SB7x0/SB8x0/SB9x0 LPC host controller
             vendor: ATI Technologies Inc
             physical id: 14.3
             bus info: pci@0000:00:14.3
             version: 40
             width: 32 bits
             clock: 66MHz
             capabilities: isa bus_master
             configuration: latency=0
        *-pci:2
             description: PCI bridge
             product: SBx00 PCI to PCI Bridge
             vendor: ATI Technologies Inc
             physical id: 14.4
             bus info: pci@0000:00:14.4
             version: 40
             width: 32 bits
             clock: 66MHz
             capabilities: pci subtractive_decode bus_master
     *-pci:1
          description: Host bridge
          product: Family 12h/14h Processor Function 0
          vendor: Hynix Semiconductor (Hyundai Electronics)
          physical id: 101
          bus info: pci@0000:00:18.0
          version: 43
          width: 32 bits
          clock: 33MHz
     *-pci:2
          description: Host bridge
          product: Family 12h/14h Processor Function 1
          vendor: Hynix Semiconductor (Hyundai Electronics)
          physical id: 102
          bus info: pci@0000:00:18.1
          version: 00
          width: 32 bits
          clock: 33MHz
     *-pci:3
          description: Host bridge
          product: Family 12h/14h Processor Function 2
          vendor: Hynix Semiconductor (Hyundai Electronics)
          physical id: 103
          bus info: pci@0000:00:18.2
          version: 00
          width: 32 bits
          clock: 33MHz
     *-pci:4
          description: Host bridge
          product: Family 12h/14h Processor Function 3
          vendor: Hynix Semiconductor (Hyundai Electronics)
          physical id: 104
          bus info: pci@0000:00:18.3
          version: 00
          width: 32 bits
          clock: 33MHz
          configuration: driver=k10temp
          resources: irq:0
     *-pci:5
          description: Host bridge
          product: Family 12h/14h Processor Function 4
          vendor: Hynix Semiconductor (Hyundai Electronics)
          physical id: 105
          bus info: pci@0000:00:18.4
          version: 00
          width: 32 bits
          clock: 33MHz
     *-pci:6
          description: Host bridge
          product: Family 12h/14h Processor Function 6
          vendor: Hynix Semiconductor (Hyundai Electronics)
          physical id: 106
          bus info: pci@0000:00:18.5
          version: 00
          width: 32 bits
          clock: 33MHz
     *-pci:7
          description: Host bridge
          product: Family 12h/14h Processor Function 5
          vendor: Hynix Semiconductor (Hyundai Electronics)
          physical id: 107
          bus info: pci@0000:00:18.6
          version: 00
          width: 32 bits
          clock: 33MHz
     *-pci:8
          description: Host bridge
          product: Family 12h/14h Processor Function 7
          vendor: Hynix Semiconductor (Hyundai Electronics)
          physical id: 108
          bus info: pci@0000:00:18.7
          version: 00
          width: 32 bits
          clock: 33MHz
     *-scsi
          physical id: 1
          bus info: usb@2:5
          logical name: scsi1
          capabilities: emulated scsi-host
          configuration: driver=usb-storage
        *-disk:0
             description: SCSI Disk
             physical id: 0.0.0
             bus info: scsi@1:0.0.0
             logical name: /dev/sdb
        *-disk:1
             description: SCSI Disk
             physical id: 0.0.1
             bus info: scsi@1:0.0.1
             logical name: /dev/sdc

lspci

00:00.0 Host bridge: Advanced Micro Devices [AMD] Family 14h Processor Root Complex
00:01.0 VGA compatible controller: ATI Technologies Inc Device 9806
00:01.1 Audio device: ATI Technologies Inc Wrestler HDMI Audio [Radeon HD 6250/6310]
00:04.0 PCI bridge: Advanced Micro Devices [AMD] Family 14h Processor Root Port
00:06.0 PCI bridge: Advanced Micro Devices [AMD] Family 14h Processor Root Port
00:11.0 SATA controller: ATI Technologies Inc SB7x0/SB8x0/SB9x0 SATA Controller [AHCI mode] (rev 40)
00:12.0 USB Controller: ATI Technologies Inc SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
00:12.2 USB Controller: ATI Technologies Inc SB7x0/SB8x0/SB9x0 USB EHCI Controller
00:13.0 USB Controller: ATI Technologies Inc SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
00:13.2 USB Controller: ATI Technologies Inc SB7x0/SB8x0/SB9x0 USB EHCI Controller
00:14.0 SMBus: ATI Technologies Inc SBx00 SMBus Controller (rev 42)
00:14.2 Audio device: ATI Technologies Inc SBx00 Azalia (Intel HDA) (rev 40)
00:14.3 ISA bridge: ATI Technologies Inc SB7x0/SB8x0/SB9x0 LPC host controller (rev 40)
00:14.4 PCI bridge: ATI Technologies Inc SBx00 PCI to PCI Bridge (rev 40)
00:18.0 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 0 (rev 43)
00:18.1 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 1
00:18.2 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 2
00:18.3 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 3
00:18.4 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 4
00:18.5 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 6
00:18.6 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 5
00:18.7 Host bridge: Advanced Micro Devices [AMD] Family 12h/14h Processor Function 7
01:00.0 Ethernet controller: Atheros Communications AR8131 Gigabit Ethernet (rev c0)
02:00.0 Network controller: Atheros Communications Inc. AR9285 Wireless Network Adapter (PCI-Express) (rev 01)

lsusb


Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 003 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
Bus 004 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
Bus 002 Device 002: ID 0c45:64bd Microdia
Bus 002 Device 004: ID 0bda:0186 Realtek Semiconductor Corp.
Bus 004 Device 002: ID 0489:e00f Foxconn / Hon Hai Foxconn T77H114 BCM2070 [Single-Chip Bluetooth 2.1 + EDR Adapter]

cat /proc/acpi/battery/BAT0/info

present:                 yes
design capacity:         41040 mWh
last full capacity:      41000 mWh
battery technology:      rechargeable
design voltage:          10800 mV
design capacity warning: 5500 mWh
design capacity low:     0 mWh
cycle count:		  0
capacity granularity 1:  1 mWh
capacity granularity 2:  1 mWh
model number:            VGP-BPS21B
serial number:            1099
battery type:            LION
OEM info:                Sony Corp.

Postup zprovoznění pod Linuxem

Vstup do BIOSu je přes F2. Před prvním spuštěním doporučuji udělat zálohu Windows via Acronis USB. Pro obnovu systému je přítomno i tlačítko Assist.

Instalace Ubuntu 11.10 proběhla naprosto bez problémů a skoro vše funguje okamžitě. Výjimkou je usínání na disk a originální uzavřený AMD ovladač grafické karty (který není potřeba).

Poznámka

Celkem příjemný malý a poměrně mobilní netbook. Jen větráček běží prakticky neustále a je slyšet. V kavárně to nevadí, v noci ano.

AMD E-450 má podporu pro virtualizaci a s VirtualBoxem ji skutečně využívám. Windows XP takto fungují docela dobře.

BTW originální Windows 7 doporučuji zachovat v minimalistické verzi jako dobrý Honeypot pro případné zloděje. Samozřejmě bez hesla a s instalací velmi povedeného anti-theft SW Prey. Uložená data dobře ochrání zašifrovaný disk a netriviální heslo.

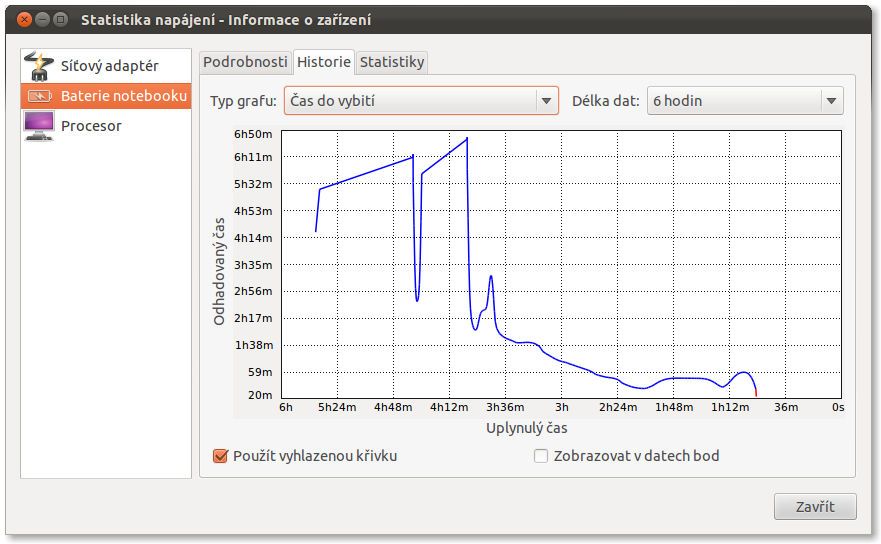

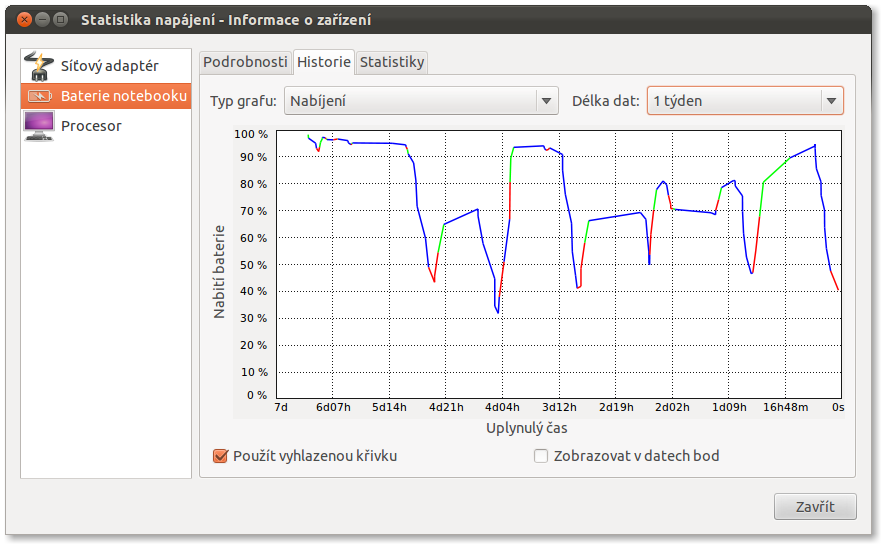

Obrázky

Dokument vytvořil: hufhendr, 2.2.2012 14:53 | Poslední úprava: hufhendr, 9.3.2012 00:56 | Historie změn | Zobrazeno: 1453×

Tiskni Sdílej:
