APC Back-UPS Pro 900

Technické parametry

Výstupní napětí: 230 V +/-8%, 50/60 Hz +/-1 Hz (auto sensing)
Kapacita: 900 VA
Výkon: 540 W
Rozměry: 100 x 250 x 382 mm
Hmotnost: 11,7 kg

Identifikace pod Linuxem

cat /proc/bus/usb/devices

T:  Bus=01 Lev=02 Prnt=02 Port=05 Cnt=01 Dev#=  3 Spd=12  MxCh= 0
D:  Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=64 #Cfgs=  1
P:  Vendor=051d ProdID=0002 Rev= 0.90
S:  Manufacturer=American Power Conversion
S:  Product=Back-UPS BR 900GI FW:879.L1d.I USB FW:L1d
S:  SerialNumber=3B1037X27963
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  2mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=03(HID  ) Sub=00 Prot=00 Driver=usbhid
E:  Ad=81(I) Atr=03(Int.) MxPS=   8 Ivl=100ms

lsusb

Bus 001 Device 003: ID 051d:0002 American Power Conversion Uninterruptible Power Supply
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               2.00
  bDeviceClass            0 (Defined at Interface level)
  bDeviceSubClass         0
  bDeviceProtocol         0
  bMaxPacketSize0        64
  idVendor           0x051d American Power Conversion
  idProduct          0x0002 Uninterruptible Power Supply
  bcdDevice            0.90
  iManufacturer           1 American Power Conversion
  iProduct                2 Back-UPS BR 900GI FW:879.L1d.I USB FW:L1d
  iSerial                 3 3B1037X27963
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength           34
    bNumInterfaces          1
    bConfigurationValue     1
    iConfiguration          0
    bmAttributes         0xe0
      Self Powered
      Remote Wakeup
    MaxPower                2mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           1
      bInterfaceClass         3 Human Interface Device
      bInterfaceSubClass      0 No Subclass
      bInterfaceProtocol      0 None
      iInterface              0
        HID Device Descriptor:
          bLength                 9
          bDescriptorType        33
          bcdHID               1.00
          bCountryCode           33 US
          bNumDescriptors         1
          bDescriptorType        34 Report
          wDescriptorLength    1134
         Report Descriptors:
           ** UNAVAILABLE **
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0008  1x 8 bytes
        bInterval             100
Device Status:     0x0002
  (Bus Powered)
  Remote Wakeup Enabled

Postup zprovoznění pod Linuxem

Připojit kabel, nainstalovat Apcupsd a v konfiguraci nastavit:

UPSCABLE usb
UPSTYPE usb
DEVICE
LOCKFILE /var/lock
SCRIPTDIR /etc/apcupsd
PWRFAILDIR /etc/apcupsd
NOLOGINDIR /etc
ONBATTERYDELAY 6
BATTERYLEVEL 10
MINUTES 10
TIMEOUT 0
ANNOY 300
ANNOYDELAY 60
NOLOGON disable
KILLDELAY 0
NETSERVER off
EVENTSFILE /var/log/apcupsd.events
EVENTSFILEMAX 10
UPSCLASS standalone
UPSMODE disable
STATTIME 0
STATFILE /var/log/apcupsd.status
LOGSTATS off
DATATIME 0
UPSNAME Back-900
BATTDATE 02/10/11
BEEPSTATE N
SELFTEST 336

Poznámka

Server HP ML110G6 udrží 2hod.

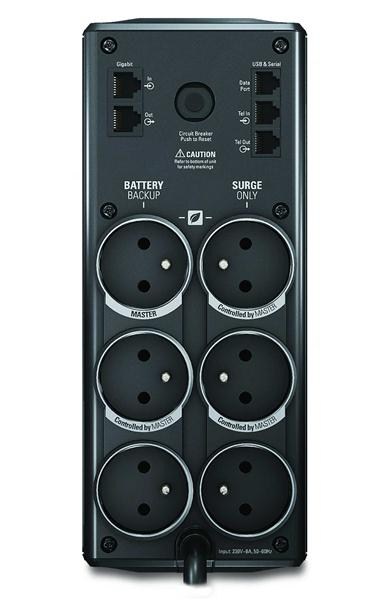

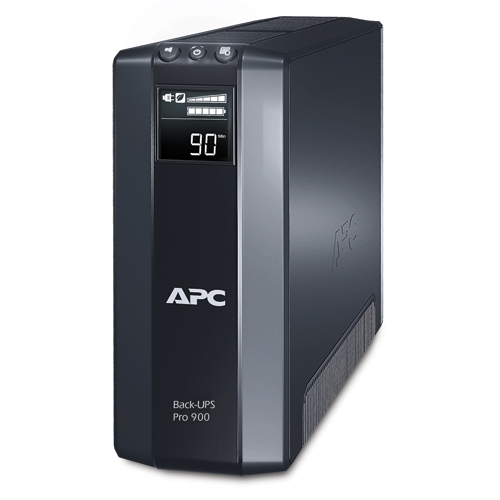

Obrázky
