Prestigio ION

Technické parametry

Procesor:
Intel Atom N230 1,6 GHz

Čipset:
NVIDIA® MCP7A-ION

Paměť:
2048 MB DDR2 (2 × 1024 MB) 667 MHz
Max. 4 GB

Pevný disk:
2,5" 160 GB, 5400 rpm
Rozhraní: Serial ATA II

Optická mechanika:
odjímatelná štěrbinová slim DRW mechanika


Audio:
High Definition audio přes HDMI (7.1)

Grafická karta:
NVIDIA® GeForce® 9400 integrovaná 256MB (celkem až 896MB)

Komunikace:
10/100/1000 Mb/s Ethernet LAN

Konektory:
6 x USB 2.0
2 x Audio: mikrofon a sluchátka
1 x RJ-45 Ethernet
1 x HDMI

Identifikace pod Linuxem

00:00.0 Host bridge: nVidia Corporation MCP79 Host Bridge (rev b1)
    Subsystem: Device 1b0a:0074
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0

00:00.1 RAM memory: nVidia Corporation MCP79 Memory Controller (rev b1)
    Subsystem: Device 1b0a:0074
    Control: I/O- Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0

00:03.0 ISA bridge: nVidia Corporation MCP79 LPC Bridge (rev b2)
    Subsystem: Device 1b0a:0074
    Control: I/O+ Mem+ BusMaster+ SpecCycle+ MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0
    Region 0: I/O ports at 4f00 [size=256]

00:03.1 RAM memory: nVidia Corporation MCP79 Memory Controller (rev b1)
    Subsystem: Device 1b0a:0074
    Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

00:03.2 SMBus: nVidia Corporation MCP79 SMBus (rev b1)
    Subsystem: Device 1b0a:0074
    Control: I/O+ Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Interrupt: pin A routed to IRQ 11
    Region 0: I/O ports at 4900 [size=64]
    Region 4: I/O ports at 4d00 [size=64]
    Region 5: I/O ports at 4e00 [size=64]
    Capabilities: [44] Power Management version 2
        Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot+,D3cold+)
        Status: D0 PME-Enable- DSel=0 DScale=0 PME-

00:03.3 RAM memory: nVidia Corporation MCP79 Memory Controller (rev b1)
    Subsystem: Device 1b0a:0074
    Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

00:03.5 Co-processor: nVidia Corporation MCP79 Co-processor (rev b1)
    Subsystem: Device 1b0a:0074
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0 (750ns min, 250ns max)
    Interrupt: pin B routed to IRQ 9
    Region 0: Memory at fae80000 (32-bit, non-prefetchable) [size=512K]

00:04.0 USB Controller: nVidia Corporation MCP79 OHCI USB 1.1 Controller (rev b1) (prog-if 10)
    Subsystem: Device 1b0a:0074
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0 (750ns min, 250ns max)
    Interrupt: pin A routed to IRQ 20
    Region 0: Memory at fae7f000 (32-bit, non-prefetchable) [size=4K]
    Capabilities: [44] Power Management version 2
        Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
        Status: D0 PME-Enable- DSel=0 DScale=0 PME-
    Kernel driver in use: ohci_hcd

00:04.1 USB Controller: nVidia Corporation MCP79 EHCI USB 2.0 Controller (rev b1) (prog-if 20)
    Subsystem: Device 1b0a:0074
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0 (750ns min, 250ns max)
    Interrupt: pin B routed to IRQ 22
    Region 0: Memory at fae7ec00 (32-bit, non-prefetchable) [size=256]
    Capabilities: [44] Debug port: BAR=1 offset=00a0
    Capabilities: [80] Power Management version 2
        Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
        Status: D0 PME-Enable- DSel=0 DScale=0 PME+
    Kernel driver in use: ehci_hcd

00:06.0 USB Controller: nVidia Corporation MCP79 OHCI USB 1.1 Controller (rev b1) (prog-if 10)
    Subsystem: Device 1b0a:0074
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0 (750ns min, 250ns max)
    Interrupt: pin A routed to IRQ 23
    Region 0: Memory at fae7d000 (32-bit, non-prefetchable) [size=4K]
    Capabilities: [44] Power Management version 2
        Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
        Status: D0 PME-Enable- DSel=0 DScale=0 PME-
    Kernel driver in use: ohci_hcd

00:06.1 USB Controller: nVidia Corporation MCP79 EHCI USB 2.0 Controller (rev b1) (prog-if 20)
    Subsystem: Device 1b0a:0074
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0 (750ns min, 250ns max)
    Interrupt: pin B routed to IRQ 21
    Region 0: Memory at fae7e800 (32-bit, non-prefetchable) [size=256]
    Capabilities: [44] Debug port: BAR=1 offset=00a0
    Capabilities: [80] Power Management version 2
        Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
        Status: D0 PME-Enable- DSel=0 DScale=0 PME+
    Kernel driver in use: ehci_hcd

00:08.0 Audio device: nVidia Corporation MCP79 High Definition Audio (rev b1)
    Subsystem: Device 1b0a:0062
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0 (500ns min, 1250ns max)
    Interrupt: pin A routed to IRQ 20
    Region 0: Memory at fae78000 (32-bit, non-prefetchable) [size=16K]
    Capabilities: [44] Power Management version 2
        Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot+,D3cold+)
        Status: D0 PME-Enable- DSel=0 DScale=0 PME-
    Kernel driver in use: HDA Intel
    Kernel modules: snd-hda-intel

00:09.0 PCI bridge: nVidia Corporation MCP79 PCI Bridge (rev b1) (prog-if 01)
    Control: I/O- Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0
    Bus: primary=00, secondary=01, subordinate=01, sec-latency=32
    I/O behind bridge: 0000f000-00000fff
    Memory behind bridge: fff00000-000fffff
    Prefetchable memory behind bridge: fff00000-000fffff
    Secondary status: 66MHz- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
    BridgeCtl: Parity- SERR+ NoISA- VGA- MAbort- >Reset- FastB2B-
        PriDiscTmr- SecDiscTmr+ DiscTmrStat- DiscTmrSERREn-
    Capabilities: [b8] Subsystem: Device 1b0a:0074

00:0a.0 Ethernet controller: nVidia Corporation MCP79 Ethernet (rev b1)
    Subsystem: Device 1b0a:0074
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0 (250ns min, 5000ns max)
    Interrupt: pin A routed to IRQ 22
    Region 0: Memory at fae7c000 (32-bit, non-prefetchable) [size=4K]
    Region 1: I/O ports at d080 [size=8]
    Region 2: Memory at fae7e400 (32-bit, non-prefetchable) [size=256]
    Region 3: Memory at fae7e000 (32-bit, non-prefetchable) [size=16]
    Capabilities: [44] Power Management version 2
        Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
        Status: D0 PME-Enable+ DSel=0 DScale=0 PME-
    Kernel driver in use: forcedeth
    Kernel modules: forcedeth

00:0b.0 IDE interface: nVidia Corporation MCP79 SATA Controller (rev b1) (prog-if 85 [Master SecO PriO])
    Subsystem: Device 1b0a:0074
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0 (750ns min, 250ns max)
    Interrupt: pin A routed to IRQ 2303
    Region 0: I/O ports at d000 [size=8]
    Region 1: I/O ports at cc00 [size=4]
    Region 2: I/O ports at c880 [size=8]
    Region 3: I/O ports at c800 [size=4]
    Region 4: I/O ports at c480 [size=16]
    Region 5: Memory at fae76000 (32-bit, non-prefetchable) [size=8K]
    Capabilities: [44] Power Management version 2
        Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
        Status: D0 PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [8c] SATA HBA <?>
    Capabilities: [b0] Message Signalled Interrupts: Mask- 64bit+ Queue=0/3 Enable+
        Address: 00000000fee0300c  Data: 4151
    Kernel driver in use: ahci

00:10.0 PCI bridge: nVidia Corporation MCP79 PCI Express Bridge (rev b1)
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 64 bytes
    Bus: primary=00, secondary=02, subordinate=02, sec-latency=0
    I/O behind bridge: 0000e000-0000efff
    Memory behind bridge: faf00000-fbffffff
    Prefetchable memory behind bridge: 00000000e0000000-00000000f9ffffff
    Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
    BridgeCtl: Parity- SERR+ NoISA- VGA+ MAbort- >Reset- FastB2B-
        PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
    Capabilities: [40] Subsystem: Device 1b0a:0074
    Capabilities: [48] Power Management version 2
        Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
        Status: D0 PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [50] Message Signalled Interrupts: Mask- 64bit+ Queue=0/1 Enable-
        Address: 0000000000000000  Data: 0000
    Kernel modules: shpchp

02:00.0 VGA compatible controller: nVidia Corporation Device 087d (rev b1)
    Subsystem: Device 1b0a:0074
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0
    Interrupt: pin A routed to IRQ 21
    Region 0: Memory at fb000000 (32-bit, non-prefetchable) [size=16M]
    Region 1: Memory at e0000000 (64-bit, prefetchable) [size=256M]
    Region 3: Memory at f8000000 (64-bit, prefetchable) [size=32M]
    Region 5: I/O ports at ec00 [size=128]
    [virtual] Expansion ROM at fafe0000 [disabled] [size=128K]
    Capabilities: [60] Power Management version 2
        Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
        Status: D0 PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [68] Message Signalled Interrupts: Mask- 64bit+ Queue=0/0 Enable-
        Address: 0000000000000000  Data: 0000
    Kernel driver in use: nvidia
    Kernel modules: nvidia, nvidiafb

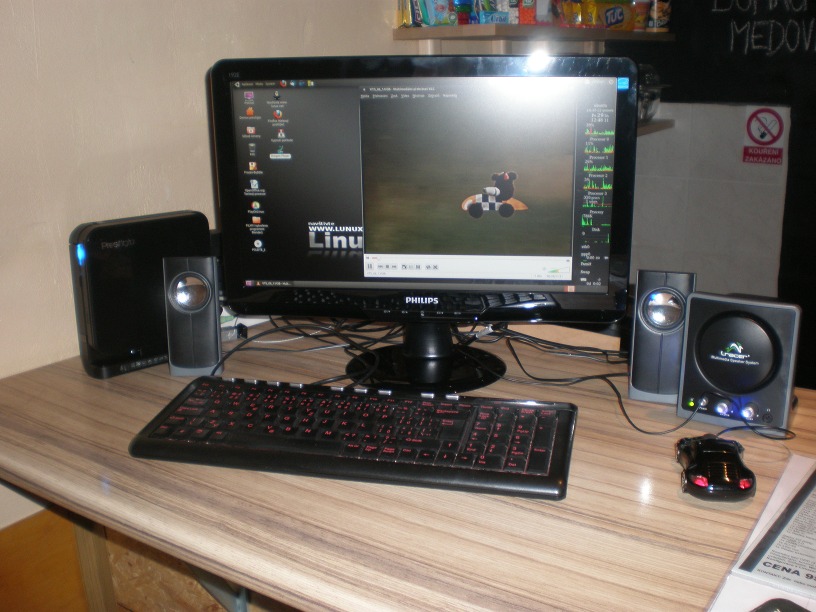

Postup zprovoznění pod Linuxem

S HDMI->DVI redukci detekovalo Ubuntu 9.04 grafiku s ovladacem VESA, nasledne pouzit ovladac od nvidie (glx-180). Zbytek s vychozimi ovladaci i nastavenim.

lm-sensors detekuji cidlo, ale nejsou pro nej ovladace (Fintek F71858DG Super IO Sensors),

Poznámka

VDPAU netestovano (nebyl cas a zrejme je potreba ledacos prikompilovat). Pri letmem zkouseni se neprojevily zadne problemy (vyjma zminovane grafiky, mozna se to da vyresit i lip).

Celou sestavu lze konfigurovat a přizpůsobitř cenu. Přidávím popis od výrobce:

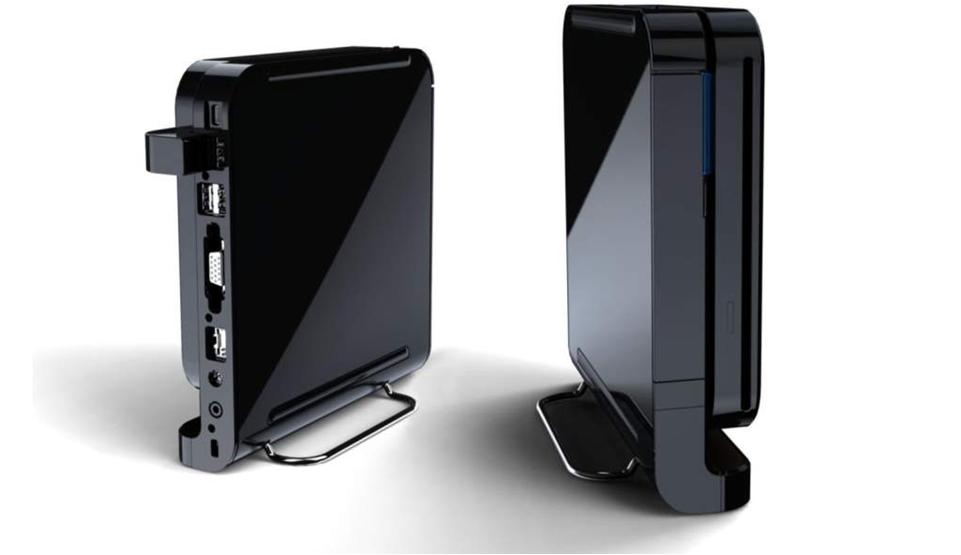

PRESTIGIO® ION U-MOUSE BAREBONE - unikátní miniPC s externí DRW mechanikou schopné přehrát bezproblémově HD filmy a některé aktuální 3D hry na integr. VGA GF9400GT!

Procesor: Intel Atom N330 1,6 GHz, 512 kB L2 cache
Chipset: nVidia ION (MCP79)
RAM: 2x volný 200pin SO-DIMM DDR2-533/667/800, max. 4096MB DDR2 non-ECC, un-buffered memory
HDD: 1x volný 2.5 SATA HDD, 5400 ot./min (možno osadit 60G/250G/320G/500G HDD)
VGA: integrovaná nVidia GeForce 9400GT (256 MB sdílené paměti)
Zvuk: 5.1 kanálový Realtek ALC662
LAN: 10/100/1000 Mbit/s nVidia nForce Ethernet
Optická mechanika: štěrbinová slim DRW mechanika
BlueTooth: NE
Infra port: integrovaný (bez dálkového ovládání)
Wi-Fi: 802.11b/g

Přední I/O porty:
1× USB 2.0
1x USB 2.0 & e-SATA kombinovaný
1x Audio out
1x Mic in
1x čtečka karet (SDHC, SD, MMC, MS Pro, MS)

Zadní I/O porty:
4x USB 2.0
1x HDMI (možnost propojit s digitálním monitorem skrz redukci)
1x RJ-45
1x Line out
1x Power extension

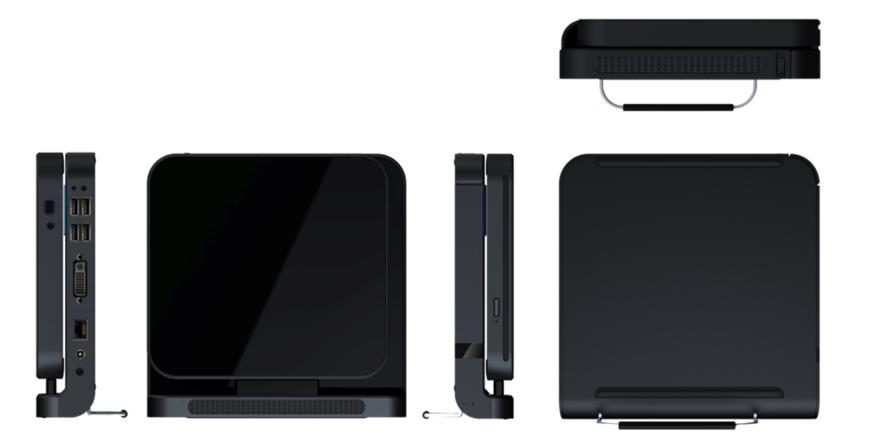

Rozměry bez ODD (š × v × h): 20 × 177 × 180 mm
Rozměry s ODD (š × v × h): 40 × 177 × 180 mm
Příslušenství: kovová nožička, napájecí adaptér, redukce HDMI => DVI, napájecí kabel, VESA mounting kit, CD/DVD s ovladači
Software: volitelně

Záruka: 2 roky

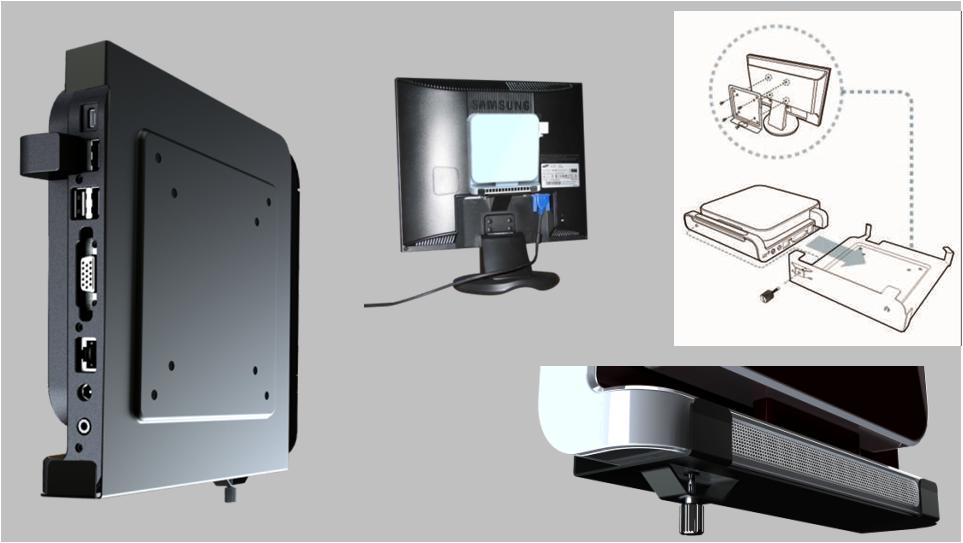

- PC lze připevnit zezadu na LCD panel (standardní VESA držák je součástí dodávky).
- velmi úsporné - zdroj uvádí maximální výkon 40W.
Kompletně testováno (kromě IR dálového ovládání) na Ubuntu 10.11 64bit

K dostání v ceně podle zvolené konfigurace a OS na dotaz v ceně začínající pod 5000,- vč DPH např. na http://www.lunux.net/kontakty.html

Obrázky

Dokument vytvořil: Roger, 12.9.2009 15:54 | Poslední úprava: LuděkS, 27.2.2011 15:09 | Historie změn | Zobrazeno: 2435×
