Lenovo ThinkPad R60 #9461-HRG

Podpora:	částečná
Ovladač:	v jádře

Technické parametry

Architecture
Bus type/architecture:	PCI/PCI Express
Bays:	Ultrabay Enhanced
Indicator light:
Form Factor:	Notebook

Display
External display supported:
Simultaneous external display:
Screen type description:	SXGA+ TFT
Viewable image size (diagonal):	15inches
Screen illumination:	Backlit
Max colors or grey shades:	16777216
Max resolution:	1400x1050

Graphics Subsystem
Video RAM std/max:	128MB / 128MB
Graphics chipset:	ATI Mobility Radeon X1400 HyperMemory
Graphics type:	SXGA+
Video RAM type:	GDDR
Max resolution (with max video RAM):	2048x1536 16777216 colors
Max colors (with max video RAM):	16777216
Graphics bus interface:	PCI Express

Processor
BIOS type:	Flash ROM
Processor manufacturer:	Intel
Processor (CPU):	Intel® Core 2 Duo T5600
Processor internal clock speed2: 	1.83GHz
Front Side Bus:	667MHz

Memory
Memory (RAM) std/max:	1GB / 4GB
RAM slots total:	2 SODIMM
RAM slots available:	1 SODIMM
RAM speed supported:	667MHz
RAM type:	PC2-5300 DDR2 SDRAM

Hard Disk
Hard disk size1:	120GB
Hard disk type:	Serial ATA

Optical device
Floppy diskette size:	--
Optical device:	DVD Recordable
Optical device speed8:	24X Max
Device interface:	EIDE

Audio
Integrated speakers:	2
Speaker power rating:	1 Watts
Volume control buttons:
Speaker Quantity:	2 (Internal Speaker)
Audio chipset:	Intel High Definition Audio
Audio data width:	24-bit
ReturnBack to top

Communications
Fax/modem:	56K V.92 designed modem
Fax/modem speeds:	56Kbps data/14.4Kbps fax
Infrared port:	No
Infrared port speed:	--
Wireless standard:	Intel 3945 a/b/g
Network card:	      Integrated Gigabit Ethernet
Network interface:	Gigabit Ethernet- Integrated
ReturnBack to top

Accessories
A/C adapter:
Worldwide A/C compatibility:	Yes
Port replicator:
ReturnBack to top

Standard Features
Pointing device type:	ThinkPad UltraNav
Keyboard type:	Full size
Keyboard light:	Yes
ReturnBack to top

Power Management 5
Heat emissions:	90W
Sound emissions:	40dB
Battery life - min/max:	--
Battery type(s):	6 Cell Lithium-Ion
Charge time - on/off:	6Hrs / 3.5Hrs
ReturnBack to top

Expansion Options
Plug and play support:
Slots total (free) and type:	PCI/PCI Express
Parallel port type:
Ports:	External Microphone/Line-In
Headphone / Line out
IEEE 1394
RJ-11
RJ-45
S-Video out
3 USB 2.0
External Display (VGA)
Docking/UltraBase X2
ReturnBack to top

Weight & Dimensions 6
Weight:	2.76Kg
Height:	40.2mm
Width: 	332mm
Depth: 	269mm
Travel weight:	2.81Kgs

Identifikace pod Linuxem

00:00.0 Host bridge: Intel Corporation Mobile 945GM/PM/GMS/940GML and 945GT Express Memory Controller Hub (rev 03)
00:01.0 PCI bridge: Intel Corporation Mobile 945GM/PM/GMS/940GML and 945GT Express PCI Express Root Port (rev 03)
00:1b.0 Audio device: Intel Corporation 82801G (ICH7 Family) High Definition Audio Controller (rev 02)
00:1c.0 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 1 (rev 02)
00:1c.1 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 2 (rev 02)
00:1c.2 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 3 (rev 02)
00:1c.3 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 4 (rev 02)
00:1d.0 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #1 (rev 02)
00:1d.1 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #2 (rev 02)
00:1d.2 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #3 (rev 02)
00:1d.3 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #4 (rev 02)
00:1d.7 USB Controller: Intel Corporation 82801G (ICH7 Family) USB2 EHCI Controller (rev 02)
00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev e2)
00:1f.0 ISA bridge: Intel Corporation 82801GBM (ICH7-M) LPC Interface Bridge (rev 02)
00:1f.1 IDE interface: Intel Corporation 82801G (ICH7 Family) IDE Controller (rev 02)
00:1f.2 SATA controller: Intel Corporation 82801GBM/GHM (ICH7 Family) Serial ATA Storage Controller AHCI (rev 02)
00:1f.3 SMBus: Intel Corporation 82801G (ICH7 Family) SMBus Controller (rev 02)
01:00.0 VGA compatible controller: ATI Technologies Inc Radeon Mobility X1400
02:00.0 Ethernet controller: Broadcom Corporation NetXtreme BCM5751M Gigabit Ethernet PCI Express (rev 21)
03:00.0 Network controller: Intel Corporation PRO/Wireless 3945ABG Network Connection (rev 02)
15:00.0 CardBus bridge: Texas Instruments PCIxx12 Cardbus Controller
15:00.1 FireWire (IEEE 1394): Texas Instruments PCIxx12 OHCI Compliant IEEE 1394 Host Controller

Postup zprovoznění pod Linuxem

Všechny základní komponenty funkční přímo po instalaci, grafická karta rozchozena s fglrx ovladačem.

Poznámka

hdparm -tT /dev/sda

/dev/sda:
 Timing cached reads:   1956 MB in  2.00 seconds = 978.22 MB/sec
 Timing buffered disk reads:  112 MB in  3.03 seconds =  36.99 MB/sec

s2ram funguje bezproblému, stačí následující drobná úprava konfigurace:

/etc/pm/config doplnit S2RAM_OPTS="-f"

s2disk je taky funkční, testy provádím na aktuálním kernelu openSUSE 10.2 a sice 2.6.18.8-0.3-default

teplotu, otáčky atd monitoruju v KDE pomocí apletu Kima z výstupu:

/proc/acpi/ibm/thermal

Baterii monitoruju apletem KThinkBat, bere si obvykle kolem 19W a výdrž tak 2,5h

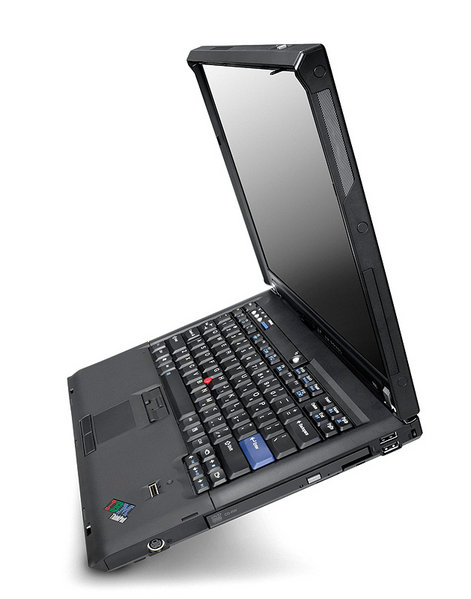

Obrázky
