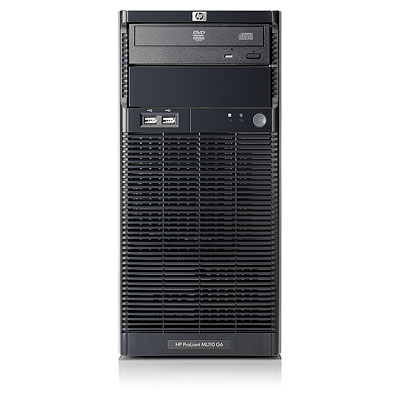

HP ProLiant ML110 G6

Podpora:	kompletní
Ovladač:	v jádře

Technické parametry

HP ProLiant ML110G6 Micro ATX tower 4U
Procesor: Intel Pentium Dual-Core G6950 s frekvencí 2,8 GHz
3 MB L3 Cache, 2 jádra, 2 thready, Max TDP: 73 W
Čipová sada: Intel 3420
Paměť: 1x 2 GB DDR3 ECC Unbuffered
Grafická karta: Integrovaná
Disky a řadiče:
SATA řadič Smart Array B110i s podporou RAID 0/1/10
Osazený disk 1x 250 GB, Serial ATA, 7200 RPM, LFF, Non-Hot-Plug
Mechanika: DVD-ROM
Síťová karta: HP NC107i PCI Express Gigabit Ethernet Server Adapter
Rozšiřující pozice:
4x 3,5" interní pro Serial ATA disky (1x obsazená)
2x 5,25" externí (1 obsazená)
Porty:
1x Sériový port
1x eSATA
8x USB 2.0 (4 vzadu, 2 vpředu, 2 vnitřní)
1x RJ-45
1x VGA
Napájecí zdroj: ATX 300 W Non-Hot-Plug
Vstupní napětí: AC 100 - 240 V, 50 - 60 Hz
Účinnost: až 80%
Skříň: Tower (4U)
Operační systém: Gentoo Linux 64bit

Identifikace pod Linuxem

lshw
proliant
    description: Tower Computer
    product: ProLiant ML110 G6
    vendor: HP
    version: N/A
    serial: CZ103800ZC
    width: 64 bits
    capabilities: smbios-2.6 dmi-2.6 vsyscall64 vsyscall32
    configuration: administrator_password=disabled boot=normal chassis=tower frontpanel_password=unknown keyboard_password=unknown power-on_password=disabled uuid=30F10C06-30F5-4513-30F5-451335F5ACFF
  *-core
       description: Motherboard
       product: ProLiant ML110 G6
       vendor: Wistron Corporation
       physical id: 0
       serial: 0123456789
     *-firmware
          description: BIOS
          vendor: HP
          physical id: 0
          version: O27 (09/06/2010)
          size: 119KiB
          capacity: 1984KiB
          capabilities: pci pnp apm upgrade shadowing escd cdboot bootselect socketedrom edd int5printscreen int9keyboard int14serial int17printer int10video acpi usb smartbattery biosbootspecification netboot
     *-cpu
          description: CPU
          product: Intel(R) Pentium(R) CPU        G6950  @ 2.80GHz
          vendor: Intel Corp.
          physical id: 4
          bus info: cpu@0
          version: Intel(R) Pentium(R) CPU        G6950  @ 2.80GHz
          slot: CPU 1
          size: 2793MHz
          capacity: 3200MHz
          width: 64 bits
          clock: 133MHz
          capabilities: fpu fpu_exception wp vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp x86-64 constant_tsc arch_perfmon pebs bts rep_good xtopology nonstop_tsc aperfmperf pni dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm popcnt lahf_lm arat tpr_shadow vnmi flexpriority ept vpid cpufreq
        *-cache:0
             description: L1 cache
             physical id: 5
             slot: L1 Cache
             size: 256KiB
             capacity: 256KiB
             capabilities: asynchronous internal write-back data
        *-cache:1
             description: L2 cache
             physical id: 6
             slot: L2 Cache
             size: 1MiB
             capacity: 1MiB
             capabilities: burst internal write-back unified
        *-cache:2
             description: L3 cache
             physical id: 7
             slot: L3 Cache
             size: 3MiB
             capacity: 8MiB
             capabilities: burst internal write-back unified
     *-memory
          description: System Memory
          physical id: 1a
          slot: System board or motherboard
          size: 2GiB
        *-bank:0
             description: DIMM Synchronous 1332 MHz (0.8 ns)
             physical id: 0
             slot: DIMM2A
             size: 2GiB
             width: 64 bits
             clock: 1332MHz (0.8ns)
        *-bank:1
             description: DIMM Synchronous [empty]
             physical id: 1
             slot: DIMM1C
        *-bank:2
             description: DIMM Synchronous [empty]
             physical id: 2
             slot: DIMM4B
        *-bank:3
             description: DIMM Synchronous [empty]
             physical id: 3
             slot: DIMM3D
     *-pci
          description: Host bridge
          product: Arrandale/Clarkdale DRAM Controller
          vendor: Intel Corporation
          physical id: 100
          bus info: pci@0000:00:00.0
          version: 12
          width: 32 bits
          clock: 33MHz
        *-pci:0
             description: PCI bridge
             product: Intel Corporation
             vendor: Intel Corporation
             physical id: 1
             bus info: pci@0000:00:01.0
             version: 12
             width: 32 bits
             clock: 33MHz
             capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
        *-usb:0
             description: USB Controller
             product: Ibex Peak USB2 Enhanced Host Controller
             vendor: Intel Corporation
             physical id: 1a
             bus info: pci@0000:00:1a.0
             version: 05
             width: 32 bits
             clock: 33MHz
             capabilities: pm debug ehci bus_master cap_list
             configuration: driver=ehci_hcd latency=0
             resources: irq:16 memory:dfc02000-dfc023ff
           *-usbhost
                product: EHCI Host Controller
                vendor: Linux 2.6.36-gentoo-r5 ehci_hcd
                physical id: 1
                bus info: usb@1
                logical name: usb1
                version: 2.06
                capabilities: usb-2.00
                configuration: driver=hub slots=2 speed=480.0MB/s
              *-usb
                   description: USB hub
                   physical id: 1
                   bus info: usb@1:1
                   version: 0.00
                   capabilities: usb-2.00
                   configuration: driver=hub slots=6 speed=480.0MB/s
                 *-usb
                      description: Human interface device
                      product: Back-UPS BR 900GI FW:879.L1d.I USB FW:L1d
                      vendor: American Power Conversion
                      physical id: 6
                      bus info: usb@1:1.6
                      version: 0.90
                      serial: 3B1037X27963
                      capabilities: usb-2.00
                      configuration: driver=usbhid maxpower=2mA speed=12.0MB/s
        *-pci:1
             description: PCI bridge
             product: Ibex Peak PCI Express Root Port 1
             vendor: Intel Corporation
             physical id: 1c
             bus info: pci@0000:00:1c.0
             version: 05
             width: 32 bits
             clock: 33MHz
             capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
             resources: ioport:2000(size=4096) memory:80000000-801fffff ioport:80200000(size=2097152)
        *-pci:2
             description: PCI bridge
             product: Ibex Peak PCI Express Root Port 2
             vendor: Intel Corporation
             physical id: 1c.1
             bus info: pci@0000:00:1c.1
             version: 05
             width: 32 bits
             clock: 33MHz
             capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
             resources: ioport:3000(size=4096) memory:80400000-805fffff ioport:80600000(size=2097152)
        *-pci:3
             description: PCI bridge
             product: Ibex Peak PCI Express Root Port 3
             vendor: Intel Corporation
             physical id: 1c.2
             bus info: pci@0000:00:1c.2
             version: 05
             width: 32 bits
             clock: 33MHz
             capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
             resources: ioport:4000(size=4096) memory:df000000-df8fffff ioport:de000000(size=16777216)
           *-display UNCLAIMED
                description: VGA compatible controller
                product: MGA G200e [Pilot] ServerEngines (SEP1)
                vendor: Matrox Graphics, Inc.
                physical id: 0
                bus info: pci@0000:1c:00.0
                version: 02
                width: 32 bits
                clock: 33MHz
                capabilities: pm pciexpress msi vga_controller bus_master cap_list
                configuration: latency=0
                resources: memory:de000000-deffffff memory:df800000-df803fff memory:df000000-df7fffff memory:df810000-df81ffff
        *-pci:4
             description: PCI bridge
             product: Ibex Peak PCI Express Root Port 4
             vendor: Intel Corporation
             physical id: 1c.3
             bus info: pci@0000:00:1c.3
             version: 05
             width: 32 bits
             clock: 33MHz
             capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
             resources: ioport:5000(size=4096) memory:df900000-df9fffff ioport:80800000(size=2097152)
           *-network
                description: Ethernet interface
                product: NetXtreme BCM5723 Gigabit Ethernet PCIe
                vendor: Broadcom Corporation
                physical id: 0
                bus info: pci@0000:1e:00.0
                logical name: eth0
                version: 10
                serial: 68:b5:99:4f:c6:4c
                size: 100MB/s
                capacity: 1GB/s
                width: 64 bits
                clock: 33MHz
                capabilities: pm vpd msi pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt 1000bt-fd autonegotiation
                configuration: autonegotiation=on broadcast=yes driver=tg3 driverversion=3.113 duplex=full firmware=5723-v3.35, IPMILITE v8.07 ip=192.168.3.100 latency=0 link=yes multicast=yes port=twisted pair speed=100MB/s
                resources: irq:19 memory:df900000-df90ffff
        *-pci:5
             description: PCI bridge
             product: Ibex Peak PCI Express Root Port 5
             vendor: Intel Corporation
             physical id: 1c.4
             bus info: pci@0000:00:1c.4
             version: 05
             width: 32 bits
             clock: 33MHz
             capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
             resources: ioport:6000(size=4096) memory:80a00000-80bfffff ioport:80c00000(size=2097152)
        *-usb:1
             description: USB Controller
             product: Ibex Peak USB2 Enhanced Host Controller
             vendor: Intel Corporation
             physical id: 1d
             bus info: pci@0000:00:1d.0
             version: 05
             width: 32 bits
             clock: 33MHz
             capabilities: pm debug ehci bus_master cap_list
             configuration: driver=ehci_hcd latency=0
             resources: irq:23 memory:dfc03000-dfc033ff
           *-usbhost
                product: EHCI Host Controller
                vendor: Linux 2.6.36-gentoo-r5 ehci_hcd
                physical id: 1
                bus info: usb@2
                logical name: usb2
                version: 2.06
                capabilities: usb-2.00
                configuration: driver=hub slots=2 speed=480.0MB/s
              *-usb
                   description: USB hub
                   physical id: 1
                   bus info: usb@2:1
                   version: 0.00
                   capabilities: usb-2.00
                   configuration: driver=hub slots=6 speed=480.0MB/s
                 *-usb
                      description: Keyboard
                      product: SE USB Device
                      vendor: ServerEngines
                      physical id: 1
                      bus info: usb@2:1.1
                      version: 0.01
                      serial: 600ED210C4A104
                      capabilities: usb-1.10
                      configuration: driver=usbhid speed=12.0MB/s
        *-pci:6
             description: PCI bridge
             product: 82801 PCI Bridge
             vendor: Intel Corporation
             physical id: 1e
             bus info: pci@0000:00:1e.0
             version: a5
             width: 32 bits
             clock: 33MHz
             capabilities: pci subtractive_decode bus_master cap_list
        *-isa
             description: ISA bridge
             product: Ibex Peak LPC Interface Controller
             vendor: Intel Corporation
             physical id: 1f
             bus info: pci@0000:00:1f.0
             version: 05
             width: 32 bits
             clock: 33MHz
             capabilities: isa bus_master cap_list
             configuration: latency=0
        *-ide:0
             description: IDE interface
             product: Ibex Peak 4 port SATA IDE Controller
             vendor: Intel Corporation
             physical id: 1f.2
             bus info: pci@0000:00:1f.2
             logical name: scsi0
             logical name: scsi1
             version: 05
             width: 32 bits
             clock: 66MHz
             capabilities: ide pm bus_master cap_list emulated
             configuration: driver=ata_piix latency=0
             resources: irq:18 ioport:1830(size=8) ioport:1824(size=4) ioport:1828(size=8) ioport:1820(size=4) ioport:1810(size=16) ioport:1800(size=16)
           *-disk:0
                description: ATA Disk
                product: VB0250EAVER
                physical id: 0
                bus info: scsi@0:0.0.0
                logical name: /dev/sda
                version: HPG0
                serial: 9VMNJFK6
                size: 232GiB (250GB)
                capabilities: partitioned partitioned:dos
                configuration: ansiversion=5 signature=e0c72b8f
              *-volume:0
                   description: Linux raid autodetect partition
                   vendor: Linux
                   physical id: 1
                   bus info: scsi@0:0.0.0,1
                   logical name: /dev/sda1
                   version: 1.0
                   serial: aa61c899-1adc-4055-9333-1ac830436757
                   size: 156MiB
                   capacity: 156MiB
                   capabilities: primary bootable multi extended_attributes ext2 initialized
                   configuration: filesystem=ext2 lastmountpoint=/bootrb}����G�{�����B|���rb}����g�{���������H��}���dN modified=2011-02-20 17:44:40 mounted=2011-02-20 17:43:38 state=clean
              *-volume:1
                   description: Linux swap volume
                   physical id: 2
                   bus info: scsi@0:0.0.0,2
                   logical name: /dev/sda2
                   version: 1
                   serial: 090b407d-2f60-41e2-b1b7-f4ad9556a4f6
                   size: 2055MiB
                   capacity: 2055MiB
                   capabilities: primary nofs swap initialized
                   configuration: filesystem=swap pagesize=4096
              *-volume:2
                   description: EXT3 volume
                   vendor: Linux
                   physical id: 3
                   bus info: scsi@0:0.0.0,3
                   logical name: /dev/sda3
                   version: 1.0
                   serial: 557ce520-6321-4b72-9ba2-1068c7ab7696
                   size: 2055MiB
                   capacity: 2055MiB
                   capabilities: primary multi journaled extended_attributes large_files recover ext3 ext2 initialized
                   configuration: created=2011-01-23 14:39:24 filesystem=ext3 modified=2011-02-20 19:55:33 mounted=2011-02-20 19:55:35 state=clean
              *-volume:3
                   description: Linux raid autodetect partition
                   physical id: 4
                   bus info: scsi@0:0.0.0,4
                   logical name: /dev/sda4
                   serial: Np8sAE-eQC8-U2wm-fKku-QcIr-3vq0-PsptS1
                   size: 228GiB
                   capacity: 228GiB
                   capabilities: primary multi lvm2
           *-disk:1
                description: ATA Disk
                product: ST32000641AS
                vendor: Seagate
                physical id: 1
                bus info: scsi@1:0.0.0
                logical name: /dev/sdb
                version: CC13
                serial: 9WM2VMHS
                size: 1863GiB (2TB)
                capabilities: partitioned partitioned:dos
                configuration: ansiversion=5 signature=88fc74e2
              *-volume:0
                   description: Linux raid autodetect partition
                   vendor: Linux
                   physical id: 1
                   bus info: scsi@1:0.0.0,1
                   logical name: /dev/sdb1
                   version: 1.0
                   serial: aa61c899-1adc-4055-9333-1ac830436757
                   size: 156MiB
                   capacity: 156MiB
                   capabilities: primary bootable multi extended_attributes ext2 initialized
                   configuration: filesystem=ext2 lastmountpoint=/bootrb}����G�{�����B|���rb}����g�{���������H��}���dN modified=2011-02-20 17:44:40 mounted=2011-02-20 17:43:38 state=clean
              *-volume:1
                   description: Linux swap volume
                   physical id: 2
                   bus info: scsi@1:0.0.0,2
                   logical name: /dev/sdb2
                   version: 1
                   serial: 60ba70bb-48c4-47ea-a282-f78caeaeb500
                   size: 2055MiB
                   capacity: 2055MiB
                   capabilities: primary nofs swap initialized
                   configuration: filesystem=swap pagesize=4096
              *-volume:2
                   description: EXT3 volume
                   vendor: Linux
                   physical id: 3
                   bus info: scsi@1:0.0.0,3
                   logical name: /dev/sdb3
                   version: 1.0
                   serial: 557ce520-6321-4b72-9ba2-1068c7ab7696
                   size: 2055MiB
                   capacity: 2055MiB
                   capabilities: primary multi journaled extended_attributes large_files recover ext3 ext2 initialized
                   configuration: created=2011-01-23 14:39:24 filesystem=ext3 modified=2011-02-20 19:55:33 mounted=2011-02-20 19:55:35 state=clean
              *-volume:3
                   description: Extended partition
                   physical id: 4
                   bus info: scsi@1:0.0.0,4
                   logical name: /dev/sdb4
                   size: 1858GiB
                   capacity: 1858GiB
                   capabilities: primary extended partitioned partitioned:extended
                 *-logicalvolume:0
                      description: Linux raid autodetect partition
                      physical id: 5
                      logical name: /dev/sdb5
                      serial: Np8sAE-eQC8-U2wm-fKku-QcIr-3vq0-PsptS1
                      size: 228GiB
                      capacity: 228GiB
                      capabilities: multi lvm2
                 *-logicalvolume:1
                      description: Linux filesystem partition
                      physical id: 6
                      logical name: /dev/sdb6
                      capacity: 1630GiB
        *-serial
             description: SMBus
             product: Ibex Peak SMBus Controller
             vendor: Intel Corporation
             physical id: 1f.3
             bus info: pci@0000:00:1f.3
             version: 05
             width: 64 bits
             clock: 33MHz
             configuration: driver=i801_smbus latency=0
             resources: irq:18 memory:dfc04000-dfc040ff ioport:1840(size=32)
        *-ide:1
             description: IDE interface
             product: Ibex Peak 2 port SATA IDE Controller
             vendor: Intel Corporation
             physical id: 1f.5
             bus info: pci@0000:00:1f.5
             version: 05
             width: 32 bits
             clock: 66MHz
             capabilities: ide pm bus_master cap_list
             configuration: driver=ata_piix latency=0
             resources: irq:17 ioport:1888(size=8) ioport:183c(size=4) ioport:1880(size=8) ioport:1838(size=4) ioport:1870(size=16) ioport:1860(size=16)
  *-remoteaccess UNCLAIMED
       vendor: Intel
       physical id: 1
       capabilities: outbound

Postup zprovoznění pod Linuxem

Minimalistická instalace Gentoo Linuxu, disk 250G a 2T v SW RAID 1, zbytek LVM. Zprovoznění senzorů IPMI (ipmiutil). Konfigurace sériové konzole via HP Lights-Out 100i: nastavení v BIOSu, parametr jádra console=ttyS0 115200, do inittab doplnit S0:12345:respawn:/sbin/agetty 115200 ttyS0 vt102, povolit ttyS0 v securetty, pro write přístup založit nového uživatele v LO100.

Poznámka

Velmi pěkný server za dobrou cenu.

Obrázky

Dokument vytvořil: hufhendr, 20.2.2011 20:42 | Poslední úprava: hufhendr, 27.2.2011 15:09 | Historie změn | Zobrazeno: 7595×
