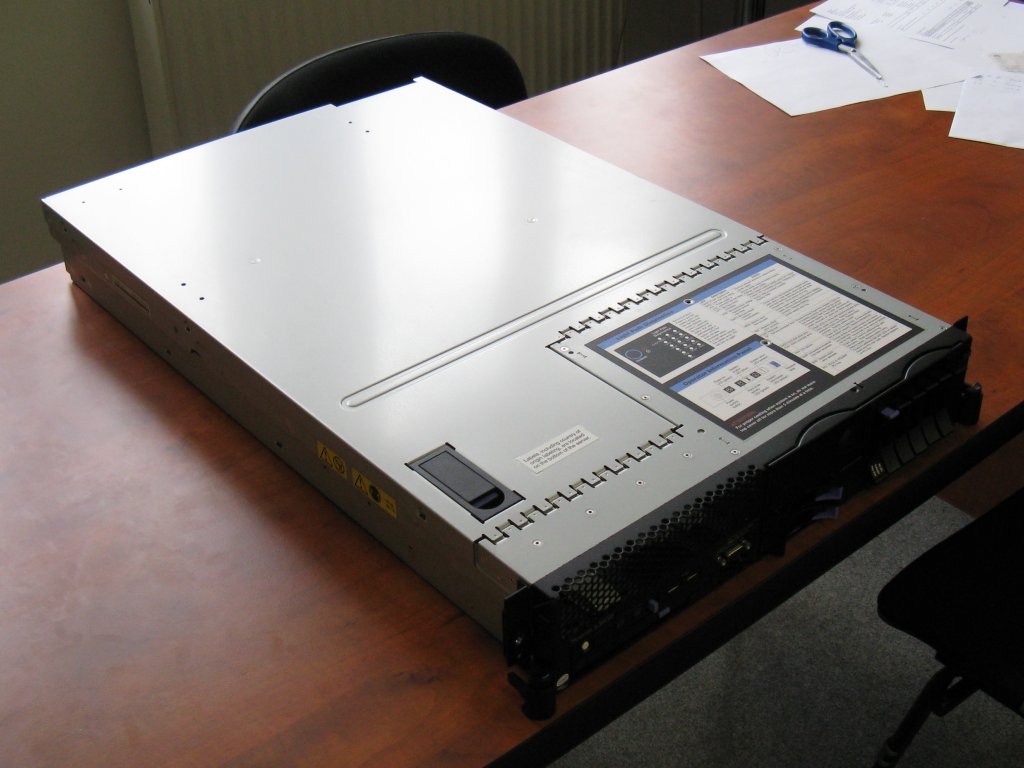

IBM x3650

Podpora:	kompletní
Ovladač:	v jádře

Technické parametry

• 2U server s dobrými možnosťami rozšírenia
• až 8 diskov 2,5" SAS hotplug
• HW RAID
• 2 sloty pre CPU
• 12 slotov pre RAM
• miesto pre páskovú mechaniku
• možnosť dokúpiť reduntatný zdroj



Identifikace pod Linuxem

Linux version 2.6.24.3 (root@sswing) (gcc version 4.1.2 20061115 (prerelease) (Debian 4.1.1-21)) #2 SMP PREEMPT Sun Mar 16 21:53:35 CDT 2008
Command line: auto BOOT_IMAGE=linux ro root=801
BIOS-provided physical RAM map:
 BIOS-e820: 0000000000000000 - 000000000009ac00 (usable)
 BIOS-e820: 000000000009ac00 - 00000000000a0000 (reserved)
 BIOS-e820: 00000000000e0000 - 0000000000100000 (reserved)
 BIOS-e820: 0000000000100000 - 000000007ffcb580 (usable)
 BIOS-e820: 000000007ffcb580 - 000000007ffceac0 (ACPI data)
 BIOS-e820: 000000007ffceac0 - 0000000080000000 (reserved)
 BIOS-e820: 00000000e0000000 - 00000000f0000000 (reserved)
 BIOS-e820: 00000000fec00000 - 0000000100000000 (reserved)
Entering add_active_range(0, 0, 154) 0 entries of 256 used
Entering add_active_range(0, 256, 524235) 1 entries of 256 used
end_pfn_map = 1048576
DMI 2.4 present.
ACPI: RSDP 000FDFD0, 0024 (r2 IBM   )
ACPI: XSDT 7FFCE9C0, 0044 (r1 IBM    SERVALNT     1000 IBM  45444F43)
ACPI: FACP 7FFCE900, 0084 (r2 IBM    SERVALNT     1000 IBM  45444F43)
ACPI: DSDT 7FFCB580, 26AD (r2 IBM    SERVALNT     1000 INTL 20041203)
ACPI: FACS 7FFCE780, 0040
ACPI: APIC 7FFCE840, 0084 (r1 IBM    SERVALNT     1000 IBM  45444F43)
ACPI: HPET 7FFCE800, 0038 (r1 IBM    SERVALNT     1000 IBM  45444F43)
ACPI: MCFG 7FFCE7C0, 003C (r1 IBM    SERVALNT     1000 IBM  45444F43)
Entering add_active_range(0, 0, 154) 0 entries of 256 used
Entering add_active_range(0, 256, 524235) 1 entries of 256 used
Zone PFN ranges:
  DMA             0 ->     4096
  DMA32        4096 ->  1048576
  Normal    1048576 ->  1048576
Movable zone start PFN for each node
early_node_map[2] active PFN ranges
    0:        0 ->      154
    0:      256 ->   524235
On node 0 totalpages: 524133
  DMA zone: 56 pages used for memmap
  DMA zone: 1103 pages reserved
  DMA zone: 2835 pages, LIFO batch:0
  DMA32 zone: 7111 pages used for memmap
  DMA32 zone: 513028 pages, LIFO batch:31
  Normal zone: 0 pages used for memmap
  Movable zone: 0 pages used for memmap
ACPI: PM-Timer IO Port: 0x588
ACPI: Local APIC address 0xfee00000
ACPI: LAPIC (acpi_id[0x00] lapic_id[0x00] enabled)
Processor #0 (Bootup-CPU)
ACPI: LAPIC (acpi_id[0x01] lapic_id[0x01] enabled)
Processor #1
ACPI: LAPIC (acpi_id[0x02] lapic_id[0x02] enabled)
Processor #2
ACPI: LAPIC (acpi_id[0x03] lapic_id[0x03] enabled)
Processor #3
ACPI: LAPIC_NMI (acpi_id[0x00] dfl dfl lint[0x1])
ACPI: LAPIC_NMI (acpi_id[0x01] dfl dfl lint[0x1])
ACPI: LAPIC_NMI (acpi_id[0x02] dfl dfl lint[0x1])
ACPI: LAPIC_NMI (acpi_id[0x03] dfl dfl lint[0x1])
ACPI: IOAPIC (id[0x0e] address[0xfec00000] gsi_base[0])
IOAPIC[0]: apic_id 14, address 0xfec00000, GSI 0-23
ACPI: INT_SRC_OVR (bus 0 bus_irq 0 global_irq 2 dfl dfl)
ACPI: INT_SRC_OVR (bus 0 bus_irq 9 global_irq 9 high level)
ACPI: IRQ0 used by override.
ACPI: IRQ2 used by override.
ACPI: IRQ9 used by override.
Setting APIC routing to flat
ACPI: HPET id: 0x8086a201 base: 0xfed00000
Using ACPI (MADT) for SMP configuration information
swsusp: Registered nosave memory region: 000000000009a000 - 000000000009b000
swsusp: Registered nosave memory region: 000000000009b000 - 00000000000a0000
swsusp: Registered nosave memory region: 00000000000a0000 - 00000000000e0000
swsusp: Registered nosave memory region: 00000000000e0000 - 0000000000100000
Allocating PCI resources starting at 88000000 (gap: 80000000:60000000)
SMP: Allowing 4 CPUs, 0 hotplug CPUs
PERCPU: Allocating 32864 bytes of per cpu data
Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 515863
Kernel command line: auto BOOT_IMAGE=linux ro root=801
Initializing CPU#0
PID hash table entries: 4096 (order: 12, 32768 bytes)
hpet clockevent registered
TSC calibrated against HPET
time.c: Detected 1995.000 MHz processor.
Console: colour VGA+ 80x25
console [tty0] enabled
Dentry cache hash table entries: 262144 (order: 9, 2097152 bytes)
Inode-cache hash table entries: 131072 (order: 8, 1048576 bytes)
Checking aperture...
Calgary: detecting Calgary via BIOS EBDA area
Calgary: Unable to locate Rio Grande table in EBDA - bailing!
Memory: 2060092k/2096940k available (2485k kernel code, 36376k reserved, 1151k data, 236k init)
SLUB: Genslabs=11, HWalign=64, Order=0-1, MinObjects=4, CPUs=4, Nodes=1
Calibrating delay using timer specific routine.. 3992.40 BogoMIPS (lpj=1996201)
Security Framework initialized
SELinux:  Initializing.
SELinux:  Starting in permissive mode
Mount-cache hash table entries: 256
CPU: L1 I cache: 32K, L1 D cache: 32K
CPU: L2 cache: 4096K
using mwait in idle threads.
CPU: Physical Processor ID: 0
CPU: Processor Core ID: 0
CPU0: Thermal monitoring enabled (TM2)
SMP alternatives: switching to UP code
ACPI: Core revision 20070126
Using local APIC timer interrupts.
APIC timer calibration result 20781254
Detected 20.781 MHz APIC timer.
SMP alternatives: switching to SMP code
Booting processor 1/4 APIC 0x1
Initializing CPU#1
Calibrating delay using timer specific routine.. 3990.00 BogoMIPS (lpj=1995001)
CPU: L1 I cache: 32K, L1 D cache: 32K
CPU: L2 cache: 4096K
CPU: Physical Processor ID: 0
CPU: Processor Core ID: 1
CPU1: Thermal monitoring enabled (TM2)
Intel(R) Xeon(R) CPU           E5335  @ 2.00GHz stepping 0b
checking TSC synchronization [CPU#0 -> CPU#1]: passed.
SMP alternatives: switching to SMP code
Booting processor 2/4 APIC 0x2
Initializing CPU#2
Calibrating delay using timer specific routine.. 3990.00 BogoMIPS (lpj=1995003)
CPU: L1 I cache: 32K, L1 D cache: 32K
CPU: L2 cache: 4096K
CPU: Physical Processor ID: 0
CPU: Processor Core ID: 2
CPU2: Thermal monitoring enabled (TM2)
Intel(R) Xeon(R) CPU           E5335  @ 2.00GHz stepping 0b
checking TSC synchronization [CPU#0 -> CPU#2]: passed.
SMP alternatives: switching to SMP code
Booting processor 3/4 APIC 0x3
Initializing CPU#3
Calibrating delay using timer specific routine.. 3990.01 BogoMIPS (lpj=1995008)
CPU: L1 I cache: 32K, L1 D cache: 32K
CPU: L2 cache: 4096K
CPU: Physical Processor ID: 0
CPU: Processor Core ID: 3
CPU3: Thermal monitoring enabled (TM2)
Intel(R) Xeon(R) CPU           E5335  @ 2.00GHz stepping 0b
checking TSC synchronization [CPU#0 -> CPU#3]: passed.
Brought up 4 CPUs
net_namespace: 120 bytes
NET: Registered protocol family 16
ACPI: bus type pci registered
PCI: Using MMCONFIG at e0000000 - e25fffff
ACPI: EC: Look up EC in DSDT
ACPI: Interpreter enabled
ACPI: (supports S0 S4 S5)
ACPI: Using IOAPIC for interrupt routing
ACPI: PCI Root Bridge [PCI0] (0000:00)
PCI: Transparent bridge - 0000:00:1e.0
ACPI: PCI Interrupt Routing Table [\_SB_.PCI0._PRT]
ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PCI4.PCI5.PCI6._PRT]
ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PCI4.PCI5.PCI7._PRT]
ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PCIS._PRT]
ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PCI2._PRT]
ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PC2B._PRT]
ACPI: PCI Interrupt Link [LP00] (IRQs *3)
ACPI: PCI Interrupt Link [LP01] (IRQs *10)
ACPI: PCI Interrupt Link [LP02] (IRQs *11)
ACPI: Blank IRQ resource
ACPI: Resource is not an IRQ entry
ACPI: PCI Interrupt Link [LP03] (IRQs) *0, disabled.
ACPI: PCI Interrupt Link [LP04] (IRQs *3)
ACPI: Blank IRQ resource
ACPI: Resource is not an IRQ entry
ACPI: PCI Interrupt Link [LP05] (IRQs) *0, disabled.
ACPI: PCI Interrupt Link [LP06] (IRQs *11)
ACPI: PCI Interrupt Link [LP07] (IRQs *5)
Linux Plug and Play Support v0.97 (c) Adam Belay
pnp: PnP ACPI init
ACPI: bus type pnp registered
pnp: PnP ACPI: found 11 devices
ACPI: ACPI bus type pnp unregistered
SCSI subsystem initialized
libata version 3.00 loaded.
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
PCI: Using ACPI for IRQ routing
PCI: If a device doesn't work, try "pci=routeirq".  If it helps, post a report
DMAR:No DMAR devices found
PCI-GART: No AMD northbridge found.
Time: tsc clocksource has been installed.
system 00:01: ioport range 0x520-0x53f has been reserved
system 00:01: ioport range 0x540-0x547 has been reserved
system 00:08: ioport range 0xca8-0xca8 has been reserved
system 00:08: ioport range 0xcac-0xcac has been reserved
system 00:09: ioport range 0x400-0x43f has been reserved
system 00:09: ioport range 0x4d0-0x4d1 has been reserved
system 00:09: ioport range 0x540-0x55f could not be reserved
system 00:09: ioport range 0x560-0x57f has been reserved
system 00:09: ioport range 0x580-0x5ff has been reserved
system 00:09: ioport range 0x800-0x80f has been reserved
system 00:09: iomem range 0xe0000000-0xefffffff could not be reserved
system 00:09: iomem range 0xfecc0000-0xfecc3fff has been reserved
system 00:09: iomem range 0xfe000000-0xfe01ffff has been reserved
system 00:09: iomem range 0xfe020000-0xfe6fffff has been reserved
system 00:09: iomem range 0xfe700400-0xfebfffff has been reserved
system 00:09: iomem range 0xfff00000-0xffffffff has been reserved
PCI: Bridge: 0000:1b:00.0
  IO window: disabled.
  MEM window: disabled.
  PREFETCH window: disabled.
PCI: Bridge: 0000:1b:01.0
  IO window: disabled.
  MEM window: disabled.
  PREFETCH window: disabled.
PCI: Bridge: 0000:1a:00.0
  IO window: disabled.
  MEM window: disabled.
  PREFETCH window: disabled.
PCI: Bridge: 0000:1a:00.3
  IO window: disabled.
  MEM window: disabled.
  PREFETCH window: disabled.
PCI: Bridge: 0000:00:02.0
  IO window: disabled.
  MEM window: disabled.
  PREFETCH window: disabled.
PCI: Bridge: 0000:00:03.0
  IO window: 5000-5fff
  MEM window: c8000000-c9ffffff
  PREFETCH window: c7f00000-c7ffffff
PCI: Bridge: 0000:00:04.0
  IO window: 6000-ffff
  MEM window: disabled.
  PREFETCH window: disabled.
PCI: Bridge: 0000:00:05.0
  IO window: disabled.
  MEM window: disabled.
  PREFETCH window: disabled.
PCI: Bridge: 0000:00:06.0
  IO window: disabled.
  MEM window: disabled.
  PREFETCH window: disabled.
PCI: Bridge: 0000:00:07.0
  IO window: disabled.
  MEM window: disabled.
  PREFETCH window: disabled.
PCI: Bridge: 0000:02:00.0
  IO window: disabled.
  MEM window: cd000000-cfffffff
  PREFETCH window: disabled.
PCI: Bridge: 0000:00:1c.0
  IO window: disabled.
  MEM window: cd000000-cfffffff
  PREFETCH window: disabled.
PCI: Bridge: 0000:05:00.0
  IO window: disabled.
  MEM window: ca000000-ccffffff
  PREFETCH window: disabled.
PCI: Bridge: 0000:00:1c.1
  IO window: disabled.
  MEM window: ca000000-ccffffff
  PREFETCH window: disabled.
PCI: Bridge: 0000:00:1e.0
  IO window: 3000-4fff
  MEM window: de000000-dfffffff
  PREFETCH window: d0000000-ddffffff
PCI: Setting latency timer of device 0000:00:02.0 to 64
PCI: Setting latency timer of device 0000:1a:00.0 to 64
PCI: Setting latency timer of device 0000:1b:00.0 to 64
ACPI: PCI Interrupt 0000:1b:01.0[A] -> GSI 17 (level, low) -> IRQ 17
PCI: Setting latency timer of device 0000:1b:01.0 to 64
PCI: Setting latency timer of device 0000:1a:00.3 to 64
PCI: Setting latency timer of device 0000:00:03.0 to 64
PCI: Setting latency timer of device 0000:00:04.0 to 64
PCI: Setting latency timer of device 0000:00:05.0 to 64
PCI: Setting latency timer of device 0000:00:06.0 to 64
PCI: Setting latency timer of device 0000:00:07.0 to 64
ACPI: PCI Interrupt 0000:00:1c.0[A] -> GSI 21 (level, low) -> IRQ 21
PCI: Setting latency timer of device 0000:00:1c.0 to 64
PCI: Setting latency timer of device 0000:02:00.0 to 64
ACPI: PCI Interrupt 0000:00:1c.1[B] -> GSI 20 (level, low) -> IRQ 20
PCI: Setting latency timer of device 0000:00:1c.1 to 64
PCI: Setting latency timer of device 0000:05:00.0 to 64
PCI: Setting latency timer of device 0000:00:1e.0 to 64
NET: Registered protocol family 2
IP route cache hash table entries: 65536 (order: 7, 524288 bytes)
TCP established hash table entries: 262144 (order: 10, 4194304 bytes)
TCP bind hash table entries: 65536 (order: 8, 1048576 bytes)
TCP: Hash tables configured (established 262144 bind 65536)
TCP reno registered
IA-32 Microcode Update Driver: v1.14
audit: initializing netlink socket (disabled)
audit(1205722696.400:1): initialized
VFS: Disk quotas dquot_6.5.1
Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
SELinux:  Registering netfilter hooks
io scheduler noop registered
io scheduler anticipatory registered (default)
io scheduler deadline registered
io scheduler cfq registered
Boot video device is 0000:01:06.0
PCI: Setting latency timer of device 0000:00:02.0 to 64
assign_interrupt_mode Found MSI capability
Allocate Port Service[0000:00:02.0:pcie00]
Allocate Port Service[0000:00:02.0:pcie01]
PCI: Setting latency timer of device 0000:00:03.0 to 64
assign_interrupt_mode Found MSI capability
Allocate Port Service[0000:00:03.0:pcie00]
Allocate Port Service[0000:00:03.0:pcie01]
PCI: Setting latency timer of device 0000:00:04.0 to 64
assign_interrupt_mode Found MSI capability
Allocate Port Service[0000:00:04.0:pcie00]
Allocate Port Service[0000:00:04.0:pcie01]
PCI: Setting latency timer of device 0000:00:05.0 to 64
assign_interrupt_mode Found MSI capability
Allocate Port Service[0000:00:05.0:pcie00]
Allocate Port Service[0000:00:05.0:pcie01]
PCI: Setting latency timer of device 0000:00:06.0 to 64
assign_interrupt_mode Found MSI capability
Allocate Port Service[0000:00:06.0:pcie00]
Allocate Port Service[0000:00:06.0:pcie01]
PCI: Setting latency timer of device 0000:00:07.0 to 64
assign_interrupt_mode Found MSI capability
Allocate Port Service[0000:00:07.0:pcie00]
Allocate Port Service[0000:00:07.0:pcie01]
PCI: Setting latency timer of device 0000:00:1c.0 to 64
assign_interrupt_mode Found MSI capability
Allocate Port Service[0000:00:1c.0:pcie00]
Allocate Port Service[0000:00:1c.0:pcie03]
PCI: Setting latency timer of device 0000:00:1c.1 to 64
assign_interrupt_mode Found MSI capability
Allocate Port Service[0000:00:1c.1:pcie00]
Allocate Port Service[0000:00:1c.1:pcie03]
PCI: Setting latency timer of device 0000:1a:00.0 to 64
Allocate Port Service[0000:1a:00.0:pcie10]
Allocate Port Service[0000:1a:00.0:pcie11]
PCI: Setting latency timer of device 0000:1b:00.0 to 64
assign_interrupt_mode Found MSI capability
Allocate Port Service[0000:1b:00.0:pcie20]
Allocate Port Service[0000:1b:00.0:pcie21]
PCI: Setting latency timer of device 0000:1b:01.0 to 64
assign_interrupt_mode Found MSI capability
Allocate Port Service[0000:1b:01.0:pcie20]
Allocate Port Service[0000:1b:01.0:pcie21]
AER service couldn't init device 0000:00:02.0:pcie01 - no _OSC support
AER service couldn't init device 0000:00:03.0:pcie01 - no _OSC support
AER service couldn't init device 0000:00:04.0:pcie01 - no _OSC support
AER service couldn't init device 0000:00:05.0:pcie01 - no _OSC support
AER service couldn't init device 0000:00:06.0:pcie01 - no _OSC support
AER service couldn't init device 0000:00:07.0:pcie01 - no _OSC support
ACPI: PCI Interrupt 0000:01:06.0[A] -> GSI 22 (level, low) -> IRQ 22
radeonfb: Found Intel x86 BIOS ROM Image
radeonfb: Retrieved PLL infos from BIOS
radeonfb: Reference=27.00 MHz (RefDiv=60) Memory=200.00 Mhz, System=200.00 MHz
radeonfb: PLL min 12000 max 35000
radeonfb: Reversed TMDS detected
Switched to NOHz mode on CPU #3
Switched to NOHz mode on CPU #2
Switched to NOHz mode on CPU #1
Switched to NOHz mode on CPU #0
radeonfb: Monitor 1 type CRT found
radeonfb: EDID probed
radeonfb: Monitor 2 type DFP found
radeonfb: EDID probed
Console: switching to colour frame buffer device 160x64
mtrr: type mismatch for d0000000,1000000 old: write-back new: write-combining
radeonfb (0000:01:06.0): ATI Radeon Q^
input: Power Button (FF) as /devices/virtual/input/input0
ACPI: Power Button (FF) [PWRF]
ACPI: Processor [CPU0] (supports 8 throttling states)
ACPI: Processor [CPU1] (supports 8 throttling states)
ACPI: Processor [CPU2] (supports 8 throttling states)
ACPI: Processor [CPU3] (supports 8 throttling states)
Linux agpgart interface v0.102
[drm] Initialized drm 1.1.0 20060810
floppy0: no floppy controllers found
RAMDISK driver initialized: 16 RAM disks of 4096K size 1024 blocksize
Adaptec aacraid driver 1.1-5[2449]-ms
ACPI: PCI Interrupt 0000:04:00.0[A] -> GSI 17 (level, low) -> IRQ 17
PCI: Setting latency timer of device 0000:04:00.0 to 64
AAC0: kernel 5.2-0[15412] Nov 12 2007
AAC0: monitor 5.2-0[15412]
AAC0: bios 5.2-0[15412]
AAC0: serial 402E01A
AAC0: 64bit support enabled.
AAC0: 64 Bit DAC enabled
scsi0 : ServeRAID
scsi 0:0:0:0: Direct-Access     ServeRA  root (RAID 1)    V1.0 PQ: 0 ANSI: 2
scsi 0:1:1:0: Direct-Access     WDC      WD2500YS-23SHB0  6C04 PQ: 0 ANSI: 5
scsi 0:3:0:0: Enclosure         IBM-ESXS VSC7160          1.06 PQ: 0 ANSI: 3
Driver 'sd' needs updating - please use bus_type methods
sd 0:0:0:0: [sda] 488017920 512-byte hardware sectors (249865 MB)
sd 0:0:0:0: [sda] Write Protect is off
sd 0:0:0:0: [sda] Mode Sense: 06 00 10 00
sd 0:0:0:0: [sda] Write cache: enabled, read cache: enabled, supports DPO and FUA
sd 0:0:0:0: [sda] 488017920 512-byte hardware sectors (249865 MB)
sd 0:0:0:0: [sda] Write Protect is off
sd 0:0:0:0: [sda] Mode Sense: 06 00 10 00
sd 0:0:0:0: [sda] Write cache: enabled, read cache: enabled, supports DPO and FUA
 sda: sda1 sda2
sd 0:0:0:0: [sda] Attached SCSI removable disk
Driver 'sr' needs updating - please use bus_type methods
sd 0:0:0:0: Attached scsi generic sg0 type 0
scsi 0:1:1:0: Attached scsi generic sg1 type 0
scsi 0:3:0:0: Attached scsi generic sg2 type 13
SCSI Media Changer driver v0.25
Driver 'ch' needs updating - please use bus_type methods
ata_piix 0000:00:1f.2: version 2.12
ata_piix 0000:00:1f.2: MAP [ P0 P2 IDE IDE ]
ACPI: PCI Interrupt 0000:00:1f.2[B] -> GSI 20 (level, low) -> IRQ 20
PCI: Setting latency timer of device 0000:00:1f.2 to 64
scsi1 : ata_piix
scsi2 : ata_piix
ata1: SATA max UDMA/133 cmd 0x1f0 ctl 0x3f6 bmdma 0x480 irq 14
ata2: PATA max UDMA/100 cmd 0x170 ctl 0x376 bmdma 0x488 irq 15
ata2.00: ATAPI: HL-DT-STCD-RW/DVD DRIVE GCC-T10N, 1.00, max UDMA/33
ata2.00: configured for UDMA/33
scsi 2:0:0:0: CD-ROM            HL-DT-ST RW/DVD GCC-T10N  1.00 PQ: 0 ANSI: 5
sr0: scsi3-mmc drive: 24x/24x writer cd/rw xa/form2 cdda tray
Uniform CD-ROM driver Revision: 3.20
sr 2:0:0:0: Attached scsi CD-ROM sr0
sr 2:0:0:0: Attached scsi generic sg3 type 5
usbmon: debugfs is not available
PNP: No PS/2 controller found. Probing ports directly.
serio: i8042 KBD port at 0x60,0x64 irq 1
mice: PS/2 mouse device common for all mice
device-mapper: uevent: version 1.0.3
device-mapper: ioctl: 4.12.0-ioctl (2007-10-02) initialised: dm-devel@redhat.com
device-mapper: multipath: version 1.0.5 loaded
device-mapper: multipath round-robin: version 1.0.0 loaded
device-mapper: multipath emc: version 0.0.3 loaded
device-mapper: multipath hp-sw: version 1.0.0 loaded
device-mapper: multipath rdac: rdac: version 0.4 loaded
GACT probability on
TCP cubic registered
NET: Registered protocol family 1
NET: Registered protocol family 17
BIOS EDD facility v0.16 2004-Jun-25, 6 devices found
kjournald starting.  Commit interval 5 seconds
EXT3-fs: mounted filesystem with ordered data mode.
VFS: Mounted root (ext3 filesystem) readonly.
Freeing unused kernel memory: 236k freed
Real Time Clock Driver v1.12ac
intel_rng: FWH not detected
Broadcom NetXtreme II Gigabit Ethernet Driver bnx2 v1.6.9 (December 8, 2007)
ACPI: PCI Interrupt 0000:03:00.0[A] -> GSI 16 (level, low) -> IRQ 16
USB Universal Host Controller Interface driver v3.0
ACPI: PCI Interrupt 0000:00:1d.0[A] -> GSI 23 (level, low) -> IRQ 23
PCI: Setting latency timer of device 0000:00:1d.0 to 64
uhci_hcd 0000:00:1d.0: UHCI Host Controller
input: PC Speaker as /devices/platform/pcspkr/input/input1
uhci_hcd 0000:00:1d.0: new USB bus registered, assigned bus number 1
uhci_hcd 0000:00:1d.0: irq 23, io base 0x00002200
Serial: 8250/16550 driver $Revision: 1.90 $ 4 ports, IRQ sharing disabled
usb usb1: configuration #1 chosen from 1 choice
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 2 ports detected
serial8250: ttyS0 at I/O 0x3f8 (irq = 4) is a 16550A
00:02: ttyS0 at I/O 0x3f8 (irq = 4) is a 16550A
ACPI: PCI Interrupt 0000:00:1d.1[B] -> GSI 22 (level, low) -> IRQ 22
PCI: Setting latency timer of device 0000:00:1d.1 to 64
uhci_hcd 0000:00:1d.1: UHCI Host Controller
uhci_hcd 0000:00:1d.1: new USB bus registered, assigned bus number 2
uhci_hcd 0000:00:1d.1: irq 22, io base 0x00002600
usb usb2: configuration #1 chosen from 1 choice
hub 2-0:1.0: USB hub found
hub 2-0:1.0: 2 ports detected
ACPI: PCI Interrupt 0000:00:1d.2[C] -> GSI 23 (level, low) -> IRQ 23
PCI: Setting latency timer of device 0000:00:1d.2 to 64
uhci_hcd 0000:00:1d.2: UHCI Host Controller
uhci_hcd 0000:00:1d.2: new USB bus registered, assigned bus number 3
uhci_hcd 0000:00:1d.2: irq 23, io base 0x00002a00
usb usb3: configuration #1 chosen from 1 choice
hub 3-0:1.0: USB hub found
hub 3-0:1.0: 2 ports detected
ACPI: PCI Interrupt 0000:00:1d.3[D] -> GSI 22 (level, low) -> IRQ 22
PCI: Setting latency timer of device 0000:00:1d.3 to 64
uhci_hcd 0000:00:1d.3: UHCI Host Controller
uhci_hcd 0000:00:1d.3: new USB bus registered, assigned bus number 4
uhci_hcd 0000:00:1d.3: irq 22, io base 0x00002e00
usb usb4: configuration #1 chosen from 1 choice
hub 4-0:1.0: USB hub found
hub 4-0:1.0: 2 ports detected
iTCO_vendor_support: vendor-support=0
iTCO_wdt: Intel TCO WatchDog Timer Driver v1.02 (26-Jul-2007)
iTCO_wdt: Found a 631xESB/632xESB TCO device (Version=2, TCOBASE=0x05e0)
iTCO_wdt: initialized. heartbeat=30 sec (nowayout=0)
eth0: Broadcom NetXtreme II BCM5708 1000Base-T (B2) PCI-X 64-bit 133MHz found at mem ce000000, IRQ 16, node addr 00:1a:64:67:35:80
ACPI: PCI Interrupt 0000:06:00.0[A] -> GSI 17 (level, low) -> IRQ 17
usb 4-1: new low speed USB device using uhci_hcd and address 2
usb 4-1: configuration #1 chosen from 1 choice
eth1: Broadcom NetXtreme II BCM5708 1000Base-T (B2) PCI-X 64-bit 133MHz found at mem ca000000, IRQ 17, node addr 00:1a:64:67:35:82
ACPI: PCI Interrupt 0000:00:1d.7[A] -> GSI 23 (level, low) -> IRQ 23
PCI: Setting latency timer of device 0000:00:1d.7 to 64
ehci_hcd 0000:00:1d.7: EHCI Host Controller
ehci_hcd 0000:00:1d.7: new USB bus registered, assigned bus number 5
usbcore: registered new interface driver hiddev
ehci_hcd 0000:00:1d.7: debug port 1
PCI: cache line size of 32 is not supported by device 0000:00:1d.7
ehci_hcd 0000:00:1d.7: irq 23, io mem 0xf9000000
ehci_hcd 0000:00:1d.7: USB 2.0 started, EHCI 1.00, driver 10 Dec 2004
usb usb5: configuration #1 chosen from 1 choice
hub 5-0:1.0: USB hub found
hub 5-0:1.0: 8 ports detected
ACPI: PCI Interrupt 0000:00:1f.3[B] -> GSI 20 (level, low) -> IRQ 20
usbcore: registered new interface driver usbhid
usb 4-1: USB disconnect, address 2
drivers/hid/usbhid/hid-core.c: v2.6:USB HID core driver
usb 4-1: new low speed USB device using uhci_hcd and address 3
usb 4-1: configuration #1 chosen from 1 choice
input: CHICONY USB Keyboard as /devices/pci0000:00/0000:00:1d.3/usb4/4-1/4-1:1.0/input/input2
input: USB HID v1.10 Keyboard [CHICONY USB Keyboard] on usb-0000:00:1d.3-1
Adding 9630956k swap on /dev/sda2.  Priority:-1 extents:1 across:9630956k
EXT3 FS on sda1, internal journal
loop: module loaded
bnx2: eth0: using MSI
bnx2: eth0 NIC Copper Link is Up, 100 Mbps full duplex
ipmi message handler version 39.1
ipmi message handler version 39.1
Bridge firewalling registered
br0: Dropping NETIF_F_UFO since no NETIF_F_HW_CSUM feature.
device eth0 entered promiscuous mode
audit(1205724818.538:2): dev=eth0 prom=256 old_prom=0 auid=4294967295
device eth1 entered promiscuous mode
audit(1205724818.548:3): dev=eth1 prom=256 old_prom=0 auid=4294967295
bnx2: eth1: using MSI
br0: port 1(eth0) entering learning state
br0: topology change detected, propagating
br0: port 1(eth0) entering forwarding state
coretemp coretemp.0: Using undocumented features, absolute temperature might be wrong!
coretemp coretemp.1: Using undocumented features, absolute temperature might be wrong!
coretemp coretemp.2: Using undocumented features, absolute temperature might be wrong!
coretemp coretemp.3: Using undocumented features, absolute temperature might be wrong!

00:00.0 Host bridge: Intel Corporation 5000P Chipset Memory Controller Hub (rev b1)
00:02.0 PCI bridge: Intel Corporation 5000 Series Chipset PCI Express x4 Port 2 (rev b1)
00:03.0 PCI bridge: Intel Corporation 5000 Series Chipset PCI Express x4 Port 3 (rev b1)
00:04.0 PCI bridge: Intel Corporation 5000 Series Chipset PCI Express x8 Port 4-5 (rev b1)
00:05.0 PCI bridge: Intel Corporation 5000 Series Chipset PCI Express x4 Port 5 (rev b1)
00:06.0 PCI bridge: Intel Corporation 5000 Series Chipset PCI Express x8 Port 6-7 (rev b1)
00:07.0 PCI bridge: Intel Corporation 5000 Series Chipset PCI Express x4 Port 7 (rev b1)
00:08.0 System peripheral: Intel Corporation 5000 Series Chipset DMA Engine (rev b1)
00:10.0 Host bridge: Intel Corporation 5000 Series Chipset FSB Registers (rev b1)
00:10.1 Host bridge: Intel Corporation 5000 Series Chipset FSB Registers (rev b1)
00:10.2 Host bridge: Intel Corporation 5000 Series Chipset FSB Registers (rev b1)
00:11.0 Host bridge: Intel Corporation 5000 Series Chipset Reserved Registers (rev b1)
00:13.0 Host bridge: Intel Corporation 5000 Series Chipset Reserved Registers (rev b1)
00:15.0 Host bridge: Intel Corporation 5000 Series Chipset FBD Registers (rev b1)
00:16.0 Host bridge: Intel Corporation 5000 Series Chipset FBD Registers (rev b1)
00:1c.0 PCI bridge: Intel Corporation 631xESB/632xESB/3100 Chipset PCI Express Root Port 1 (rev 09)
00:1c.1 PCI bridge: Intel Corporation 631xESB/632xESB/3100 Chipset PCI Express Root Port 2 (rev 09)
00:1d.0 USB Controller: Intel Corporation 631xESB/632xESB/3100 Chipset UHCI USB Controller #1 (rev 09)
00:1d.1 USB Controller: Intel Corporation 631xESB/632xESB/3100 Chipset UHCI USB Controller #2 (rev 09)
00:1d.2 USB Controller: Intel Corporation 631xESB/632xESB/3100 Chipset UHCI USB Controller #3 (rev 09)
00:1d.3 USB Controller: Intel Corporation 631xESB/632xESB/3100 Chipset UHCI USB Controller #4 (rev 09)
00:1d.7 USB Controller: Intel Corporation 631xESB/632xESB/3100 Chipset EHCI USB2 Controller (rev 09)
00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev d9)
00:1f.0 ISA bridge: Intel Corporation 631xESB/632xESB/3100 Chipset LPC Interface Controller (rev 09)
00:1f.2 IDE interface: Intel Corporation 631xESB/632xESB/3100 Chipset SATA IDE Controller (rev 09)
00:1f.3 SMBus: Intel Corporation 631xESB/632xESB/3100 Chipset SMBus Controller (rev 09)
01:06.0 VGA compatible controller: ATI Technologies Inc ES1000 (rev 02)
02:00.0 PCI bridge: Broadcom EPB PCI-Express to PCI-X Bridge (rev c3)
03:00.0 Ethernet controller: Broadcom Corporation NetXtreme II BCM5708 Gigabit Ethernet (rev 12)
04:00.0 RAID bus controller: Adaptec AAC-RAID (Rocket) (rev 02)
05:00.0 PCI bridge: Broadcom EPB PCI-Express to PCI-X Bridge (rev c3)
06:00.0 Ethernet controller: Broadcom Corporation NetXtreme II BCM5708 Gigabit Ethernet (rev 12)
1a:00.0 PCI bridge: Intel Corporation 6311ESB/6321ESB PCI Express Upstream Port (rev 01)
1a:00.3 PCI bridge: Intel Corporation 6311ESB/6321ESB PCI Express to PCI-X Bridge (rev 01)
1b:00.0 PCI bridge: Intel Corporation 6311ESB/6321ESB PCI Express Downstream Port E1 (rev 01)
1b:01.0 PCI bridge: Intel Corporation 6311ESB/6321ESB PCI Express Downstream Port E2 (rev 01)

Postup zprovoznění pod Linuxem



Poznámka

Na monitoring teploty cipu coretemp, na senzory ibmpax a na spravu pole arcconf.

Pri montáži do racku hĺbky menšej ako 100cm nie je možné vzadu nainštalovať rameno na organizovanie káblov.

Obrázky

Dokument vytvořil: CIJOML, 16.3.2008 23:09 | Poslední úprava: AraxoN, 27.2.2011 15:09 | Další přispěvatelé: CIJOML | Historie změn | Zobrazeno: 3866×
