Dell U2412M

Technické parametry

24" 16:10 1920x1200@60
Matny IPS, LED, pivot
8ms, 300 cd/m2

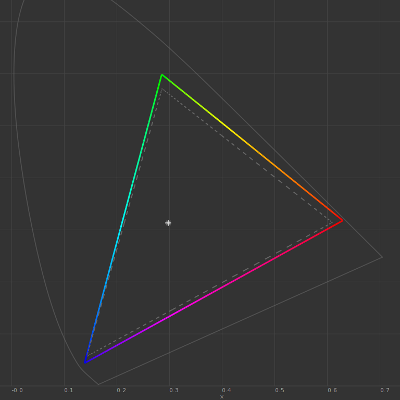

82% CIE 1976, 78% AdobeRGB, 100% sRGB
DVI-D, DP, D-SUB
38-72W
nativne 6bit => FRC

Identifikace pod Linuxem

[     3.197] (II) intel(0): Manufacturer: DEL  Model: a07a  Serial#: 825380435
[     3.197] (II) intel(0): Year: 2012  Week: 51
[     3.197] (II) intel(0): EDID Version: 1.3
[     3.197] (II) intel(0): Digital Display Input
[     3.197] (II) intel(0): Max Image Size [cm]: horiz.: 52  vert.: 32
[     3.197] (II) intel(0): Gamma: 2.20
[     3.197] (II) intel(0): DPMS capabilities: StandBy Suspend Off
[     3.198] (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4
[     3.198] (II) intel(0): First detailed timing is preferred mode
[     3.198] (II) intel(0): redX: 0.640 redY: 0.330   greenX: 0.300 greenY: 0.600
[     3.198] (II) intel(0): blueX: 0.150 blueY: 0.060   whiteX: 0.313 whiteY: 0.329
...
[     3.198] (II) intel(0): #4: hsize: 1920  vsize 1080  refresh: 60  vid: 49361
[     3.198] (II) intel(0): Supported detailed timing:
[     3.198] (II) intel(0): clock: 154.0 MHz   Image Size:  518 x 324 mm
[     3.198] (II) intel(0): h_active: 1920  h_sync: 1968  h_sync_end 2000 h_blank_end 2080 h_border: 0
[     3.198] (II) intel(0): v_active: 1200  v_sync: 1203  v_sync_end 1209 v_blanking: 1235 v_border: 0
[     3.198] (II) intel(0): Serial No: 0FFXD2CM12NS
[     3.198] (II) intel(0): Monitor name: DELL U2412M
[     3.198] (II) intel(0): Ranges: V min: 50 V max: 61 Hz, H min: 30 H max: 83 kHz, PixClock max 175 MHz
[     3.198] (II) intel(0): EDID (in hex):
[     3.198] (II) intel(0):     00ffffffffffff0010ac7aa0534e3231
[     3.198] (II) intel(0):     3316010380342078eaee95a3544c9926
[     3.198] (II) intel(0):     0f5054a1080081408180a940b300d1c0
[     3.198] (II) intel(0):     010101010101283c80a070b023403020
[     3.198] (II) intel(0):     360006442100001a000000ff00304646
[     3.198] (II) intel(0):     584432434d31324e530a000000fc0044
[     3.198] (II) intel(0):     454c4c2055323431324d0a20000000fd
[     3.198] (II) intel(0):     00323d1e5311000a2020202020200010
[     3.198] (II) intel(0): Printing probed modes for output HDMI1
[     3.198] (II) intel(0): Modeline "1920x1200"x60.0  154.00  1920 1968 2000 2080  1200 1203 1209 1235 +hsync -vsync (74.0 kHz eP)
...
[     3.994] (II) intel(0): EDID vendor "DEL", prod id 41082
...
[     5.289] (II) intel(0): Modeline "1920x1200"x0.0  154.00  1920 1968 2000 2080  1200 1203 1209 1235 +hsync -vsync (74.0 kHz eP)

Postup zprovoznění pod Linuxem

Po kalibraci pomoci ColorMunki Display v ArgyllCMS/DispcalGUI se zlepsi kontrast v tmavych tonech.

Poznámka

120 cd/cm2: Jas 38, kontrast 70
6500K: Custom color mode: R 98, G97, B 100
Gamma: 2.2
Sharpness: 50

Trvale svítící modrá POWER LED není na závadu, má naštěstí nízký jas.
OSD menu je chudé, ale víc není ani potřeba.
Backlight bleeding u fotek neřeším a u videa mi nepřijde nijak zásadně rušivý.
Monitor nebzučí a nebliká (i přesto že používá FRC) ani při stažení jasu.

Obrázky
