Intel Little Falls 2 BLKD945GCLF2

Podpora:	kompletní
Ovladač:	v jádře

Technické parametry

integrovaný procesor Intel Atom 330, frekvence 1,6 GHz, L2 Cache 2x512 KB, FSB 533 MHz, Silverthorne 45nm
čipová sada: Intel 945GC (ICH7) s aktivnim chlazenim
integrovaná LAN Realtek RTL8111B 10/100/1000 Mbit/s
1x DDR2 667/533 MHz slot, max 2GB
integrované grafické jádro: Intel GMA 950
integrovaná zvukovka: Realtek High Definition Audio
8x USB 2.0 (4 konektory vzadu na desce + 4 na vyvedeni)
1x IDE konektor
2x SATA konektory
1x PCI
1x Sériový port
1x Paralelní port
2x PS/2 pro klavesnici a mys
1x TV-out
Rozměry základní desky: mini-ITX

Identifikace pod Linuxem

lspci

00:00.0 Host bridge: Intel Corporation 945G/GZ/P/PL Express Memory Controller Hub (rev 02)
00:02.0 VGA compatible controller: Intel Corporation 945G/GZ Express Integrated Graphics Controller (rev 02)
00:1c.0 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 1 (rev 01)
00:1c.2 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 3 (rev 01)
00:1c.3 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 4 (rev 01)
00:1d.0 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #1 (rev 01)
00:1d.1 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #2 (rev 01)
00:1d.2 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #3 (rev 01)
00:1d.3 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #4 (rev 01)
00:1d.7 USB Controller: Intel Corporation 82801G (ICH7 Family) USB2 EHCI Controller (rev 01)
00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev e1)
00:1f.0 ISA bridge: Intel Corporation 82801GB/GR (ICH7 Family) LPC Interface Bridge (rev 01)
00:1f.1 IDE interface: Intel Corporation 82801G (ICH7 Family) IDE Controller (rev 01)
00:1f.2 IDE interface: Intel Corporation 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller IDE (rev 01)
00:1f.3 SMBus: Intel Corporation 82801G (ICH7 Family) SMBus Controller (rev 01)
01:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168B PCI Express Gigabit Ethernet controller (rev 02)

cat /proc/cpuinfo

processor       : 0
vendor_id       : GenuineIntel
cpu family      : 6
model           : 28
model name      : Intel(R) Atom(TM) CPU  330   @ 1.60GHz
stepping        : 2
cpu MHz         : 1596.111
cache size      : 512 KB
physical id     : 0
siblings        : 4
core id         : 0
cpu cores       : 2
fdiv_bug        : no
hlt_bug         : no
f00f_bug        : no
coma_bug        : no
fpu             : yes
fpu_exception   : yes
cpuid level     : 10
wp              : yes
flags           : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe nx lm constant_tsc arch_perfmon pebs bts pni monitor ds_cpl tm2 ssse3 cx16 xtpr lahf_lm
bogomips        : 3195.29
clflush size    : 64

processor       : 1
vendor_id       : GenuineIntel
cpu family      : 6
model           : 28
model name      : Intel(R) Atom(TM) CPU  330   @ 1.60GHz
stepping        : 2
cpu MHz         : 1596.111
cache size      : 512 KB
physical id     : 0
siblings        : 4
core id         : 0
cpu cores       : 2
fdiv_bug        : no
hlt_bug         : no
f00f_bug        : no
coma_bug        : no
fpu             : yes
fpu_exception   : yes
cpuid level     : 10
wp              : yes
flags           : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe nx lm constant_tsc arch_perfmon pebs bts pni monitor ds_cpl tm2 ssse3 cx16 xtpr lahf_lm
bogomips        : 3192.17
clflush size    : 64

processor       : 2
vendor_id       : GenuineIntel
cpu family      : 6
model           : 28
model name      : Intel(R) Atom(TM) CPU  330   @ 1.60GHz
stepping        : 2
cpu MHz         : 1596.111
cache size      : 512 KB
physical id     : 0
siblings        : 4
core id         : 1
cpu cores       : 2
fdiv_bug        : no
hlt_bug         : no
f00f_bug        : no
coma_bug        : no
fpu             : yes
fpu_exception   : yes
cpuid level     : 10
wp              : yes
flags           : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe nx lm constant_tsc arch_perfmon pebs bts pni monitor ds_cpl tm2 ssse3 cx16 xtpr lahf_lm
bogomips        : 2954.99
clflush size    : 64

processor       : 3
vendor_id       : GenuineIntel
cpu family      : 6
model           : 28
model name      : Intel(R) Atom(TM) CPU  330   @ 1.60GHz
stepping        : 2
cpu MHz         : 1596.111
cache size      : 512 KB
physical id     : 0
siblings        : 4
core id         : 1
cpu cores       : 2
fdiv_bug        : no
hlt_bug         : no
f00f_bug        : no
coma_bug        : no
fpu             : yes
fpu_exception   : yes
cpuid level     : 10
wp              : yes
flags           : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe nx lm constant_tsc arch_perfmon pebs bts pni monitor ds_cpl tm2 ssse3 cx16 xtpr lahf_lm
bogomips        : 3192.23
clflush size    : 64

Postup zprovoznění pod Linuxem

Vše funguje bez problému až na síťovku, kde se musí stáhnout ovladač z realteku a zablacklistovat původní 8169.

Poznámka

Totožná s Intel Little Falls BLKD945GCLF až na procesor, síťovku, TV-Out a o 2 USB více.

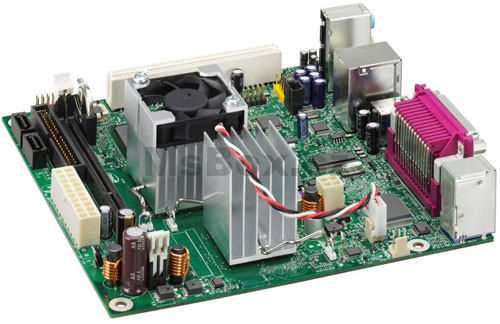

Obrázky
