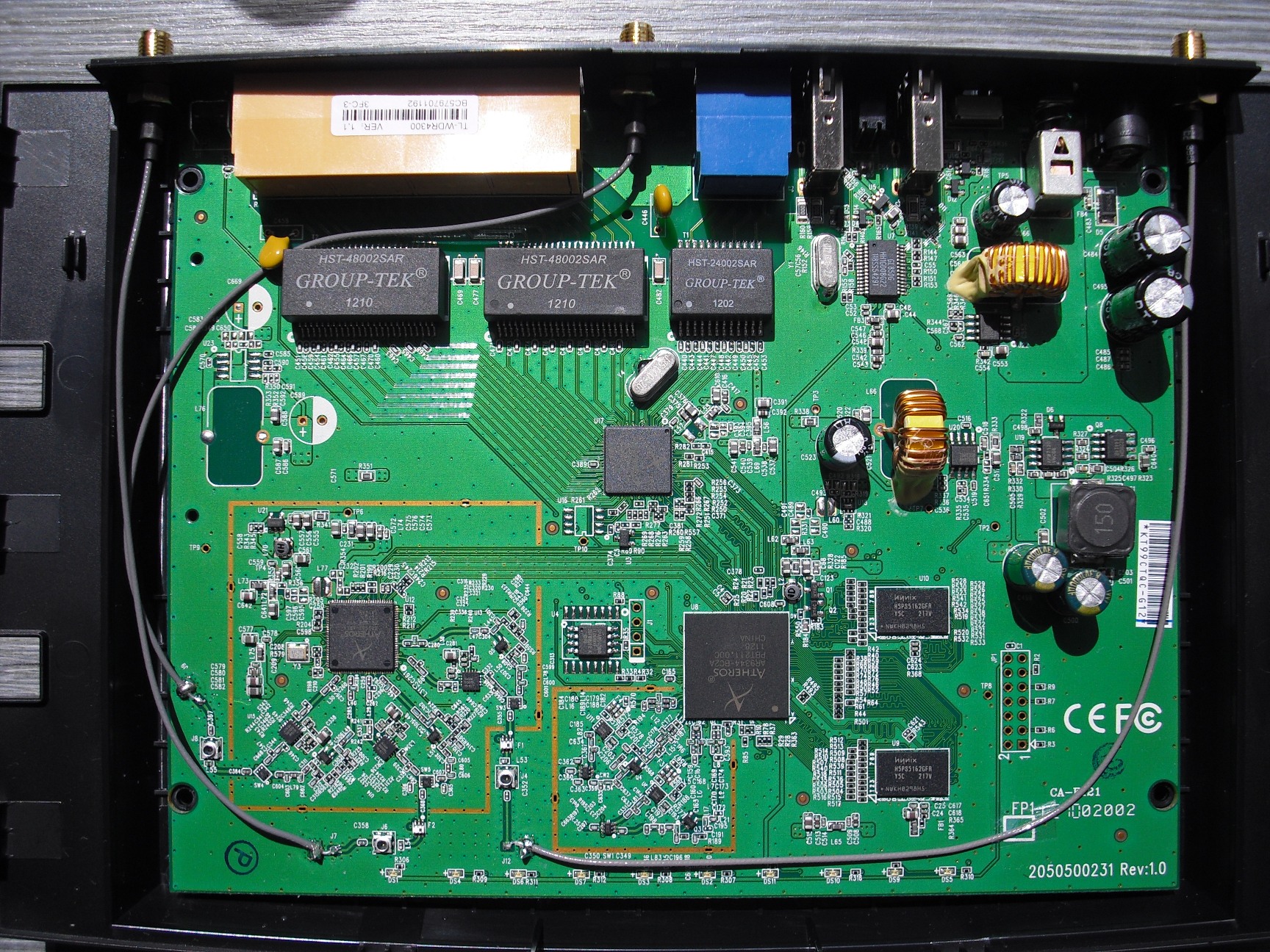

TP-LINK TL-WDR4300

Technické parametry

  • CPU: Atheros AR9344@560MHz
  • FLASH: 8MB
  • RAM: 128MB
  • WIFI: Atheros AR9340 2.4ghz 802.11bgn, Atheros AR9580 5ghz 802.11agn
  • ETHERNET: Atheros AR8327N Gigabit Switch
  • USB: 2x2.0

Identifikace pod Linuxem

Cpuinfo:

system type		: Atheros AR9344 rev 2
machine			: TP-LINK TL-WDR4300
processor		: 0
cpu model		: MIPS 74Kc V4.12
BogoMIPS		: 278.93
wait instruction	: yes
microsecond timers	: yes
tlb_entries		: 32
extra interrupt vector	: yes
hardware watchpoint	: yes, count: 4, address/irw mask: [0x0000, 0x0e80, 0x0080, 0x0828]
ASEs implemented	: mips16
shadow register sets	: 1
kscratch registers	: 0
core			: 0
VCED exceptions		: not available
VCEI exceptions		: not available

Meminfo:

MemTotal:         126656 kB
MemFree:          105684 kB
Buffers:            1464 kB
Cached:             6536 kB
SwapCached:            0 kB
Active:             5896 kB
Inactive:           4092 kB
Active(anon):       2104 kB
Inactive(anon):       64 kB
Active(file):       3792 kB
Inactive(file):     4028 kB
Unevictable:           0 kB
Mlocked:               0 kB
SwapTotal:             0 kB
SwapFree:              0 kB
Dirty:                 0 kB
Writeback:             0 kB
AnonPages:          2008 kB
Mapped:             1568 kB
Shmem:               180 kB
Slab:               7480 kB
SReclaimable:       1388 kB
SUnreclaim:         6092 kB
KernelStack:         352 kB
PageTables:          332 kB
NFS_Unstable:          0 kB
Bounce:                0 kB
WritebackTmp:          0 kB
CommitLimit:       63328 kB
Committed_AS:       6140 kB
VmallocTotal:    1048372 kB
VmallocUsed:         584 kB
VmallocChunk:    1030328 kB

Kernel log:

[    0.000000] Linux version 3.3.8 (openwrt@huchra) (gcc version 4.6.3 20120201 (prerelease) (Linaro GCC 4.6-2012.02) ) #1 Sat Jun 23 03:07:55 PDT 2012
[    0.000000] MyLoader: sysp=4b1bf7b5, boardp=9002c600, parts=6bde8914
[    0.000000] bootconsole [early0] enabled
[    0.000000] CPU revision is: 0001974c (MIPS 74Kc)
[    0.000000] SoC: Atheros AR9344 rev 2
[    0.000000] Clocks: CPU:560.000MHz, DDR:480.000MHz, AHB:240.000MHz, Ref:40.000MHz
[    0.000000] Determined physical RAM map:
[    0.000000]  memory: 08000000 @ 00000000 (usable)
[    0.000000] Initrd not found or empty - disabling initrd
[    0.000000] Zone PFN ranges:
[    0.000000]   Normal   0x00000000 -> 0x00008000
[    0.000000] Movable zone start PFN for each node
[    0.000000] Early memory PFN ranges
[    0.000000]     0: 0x00000000 -> 0x00008000
[    0.000000] On node 0 totalpages: 32768
[    0.000000] free_area_init_node: node 0, pgdat 80316490, node_mem_map 81000000
[    0.000000]   Normal zone: 256 pages used for memmap
[    0.000000]   Normal zone: 0 pages reserved
[    0.000000]   Normal zone: 32512 pages, LIFO batch:7
[    0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[    0.000000] pcpu-alloc: [0] 0
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 32512
[    0.000000] Kernel command line:  board=TL-WDR4300 console=ttyS0,115200 rootfstype=squashfs,jffs2 noinitrd
[    0.000000] PID hash table entries: 512 (order: -1, 2048 bytes)
[    0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
[    0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[    0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[    0.000000] Writing ErrCtl register=00000000
[    0.000000] Readback ErrCtl register=00000000
[    0.000000] Memory: 126452k/131072k available (2202k kernel code, 4620k reserved, 576k data, 204k init, 0k highmem)
[    0.000000] SLUB: Genslabs=9, HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.000000] NR_IRQS:48
[    0.000000] Calibrating delay loop... 278.93 BogoMIPS (lpj=1394688)
[    0.070000] pid_max: default: 32768 minimum: 301
[    0.070000] Mount-cache hash table entries: 512
[    0.080000] NET: Registered protocol family 16
[    0.080000] gpiochip_add: registered GPIOs 0 to 22 on device: ath79
[    0.090000] MIPS: machine is TP-LINK TL-WDR4300
[    0.090000] registering PCI controller with io_map_base unset
[    0.300000] bio: create slab <bio-0> at 0
[    0.310000] PCI host bridge to bus 0000:00
[    0.310000] pci_bus 0000:00: root bus resource [mem 0x10000000-0x17ffffff]
[    0.320000] pci_bus 0000:00: root bus resource [io  0x0000]
[    0.320000] pci 0000:00:00.0: [168c:0033] type 0 class 0x000280
[    0.320000] pci 0000:00:00.0: invalid calibration data
[    0.330000] pci 0000:00:00.0: reg 10: [mem 0x00000000-0x0001ffff 64bit]
[    0.330000] pci 0000:00:00.0: reg 30: [mem 0x00000000-0x0000ffff pref]
[    0.330000] pci 0000:00:00.0: supports D1
[    0.330000] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
[    0.330000] pci 0000:00:00.0: BAR 0: assigned [mem 0x10000000-0x1001ffff 64bit]
[    0.330000] pci 0000:00:00.0: BAR 6: assigned [mem 0x10020000-0x1002ffff pref]
[    0.340000] pci 0000:00:00.0: using irq 40 for pin 1
[    0.340000] Switching to clocksource MIPS
[    0.350000] NET: Registered protocol family 2
[    0.350000] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.350000] TCP established hash table entries: 4096 (order: 3, 32768 bytes)
[    0.360000] TCP bind hash table entries: 4096 (order: 2, 16384 bytes)
[    0.360000] TCP: Hash tables configured (established 4096 bind 4096)
[    0.370000] TCP reno registered
[    0.370000] UDP hash table entries: 256 (order: 0, 4096 bytes)
[    0.380000] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[    0.380000] NET: Registered protocol family 1
[    0.390000] PCI: CLS 0 bytes, default 32
[    0.400000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.410000] JFFS2 version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[    0.420000] msgmni has been set to 246
[    0.420000] io scheduler noop registered
[    0.430000] io scheduler deadline registered (default)
[    0.430000] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[    0.460000] serial8250.0: ttyS0 at MMIO 0x18020000 (irq = 11) is a 16550A
[    0.470000] console [ttyS0] enabled, bootconsole disabled
[    0.480000] m25p80 spi0.0: found s25fl064k, expected m25p80
[    0.490000] m25p80 spi0.0: s25fl064k (8192 Kbytes)
[    0.490000] 5 tp-link partitions found on MTD device spi0.0
[    0.500000] Creating 5 MTD partitions on "spi0.0":
[    0.500000] 0x000000000000-0x000000020000 : "u-boot"
[    0.510000] 0x000000020000-0x00000011b1b0 : "kernel"
[    0.510000] mtd: partition "kernel" must either start or end on erase block boundary or be smaller than an erase block -- forcing read-only
[    0.530000] 0x00000011b1b0-0x0000007f0000 : "rootfs"
[    0.530000] mtd: partition "rootfs" must either start or end on erase block boundary or be smaller than an erase block -- forcing read-only
[    0.550000] mtd: partition "rootfs" set to be root filesystem
[    0.550000] mtd: partition "rootfs_data" created automatically, ofs=290000, len=560000
[    0.560000] 0x000000290000-0x0000007f0000 : "rootfs_data"
[    0.570000] 0x0000007f0000-0x000000800000 : "art"
[    0.580000] 0x000000020000-0x0000007f0000 : "firmware"
[    0.710000] ag71xx_mdio: probed
[    0.720000] eth0: Atheros AG71xx at 0xb9000000, irq 4
[    1.290000] eth0: Atheros AR8327 switch driver attached.
[    1.440000] ag71xx ag71xx.0: eth0: connected to PHY at ag71xx-mdio.0:00 [uid=004dd033, driver=Atheros AR8216/AR8236/AR8316]
[    1.460000] TCP westwood registered
[    1.460000] NET: Registered protocol family 17
[    1.460000] Bridge firewalling registered
[    1.470000] 8021q: 802.1Q VLAN Support v1.8
[    1.480000] VFS: Mounted root (squashfs filesystem) readonly on device 31:2.
[    1.490000] Freeing unused kernel memory: 204k freed
[    3.020000] Registered led device: tp-link:blue:qss
[    3.020000] Registered led device: tp-link:blue:system
[    3.020000] Registered led device: tp-link:green:usb1
[    3.020000] Registered led device: tp-link:green:usb2
[    3.020000] Registered led device: tp-link:blue:wlan2g
[    4.440000] eth0: link up (1000Mbps/Full duplex)
[    6.300000] JFFS2 notice: (459) jffs2_build_xattr_subsystem: complete building xattr subsystem, 1 of xdatum (1 unchecked, 0 orphan) and 11 of xref (0 dead, 4 orphan) found.
[    6.470000] eth0: link down
[    7.480000] Compat-wireless backport release: compat-wireless-2012-06-14
[    7.490000] Backport based on wireless-testing.git master-2012-06-14
[    7.500000] compat.git: wireless-testing.git
[    7.620000] cfg80211: Calling CRDA to update world regulatory domain
[    7.620000] cfg80211: World regulatory domain updated:
[    7.630000] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp)
[    7.640000] cfg80211:   (2402000 KHz - 2472000 KHz @ 40000 KHz), (300 mBi, 2000 mBm)
[    7.640000] cfg80211:   (2457000 KHz - 2482000 KHz @ 20000 KHz), (300 mBi, 2000 mBm)
[    7.650000] cfg80211:   (2474000 KHz - 2494000 KHz @ 20000 KHz), (300 mBi, 2000 mBm)
[    7.660000] cfg80211:   (5170000 KHz - 5250000 KHz @ 40000 KHz), (300 mBi, 2000 mBm)
[    7.670000] cfg80211:   (5735000 KHz - 5835000 KHz @ 40000 KHz), (300 mBi, 2000 mBm)
[    7.830000] usbcore: registered new interface driver usbfs
[    7.830000] usbcore: registered new interface driver hub
[    7.840000] usbcore: registered new device driver usb
[    8.200000] ath: EEPROM regdomain: 0x0
[    8.200000] ath: EEPROM indicates default country code should be used
[    8.200000] ath: doing EEPROM country->regdmn map search
[    8.200000] ath: country maps to regdmn code: 0x3a
[    8.200000] ath: Country alpha2 being used: US
[    8.200000] ath: Regpair used: 0x3a
[    8.200000] ieee80211 phy0: Selected rate control algorithm 'minstrel_ht'
[    8.200000] Registered led device: ath9k-phy0
[    8.200000] ieee80211 phy0: Atheros AR9340 Rev:0 mem=0xb8100000, irq=47
[    8.210000] PCI: Enabling device 0000:00:00.0 (0000 -> 0002)
[    8.220000] ath: EEPROM regdomain: 0x0
[    8.220000] ath: EEPROM indicates default country code should be used
[    8.220000] ath: doing EEPROM country->regdmn map search
[    8.220000] ath: country maps to regdmn code: 0x3a
[    8.220000] ath: Country alpha2 being used: US
[    8.220000] ath: Regpair used: 0x3a
[    8.220000] ieee80211 phy1: Selected rate control algorithm 'minstrel_ht'
[    8.220000] Registered led device: ath9k-phy1
[    8.220000] ieee80211 phy1: Atheros AR9300 Rev:4 mem=0xb0000000, irq=40
[    8.230000] cfg80211: Calling CRDA for country: US
[    8.240000] cfg80211: Regulatory domain changed to country: US
[    8.240000] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp)
[    8.250000] cfg80211:   (2402000 KHz - 2472000 KHz @ 40000 KHz), (300 mBi, 2700 mBm)
[    8.260000] cfg80211:   (5170000 KHz - 5250000 KHz @ 40000 KHz), (300 mBi, 1700 mBm)
[    8.270000] cfg80211:   (5250000 KHz - 5330000 KHz @ 40000 KHz), (300 mBi, 2000 mBm)
[    8.280000] cfg80211:   (5490000 KHz - 5600000 KHz @ 40000 KHz), (300 mBi, 2000 mBm)
[    8.280000] cfg80211:   (5650000 KHz - 5710000 KHz @ 40000 KHz), (300 mBi, 2000 mBm)
[    8.290000] cfg80211:   (5735000 KHz - 5835000 KHz @ 40000 KHz), (300 mBi, 3000 mBm)
[    8.320000] PPP generic driver version 2.4.2
[    8.460000] ip_tables: (C) 2000-2006 Netfilter Core Team
[    8.540000] NET: Registered protocol family 24
[    8.560000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    8.570000] ehci-platform ehci-platform: Generic Platform EHCI Controller
[    8.570000] ehci-platform ehci-platform: new USB bus registered, assigned bus number 1
[    8.610000] ehci-platform ehci-platform: irq 3, io mem 0x1b000000
[    8.630000] ehci-platform ehci-platform: USB 2.0 started, EHCI 1.00
[    8.630000] hub 1-0:1.0: USB hub found
[    8.640000] hub 1-0:1.0: 1 port detected
[    8.660000] nf_conntrack version 0.5.0 (1979 buckets, 7916 max)
[    8.840000] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    8.980000] usb 1-1: new high-speed USB device number 2 using ehci-platform
[    9.130000] hub 1-1:1.0: USB hub found
[    9.130000] hub 1-1:1.0: 4 ports detected
[   11.450000] device eth0.1 entered promiscuous mode
[   11.460000] device eth0 entered promiscuous mode
[   11.480000] eth0: link up (1000Mbps/Full duplex)
[   11.480000] br-lan: port 1(eth0.1) entered forwarding state
[   11.490000] br-lan: port 1(eth0.1) entered forwarding state
[   13.300000] cfg80211: Calling CRDA for country: CZ
[   13.300000] cfg80211: Regulatory domain changed to country: CZ
[   13.310000] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp)
[   13.320000] cfg80211:   (2400000 KHz - 2483000 KHz @ 40000 KHz), (N/A, 2000 mBm)
[   13.320000] cfg80211:   (5150000 KHz - 5250000 KHz @ 40000 KHz), (N/A, 2300 mBm)
[   13.330000] cfg80211:   (5250000 KHz - 5350000 KHz @ 40000 KHz), (N/A, 2000 mBm)
[   13.340000] cfg80211:   (5470000 KHz - 5725000 KHz @ 40000 KHz), (N/A, 2700 mBm)
[   13.490000] br-lan: port 1(eth0.1) entered forwarding state
[   15.420000] device wlan0 entered promiscuous mode
[   15.940000] br-lan: port 2(wlan0) entered forwarding state
[   15.950000] br-lan: port 2(wlan0) entered forwarding state
[   17.950000] br-lan: port 2(wlan0) entered forwarding state
[   18.580000] device wlan1 entered promiscuous mode
[   18.830000] br-lan: port 3(wlan1) entered forwarding state
[   18.830000] br-lan: port 3(wlan1) entered forwarding state
[   20.830000] br-lan: port 3(wlan1) entered forwarding state
[  109.590000] device wlan0 left promiscuous mode
[  109.590000] br-lan: port 2(wlan0) entered disabled state
[  110.200000] device wlan1 left promiscuous mode
[  110.200000] br-lan: port 3(wlan1) entered disabled state
[  110.910000] device wlan0 entered promiscuous mode
[  111.170000] br-lan: port 2(wlan0) entered forwarding state
[  111.170000] br-lan: port 2(wlan0) entered forwarding state
[  113.170000] br-lan: port 2(wlan0) entered forwarding state
[  113.800000] device wlan1 entered promiscuous mode
[  114.080000] br-lan: port 3(wlan1) entered forwarding state
[  114.080000] br-lan: port 3(wlan1) entered forwarding state
[  116.080000] br-lan: port 3(wlan1) entered forwarding state

Postup zprovoznění pod Linuxem

Připojíme PC nastavíme aby síťová karta přebírala nastavení z DHCP serveru a do prohlížeče napíšeme 192.168.0.1 - user: admin a heslo je admin.

POZOR tento router má výchozí IP 192.168.0.1 oproti zvyklostem u tp-linku 192.168.1.1 .

U tohoto routeru můžou běžet oboje wifi (2,4G, 5G) naráz

V USB portech nejde pod linuxem použít tiskárna s originál FW - pod windows funguje ovšem musí se nainstalovat ovladač který vytvoří virtuální USB port.

Proč proboha nemůžou použít ipp://.....nebo něco normálního aby se to dalo použít pod linuxem?

Openwrt

Na router se dá nahrát Openwrt viz: Wiki Openwrt TP-Link TL-WDR4300 už ho tam mám a zdá se že to chodí.....

Poznámka

V routeru jsou použité čipy:

ATHEROS
AR9344-BC2A
AR9580-AR1A
AR8327N-AL1A

2x H5PS5162GFA

Související dokumenty

Originál stránky TP-LINKu TL-WDR4300 (externí dokument)
Wiki Openwrt TP-LINK TL-WDR4300 (externí dokument)
Downloads › others › eko › BrainSlayer-V24-preSP2 › 2012 › 10-12-12-r20119-testing › tplink_tl-wdr4300v1 (externí dokument)
Testovací verze DD-WDR pro router.

Obrázky

TP-LINK TL-WDR4300, obrázek 1

Dokument vytvořil: Petr Šobáň, 15.6.2012 16:54 | Poslední úprava: Petr Šobáň, 18.10.2012 00:26 | Historie změn | Zobrazeno: 3748×

Tiskni Sdílej: Linkuj Jaggni to Vybrali.sme.sk Google Del.icio.us Facebook

ISSN 1214-1267   www.czech-server.cz
© 1999-2015 Nitemedia s. r. o. Všechna práva vyhrazena.
