ASUS AT5NM10-I

Podpora:

kompletní

Technické parametry

ITX, Intel Atom D510 (existuje i verze s D525), pasivně chlazený

ASUSTeK AT5NM10-I

Identifikace pod Linuxem

lspci

# lspci
00:00.0 Host bridge: Intel Corporation Pineview DMI Bridge (rev 02)
00:02.0 VGA compatible controller: Intel Corporation Pineview Integrated Graphics Controller (rev 02)
00:02.1 Display controller: Intel Corporation Pineview Integrated Graphics Controller (rev 02)
00:1b.0 Audio device: Intel Corporation 82801G (ICH7 Family) High Definition Audio Controller (rev 02)
00:1c.0 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 1 (rev 02)
00:1c.1 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 2 (rev 02)
00:1d.0 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #1 (rev 02)
00:1d.1 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #2 (rev 02)
00:1d.2 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #3 (rev 02)
00:1d.3 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #4 (rev 02)
00:1d.7 USB Controller: Intel Corporation 82801G (ICH7 Family) USB2 EHCI Controller (rev 02)
00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev e2)
00:1f.0 ISA bridge: Intel Corporation Tigerpoint LPC Controller (rev 02)
00:1f.2 IDE interface: Intel Corporation 82801GB/GR/GH (ICH7 Family) SATA IDE Controller (rev 02)
00:1f.3 SMBus: Intel Corporation 82801G (ICH7 Family) SMBus Controller (rev 02)
01:00.0 Ethernet controller: Sundance Technology Inc / IC Plus Corp IP1000 Family Gigabit Ethernet (rev 41)
02:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168B PCI Express Gigabit Ethernet controller (rev 03)

hwinfo

# hwinfo --short
cpu:
                       Intel(R) Atom(TM) CPU D510   @ 1.66GHz, 1680 MHz
                       Intel(R) Atom(TM) CPU D510   @ 1.66GHz, 1680 MHz
                       Intel(R) Atom(TM) CPU D510   @ 1.66GHz, 1680 MHz
                       Intel(R) Atom(TM) CPU D510   @ 1.66GHz, 1680 MHz
mouse:
  /dev/input/mice      Macintosh mouse button emulation
graphics card:
                       Intel Pineview Integrated Graphics Controller
                       Intel Pineview Integrated Graphics Controller
sound:
                       Intel 82801G (ICH7 Family) High Definition Audio Controller
storage:
                       Intel 82801GB/GR/GH (ICH7 Family) SATA IDE Controller
network:
  eth0                 Realtek RTL8111/8168B PCI Express Gigabit Ethernet controller
  eth1                 ASUSTeK NX1101
  eth2                 Linksys USB200M 100baseTX Adapter
network interface:
  lo                   Loopback network interface
  eth0                 Ethernet network interface
  eth1                 Ethernet network interface
  eth2                 Ethernet network interface
disk:
  /dev/sda             Patriot Memory
partition:
  /dev/sda1            Partition
usb controller:
                       Intel 82801G (ICH7 Family) USB UHCI Controller #1
                       Intel 82801G (ICH7 Family) USB UHCI Controller #2
                       Intel 82801G (ICH7 Family) USB UHCI Controller #3
                       Intel 82801G (ICH7 Family) USB UHCI Controller #4
                       Intel 82801G (ICH7 Family) USB2 EHCI Controller
bios:
                       BIOS
bridge:
                       Intel Pineview DMI Bridge
                       Intel 82801G (ICH7 Family) PCI Express Port 1
                       Intel 82801G (ICH7 Family) PCI Express Port 2
                       Intel 82801 Mobile PCI Bridge
                       Intel Tigerpoint LPC Controller
hub:
                       Linux 2.6.33-ARCH ehci_hcd EHCI Host Controller
                       Linux 2.6.33-ARCH uhci_hcd UHCI Host Controller
                       Linux 2.6.33-ARCH uhci_hcd UHCI Host Controller
                       Linux 2.6.33-ARCH uhci_hcd UHCI Host Controller
                       Linux 2.6.33-ARCH uhci_hcd UHCI Host Controller
memory:
                       Main Memory
unknown:
                       FPU
                       DMA controller
                       PIC
                       Timer
                       Keyboard controller
  /dev/lp0             Parallel controller
                       Intel 82801G (ICH7 Family) SMBus Controller
                       Serial controller

lshw

# lshw -short
H/W path       Device     Class       Description
=================================================
                          system      System Product Name
/0                        bus         AT5NM10-I
/0/0                      memory      64KiB BIOS
/0/4                      processor   Intel(R) Atom(TM) CPU D510   @ 1.66GHz
/0/4/5                    memory      48KiB L1 cache
/0/4/6                    memory      1MiB L2 cache
/0/24                     memory      4GiB System Memory
/0/24/0                   memory      2GiB SODIMM DDR2 Synchronous 800 MHz (1.2 ns)
/0/24/1                   memory      2GiB SODIMM DDR2 Synchronous 800 MHz (1.2 ns)
/0/100                    bridge      Pineview DMI Bridge
/0/100/2                  display     Pineview Integrated Graphics Controller
/0/100/2.1                display     Pineview Integrated Graphics Controller
/0/100/1b                 multimedia  82801G (ICH7 Family) High Definition Audio Controller
/0/100/1c                 bridge      82801G (ICH7 Family) PCI Express Port 1
/0/100/1c.1               bridge      82801G (ICH7 Family) PCI Express Port 2
/0/100/1c.1/0  eth0       network     RTL8111/8168B PCI Express Gigabit Ethernet controller
/0/100/1d                 bus         82801G (ICH7 Family) USB UHCI Controller #1
/0/100/1d.1               bus         82801G (ICH7 Family) USB UHCI Controller #2
/0/100/1d.2               bus         82801G (ICH7 Family) USB UHCI Controller #3
/0/100/1d.3               bus         82801G (ICH7 Family) USB UHCI Controller #4
/0/100/1d.7               bus         82801G (ICH7 Family) USB2 EHCI Controller
/0/100/1e                 bridge      82801 Mobile PCI Bridge
/0/100/1e/0    eth1       network     IP1000 Family Gigabit Ethernet
/0/100/1f                 bridge      Tigerpoint LPC Controller
/0/100/1f.2               storage     82801GB/GR/GH (ICH7 Family) SATA IDE Controller
/0/100/1f.3               bus         82801G (ICH7 Family) SMBus Controller
/0/1           scsi2      storage
/0/1/0.0.0     /dev/sda   disk        8015MB SCSI Disk
/0/1/0.0.0/1   /dev/sda1  volume      7640MiB Linux filesystem partition
/1             eth2       network     Ethernet interface

cpuinfo

# cat /proc/cpuinfo
processor       : 0
vendor_id       : GenuineIntel
cpu family      : 6
model           : 28
model name      : Intel(R) Atom(TM) CPU D510   @ 1.66GHz
stepping        : 10
cpu MHz         : 1682.380
cache size      : 512 KB
physical id     : 0
siblings        : 4
core id         : 0
cpu cores       : 2
apicid          : 0
initial apicid  : 0
fpu             : yes
fpu_exception   : yes
cpuid level     : 10
wp              : yes
flags           : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx lm constant_tsc arch_perfmon pebs bts rep_good aperfmperf pni dtes64 monitor ds_cpl tm2 ssse3 cx16 xtpr pdcm movbe lahf_lm
bogomips        : 3366.95
clflush size    : 64
cache_alignment : 64
address sizes   : 36 bits physical, 48 bits virtual
power management:

processor       : 1
vendor_id       : GenuineIntel
cpu family      : 6
model           : 28
model name      : Intel(R) Atom(TM) CPU D510   @ 1.66GHz
stepping        : 10
cpu MHz         : 1682.380
cache size      : 512 KB
physical id     : 0
siblings        : 4
core id         : 1
cpu cores       : 2
apicid          : 2
initial apicid  : 2
fpu             : yes
fpu_exception   : yes
cpuid level     : 10
wp              : yes
flags           : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx lm constant_tsc arch_perfmon pebs bts rep_good aperfmperf pni dtes64 monitor ds_cpl tm2 ssse3 cx16 xtpr pdcm movbe lahf_lm
bogomips        : 3366.97
clflush size    : 64
cache_alignment : 64
address sizes   : 36 bits physical, 48 bits virtual
power management:

processor       : 2
vendor_id       : GenuineIntel
cpu family      : 6
model           : 28
model name      : Intel(R) Atom(TM) CPU D510   @ 1.66GHz
stepping        : 10
cpu MHz         : 1682.380
cache size      : 512 KB
physical id     : 0
siblings        : 4
core id         : 0
cpu cores       : 2
apicid          : 1
initial apicid  : 1
fpu             : yes
fpu_exception   : yes
cpuid level     : 10
wp              : yes
flags           : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx lm constant_tsc arch_perfmon pebs bts rep_good aperfmperf pni dtes64 monitor ds_cpl tm2 ssse3 cx16 xtpr pdcm movbe lahf_lm
bogomips        : 3366.93
clflush size    : 64
cache_alignment : 64
address sizes   : 36 bits physical, 48 bits virtual
power management:

processor       : 3
vendor_id       : GenuineIntel
cpu family      : 6
model           : 28
model name      : Intel(R) Atom(TM) CPU D510   @ 1.66GHz
stepping        : 10
cpu MHz         : 1682.380
cache size      : 512 KB
physical id     : 0
siblings        : 4
core id         : 1
cpu cores       : 2
apicid          : 3
initial apicid  : 3
fpu             : yes
fpu_exception   : yes
cpuid level     : 10
wp              : yes
flags           : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx lm constant_tsc arch_perfmon pebs bts rep_good aperfmperf pni dtes64 monitor ds_cpl tm2 ssse3 cx16 xtpr pdcm movbe lahf_lm
bogomips        : 3366.97
clflush size    : 64
cache_alignment : 64
address sizes   : 36 bits physical, 48 bits virtual
power management:

Postup zprovoznění pod Linuxem

Instalován je 64-bit Arch linux s bezproblémovou detekcí veškerého HW.

Jediný problém, který jsem zaznamenal, je regulace otáček ventilátoru ve skříni. Čtení otáček pomocí lm_sensors je evidentně funkční, ale pwmconfig říká There are no pwm-capable sensor modules installed.

Poznámka

Stroj hodlám požívat jako router a file/web/ntp/dns/dhcp/... server, proto nejsou připojeny žádné periferie, jen síťové kabely a USB flash disk se systémem. Později ještě přibudou dva 3,5" disky.

Vše je uloženo ve skříni INWIN BM639 s 80mm ventilátorem, který zatím nejsem schopný programově regulovat. Proto je trochu slyšet průtok vzduchu, ale díky tomu se teploty drží příjemně nízko (v místnosti je 23°C).

$ sensors
coretemp-isa-0000
Adapter: ISA adapter
Core 0:      +26.0°C  (crit = +100.0°C)

coretemp-isa-0001
Adapter: ISA adapter
Core 1:      +26.0°C  (crit = +100.0°C)

coretemp-isa-0002
Adapter: ISA adapter
Core 2:      +27.0°C  (crit = +100.0°C)

coretemp-isa-0003
Adapter: ISA adapter
Core 3:      +26.0°C  (crit = +100.0°C)

atk0110-acpi-0
Adapter: ACPI interface
Vcore Voltage:     +1.07 V  (min =  +0.85 V, max =  +1.60 V)
 +3.3 Voltage:     +3.23 V  (min =  +2.97 V, max =  +3.63 V)
 +5 Voltage:       +4.76 V  (min =  +4.50 V, max =  +5.50 V)
 +12 Voltage:     +12.16 V  (min = +10.20 V, max = +13.80 V)
CPU FAN Speed:    2311 RPM  (min =  600 RPM)
CHASSIS FAN Speed:   0 RPM  (min =  600 RPM)
CPU Temperature:   +29.0°C  (high = +60.0°C, crit = +95.0°C)
MB Temperature:    +32.0°C  (high = +45.0°C, crit = +75.0°C)

Celá sestava si v klidu řekne o 15-20W, během hodinové kompilace a komprese měřák ukázal max. 22W a teploty z coretemp nešly přes 33°C. Zajímavé však je, že vypnutá sestava trvale žere 18W, dalo by se říct, že výhodnější je stroj nevypínat :-)

Pokud by přece jen někdo chtěl opravdu pasivně chlazený stroj (nepočítám naprosto neslyšitelný 40mm ventilátor zdroje, který nelze vypnout) měl by se připravit na zhruba 56-60°C v klidu a až 75°C v zátěži. To už si myslím jsou hodnoty dost vysoké na server, který má běžet 24 hodin denně pokud možno navždy.

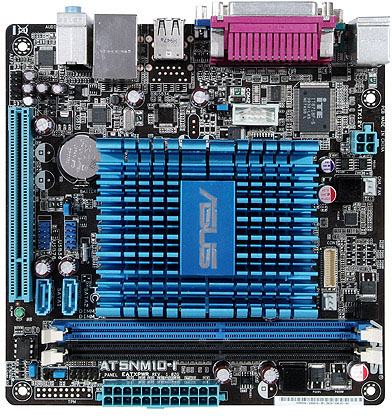

Obrázky

Dokument vytvořil: T.O.M., 18.4.2010 13:09 | Poslední úprava: ph0enix, 27.2.2011 15:08 | Další přispěvatelé: T.O.M. | Historie změn | Zobrazeno: 1727×
