Well I won't lie: quite a lot. This is a blogpost about an ANSI escape text user interface for a mobile phone ... made in the shell enhanced with elements from the object programming paradigm.

WTF? (or how did it start?)

It all started with a PXA272 SoC based mobile phone (Let's teach penguin how to become magician 1 2 3). The SoC is really buggy. Usually I've had only one way of the control: an USB device network. The problem is the PXA272 USB device controller is really buggy so the USB network crashed a lot. How can you reset the controller if the only access to the system is over the crashed controller? One way is to use the phone keyboard itself, unless it has only 10 buttons (most of them are unusable for "typing") and a touch screen? You need to make a menu then!

Usable alternatives

There isn't much and X windows server mostly keeps failing, so only a terminal application based menus are available. The most obvious use is a ncurses based dialog and it has been used as the first implementation. The problem with ncurses+dialog is the size of hundreds of kB and they require gpm for the pointing device support. The dialog has a big graphical overhead for 30x40 character display (for 8x8 font, we could use 4x6 fonts, but dialogs with them are an ugly thing).

The gpm had another problem with a correct support for the touchscreen's absolute position reports. This itself disqualifies the full use of the dialog and there is a problem with the switching between two focusable groups. There is not enough buttons. Problem with gpm disqualified the scriptable menu drawing utility gpm-root too.

Some "history" first

By using a dialog based menu I've realised an interesting fact. You can redirect output of any ncurses application (for example midnight commander) to any (even regular) file and later dump it back to terminal. So why should I use dialog and ncurses to draw an almost static UI when I can use a ansi escape dumpfile with highly compression ratio? Why do I even need to store a dumpfile when I can draw it dynamically? Why would I use this awesome interface to only reset an USB controller when I can build whole GUI with it?

The answer is here:

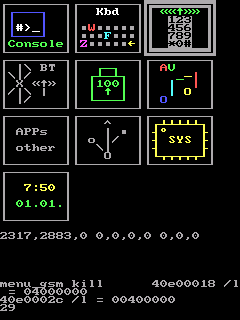

Almost everything in this version was hardcoded. Still, it already supported a reset of some controllers and a battery charging checks (first thing which dies with the undercharged battery is the USB device controller).

How to make a simple colored button

We gonna need a reference for ansi escape codes and some frame drawing characters. The wikipedia uses UTF-16, but the terminal uses UTF-8, we need to convert the values. The laziest way is to copypaste them from the wikipedia into your hexdump . You can store the following 3 bytes as a string for a symbolic naming. Using the native character should be possible (and the string will have only one quart length), but you may have problems with editing or parsing the source code and with debugging the shells without a valid unicode support. There shouldn't be problems with printing the string, so it should be safe, but still you really want to debug the string parsing functions in the shell source code?

c_form_h="\xe2\x94\x80"
c_form_v="\xe2\x94\x82"
c_form_tl="\xe2\x94\x8c"
c_form_tr="\xe2\x94\x90"
c_form_br="\xe2\x94\x98"
c_form_bl="\xe2\x94\x94"

Now we have the constant frame drawing symbols defined. Let's make more constant strings (readonly mode is enforced by the mind of a programmer, obviously):

c_form_h_arr="${c_form_h}"
c_form_h_arr="${c_form_h_arr}${c_form_h_arr}"
c_form_h_arr="${c_form_h_arr}${c_form_h_arr}"
c_form_h_arr="${c_form_h_arr}${c_form_h_arr}"
c_form_h_arr="${c_form_h_arr}${c_form_h_arr}"
c_form_h_arr="${c_form_h_arr}${c_form_h_arr}"
c_form_h_arr="${c_form_h_arr}${c_form_h_arr}"
c_form_h_arr="${c_form_h_arr}${c_form_h_arr}"

lazy to copypaste the constant string 2^n times. Some 10 lines of that should be enough for everybody (unless you want to fill 4k monitor with 4x6 font).

c_spaces=" "
c_spaces="${c_spaces}${c_spaces}"
c_spaces="${c_spaces}${c_spaces}"
c_spaces="${c_spaces}${c_spaces}"
c_spaces="${c_spaces}${c_spaces}"
c_spaces="${c_spaces}${c_spaces}"
c_spaces="${c_spaces}${c_spaces}"
c_spaces="${c_spaces}${c_spaces}"

same with spaces. Yeah and don't forget to use "{" and "}" or you gonna have the hell with a renaming. And now we can print a simple frame:

c_sizex=10
c_sizey=10
c_color="32;1"

echo -e "\x1b[${c_color}m${c_form_tl}${c_form_h_arr:0:$(((${c_sizex} - 2)*12))}${c_form_tr}"

i=1
while [ ${i} -lt $((${c_sizey}-1)) ] ; do
  echo -e "\x1b[${c_color}m${c_form_v}\x1b[0m${c_spaces:0:$((${c_sizey} - 2))}\x1b[${c_color}m${c_form_v}"
  i=$((${i}+1))
done

echo -e "\x1b[${c_color}m${c_form_bl}${c_form_h_arr:0:$(((${c_sizey} - 2)*12))}${c_form_br}"

I don't use printf as I've found inconsistencies between different shell implementations. Some may have problems with escaping the predefined strings. A raw unicode character could help, but the copying from the array is the place where an unicode unaware shell may differ from an unicode aware shell.

# xxx="╬"
# echo -n ${xxx} | xxd
00000000: e295 ac                                  ...
# echo ${#xxx}
1

And mine configuration of the busybox shell would count bytes, but I don't remember if I configured all parts of the system with the unicode support.

If we want to print the frame somewhere in the middle of the screen we need to add "cursor position set" ansi escape code for every line. We can use the code "CSI n ; m H" (there are multiple ways):

while [ ${i} -lt $((${c_sizey}-1)) ] ; do
  echo -e "\x1b[${c_row};${c_column}H\x1b[${c_color}m${c_form_v}\x1b[0m${c_spaces:0:$((${c_sizey} - 2))}\x1b[${c_color}m${c_form_v}"
  i=$((${i}+1))
done

BTW the values of c_row and c_column are counted from 1 (yum), but you can incerment them in the string with an embedded $(()) expression.

The CSI for the color settings can set different attributes, which may or may not work on your terminal emulator. For example: the one for the framebuffer in the kernel cannot blink, you would have to write some scheduled rewriting in the kernel driver, but most of framebuffer drivers can increase the intensity and X server terminal emulators can do anything.

Following versions

During the bugfixing I've started naming the versions by the letters of the greek alphabet. Let's see the β version:

Now the engine supported a directory based menu (and a "nice" hardcoded selection frame):

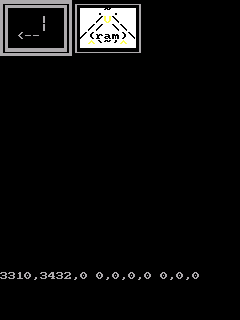

BTW I was able to chroot the whole system from an SD card into the RAM (because of my second crazy project).

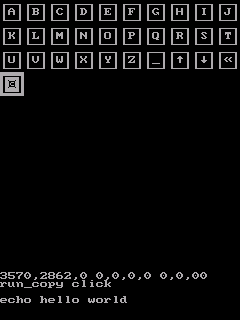

By abusing the loadkey database I was able to type a simple command and run it in the terminal (with only arrows, enter and 2 more keys).

echo -e "keycode 169 = F70\nstring F70 = \"${KEYSTRING}\"" | /usr/bin/loadkeys - > /dev/null

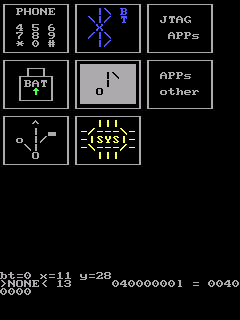

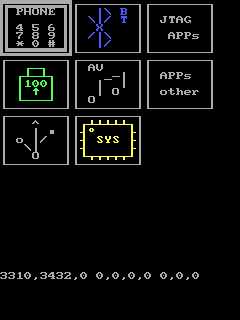

In the Delta version I've manually colored all icons with the ansi escape codes:

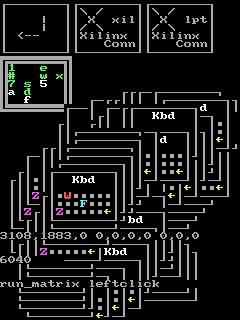

and in the Epsilon I've started to rewrite the engine (for the first time) for more flexibility. Here is what happens when you make movable "window" in a shell:

BTW the engine should be called "ever rewrite engine" as we will see but I called it "Failsafe" (the irony was intended, but it was more stable than Xorg by that time).

In the next part we will take a look on the basic data manipulation in a shell.

If you have found this idea funny or you want me to rewrite the engine in a more sane language, consider a donate to my BTC adress: 1CqzWKDLdcbjbzvzkrcP5bHsScjm5CwcjH or to my ETH adress: 0x1440d31eD70fc6b084c71f03590F6e1d121C919E
